PT-HDBT-1020CPD-TX – HDBaseT 3.0 USB-C KVM Transmitter: Unified Video, Data, and Power Extension for Professional AV Deployments
The PT-HDBT-1020CPD-TX transmitter integrates HDBaseT 3.0 technology to deliver uncompressed video, USB data, and Power Delivery over a single cable, supporting streamlined cable topology in meeting rooms, control centres, and hybrid workspaces. Its USB-C input accommodates modern laptops and devices, while an additional USB-A port enables user-side peripheral connectivity. The dedicated Power Delivery injection port supplies up to 100W to source devices, facilitating efficient charging and device operation. Professional-grade metal housing and mounting options ensure reliable installation in fixed AV environments. Compatibility with PT-HDBT-1020HU-RX and PT-HDBT-1020C-RX receivers supports flexible system design.

• 18Gbps 4K Video and HDCP 2.2: Supports HDMI 2.0 video signals up to 18Gbps, enabling transmission of 4K at 60Hz with 4:4:4 chroma subsampling. HDCP 2.2 compliance ensures secure content delivery for professional AV applications, including digital signage and conferencing systems.

• HDBaseT 3.0 Transmission up to 100m: Utilises HDBaseT 3.0 for full-bandwidth, uncompressed signal transmission. Delivers 4K 60Hz 4:4:4 up to 80 metres and 4K 60Hz 4:2:0 or 1080p up to 100 metres, supporting reliable long-distance extension in large meeting spaces or control rooms.

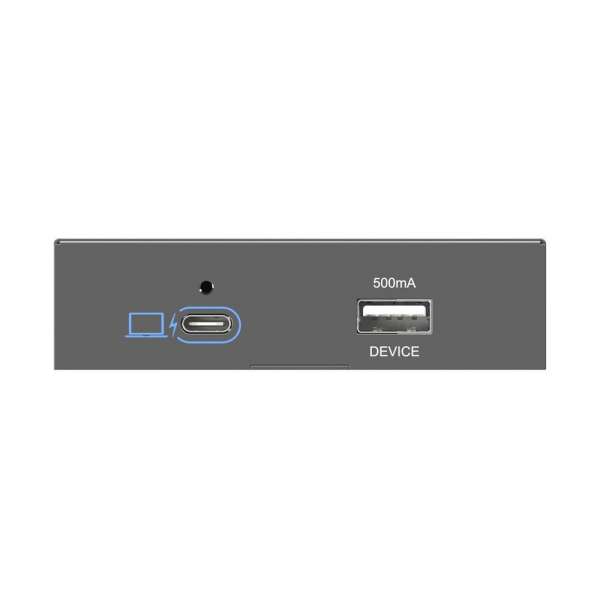

• USB-C and USB-A Connectivity: Provides a USB-C UFP (Upstream Facing Port) for combined video and USB 2.0 data from host devices. An additional USB-A port supports user-side peripherals at up to 480Mbps, enabling KVM functionality for interactive workspaces and collaborative environments.

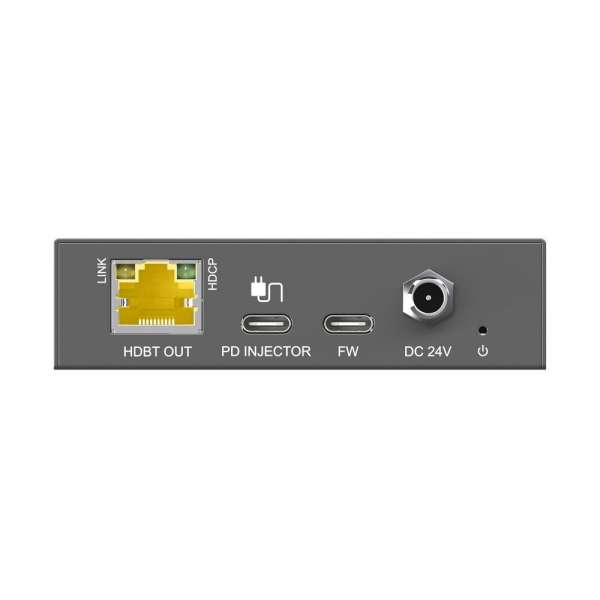

• 100W Power Delivery Injection: Features a dedicated Power Delivery injection port supplying up to 100W to connected USB-C source devices. This supports charging and stable operation for laptops or tablets during extended AV sessions, reducing the need for separate power supplies.

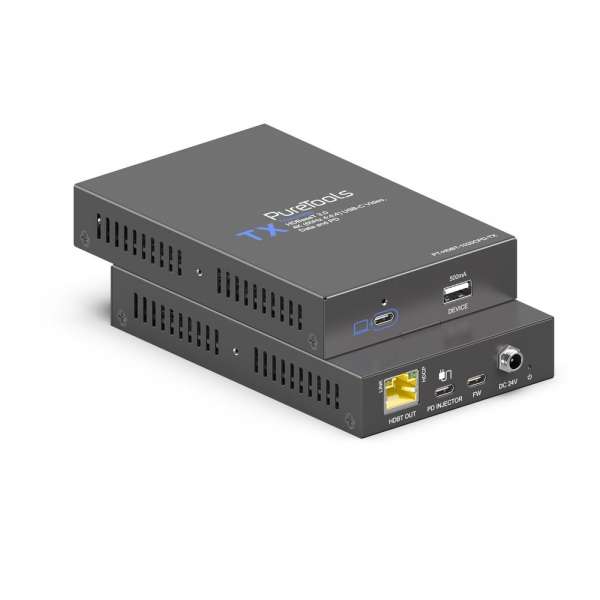

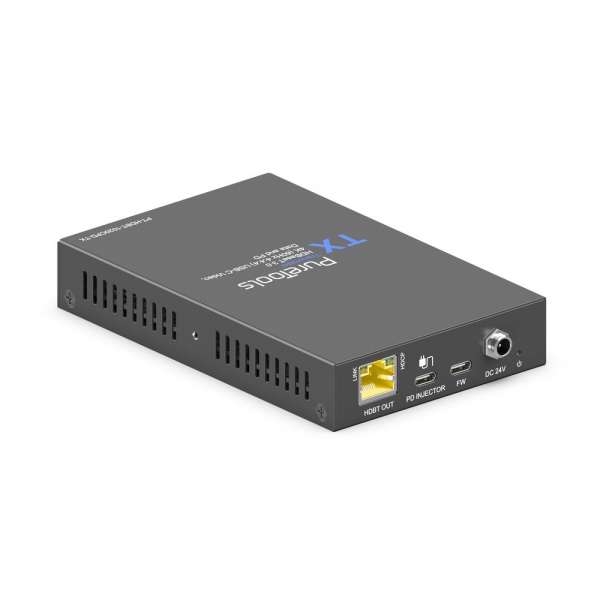

• Bi-directional 24–48V PoC and Metal Housing: Incorporates bi-directional Power over Cable (PoC) at 24–48V, facilitating flexible power sourcing between transmitter and receiver. The professional metal enclosure with mounting provisions ensures mechanical stability in fixed installations.

Comprehensive Extension for Unified AV Connectivity
By combining high-bandwidth video, USB data, and integrated power delivery within a single transmitter, the PT-HDBT-1020CPD-TX supports simplified infrastructure and reliable device interoperability. This unit provides a practical solution for AV professionals seeking secure, long-range KVM extension and centralised power management across diverse installation scenarios, including meeting rooms, control centres, and collaborative workspaces.
