The FiberX FX-I360 is the perfect solution for transmitting full-bandwidth video and audio signals over long distances and under very harsh and demanding conditions.

The AOC hybrid cable is made of copper and fiber conductors and thus allows full and uncompressed 4K@60Hz with 18Gbps over up to 100m.

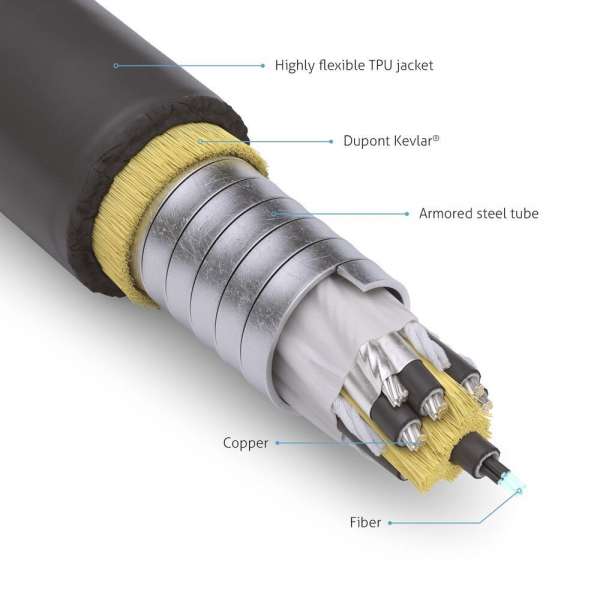

Beneath the outer jacket, the cable features a steel spiral, protecting it against any environmental damage over the complete cable length - The connectors are made of steel as well!



With the "integrated" AOC fiber optic HDMI cable FX-I360 from FiberX, the lossless and uncompressed transmission of up to 18Gbps is possible, allowing to transmit contents in UltraHD / 4K / 2160p with 60Hz.

The maximum lossless transmission distance  of this hybrid cable made of fiber and copper strands is 100 meters.

This makes it the first available technical solution with full CEC, EDID and HDCP support.

Thanks to the latest chipset, these "integrated" variants also transmit a digital audio signal.

The armored cables feature a steel spiral protecting the conductors, with a minimal bending radius of only 45mm.



The latest technology

Using hybrid technology, all HDMI data (e. g. EDID, HDCP, CEC, etc.) can be transmitted from the transmitter to the receiver for the first time. This also includes the 5V line of a conventional HDMI connection, which unfortunately cannot be transmitted via pure fiber optic lines. All products in the series are 3D enabled and offer full support for HDCP and Real Pass through EDID in real time, eliminating the need for EDID learning. The built-in chipsets are also equipped with a reclocking function and of course also support digital audio.



Pre-assembled lengths

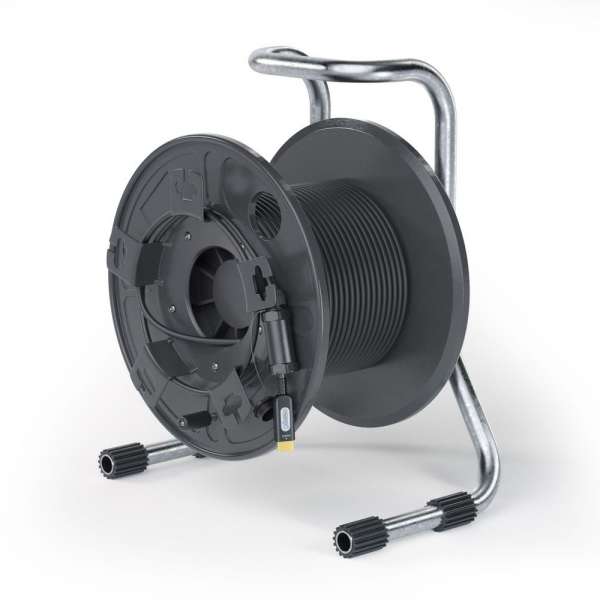

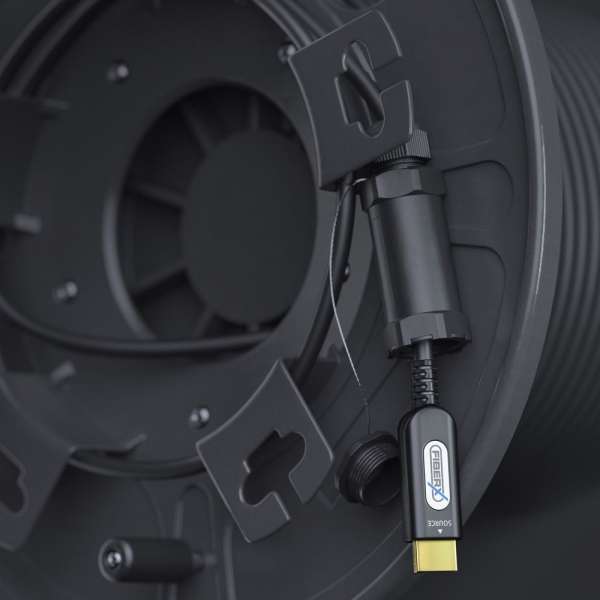

The FX-I360 series is available in the lengths of 10m up to remarkable 100m, each with pre-assembled, black HDMI connectors (also made of steel) on both sides and delivered on a reel.



Please note

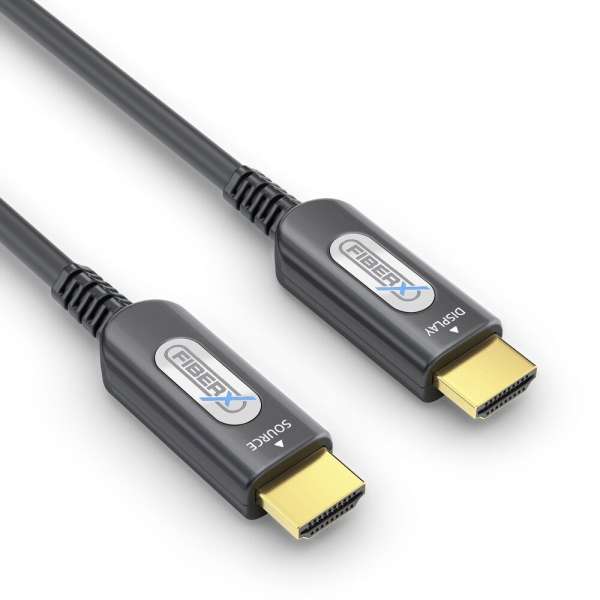

The cable is uni-directional and must not be connected to the wrong port - the ends are clearly marked with "source" and "sink". The successful connection to an HDMI adapter can not be guaranteed.



For professional applications and installations

All FiberX products are manufactured exclusively in state-of-the-art manufacturing facilities. During the manufacturing process, the products undergo a variety of quality tests, making them the most reliable choice on the market.





Features and Performance:

- Active optical fiber / copper hybrid transmission at full 18Gbps bandwidth

- Resolutions up to 4K@60Hz 4:4:4 incl. HDR 10, HDR 12 and Dolby Vision

- Supports all HDMI audio formats incl. Dolby TrueHD and DTS-HD Master Audio

- Hybrid Construction - Super lightweight, small bend radius (45mm), compact design

- Steel spiral underneath the outer cable jacket

- Up to 100m Maximum Length

- Low Power Consumption: max. 250mW

- Compatible with HDMI 2.0 standard

- HDCP 2.2, HDCP 1.4 compliant

- Supports ARC and eARC

- Self-detecting function for EDID information

- No loss of signal - delivering crystal clear digital images instantly

- Zero frame delay, no latency, no compression

- Crush Resistance: Long term 100kg; Short term 200kg

- Easy Plug & Play installation

- Metal connector housings for optimized EMI protection and max. robustness
