Armored 4K High Speed HDMI AOC Fiber Optic Cable - 50.00m

Armored 4K High Speed HDMI AOC Fiber Optic Cable - 50.00m

  • Article No. FX-I360-050
  • EAN 4251364720325
  • Für weitere Informationen bitte einloggen.
  • Your Price *

All prices excl. value added tax

AV TRANSMISSION VIA FIBER / COPPER HYBRID CABLE
The armored Active HDMI Hybrid Cable is the most competitive long reach HDMI interconnection solution on the market. It supports an HDMI total bandwidth of up to 18Gbps, still being lightweight and flexible. The cable features a tight and durable bending radius of only 45mm with an ultra-strong steel spiral underneath the cable jacket. Using an advanced optical engine, this HDMI Hybrid Cable provides full HDMI signal integrity over a max. of up to 100m cable length without requiring external power (Plug&Play).
FiberX AOC - The Best of Armoured Copper and Fiber Technologies
The FiberX FX-I360 is the perfect solution for transmitting full-bandwidth video and audio signals over long distances and under very harsh and demanding conditions.
The AOC hybrid cable is made of copper and fiber conductors and thus allows full and uncompressed 4K@60Hz with 18Gbps over up to 100m.

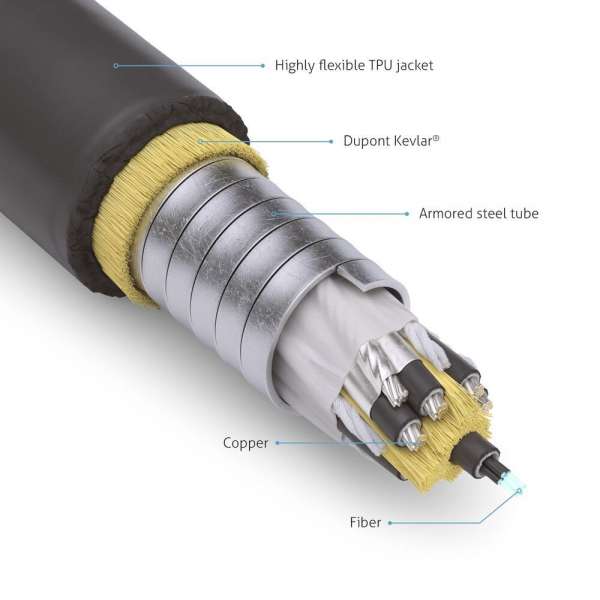

Beneath the outer jacket, the cable features a steel spiral, protecting it against any environmental damage over the complete cable length - The connectors are made of steel as well!

With the "integrated" AOC fiber optic HDMI cable FX-I360 from FiberX, the lossless and uncompressed transmission of up to 18Gbps is possible, allowing to transmit contents in UltraHD / 4K / 2160p with 60Hz.
The maximum lossless transmission distance  of this hybrid cable made of fiber and copper strands is 100 meters.
This makes it the first available technical solution with full CEC, EDID and HDCP support.
Thanks to the latest chipset, these "integrated" variants also transmit a digital audio signal.
The armored cables feature a steel spiral protecting the conductors, with a minimal bending radius of only 45mm.

The latest technology
Using hybrid technology, all HDMI data (e. g. EDID, HDCP, CEC, etc.) can be transmitted from the transmitter to the receiver for the first time. This also includes the 5V line of a conventional HDMI connection, which unfortunately cannot be transmitted via pure fiber optic lines. All products in the series are 3D enabled and offer full support for HDCP and Real Pass through EDID in real time, eliminating the need for EDID learning. The built-in chipsets are also equipped with a reclocking function and of course also support digital audio.

Pre-assembled lengths

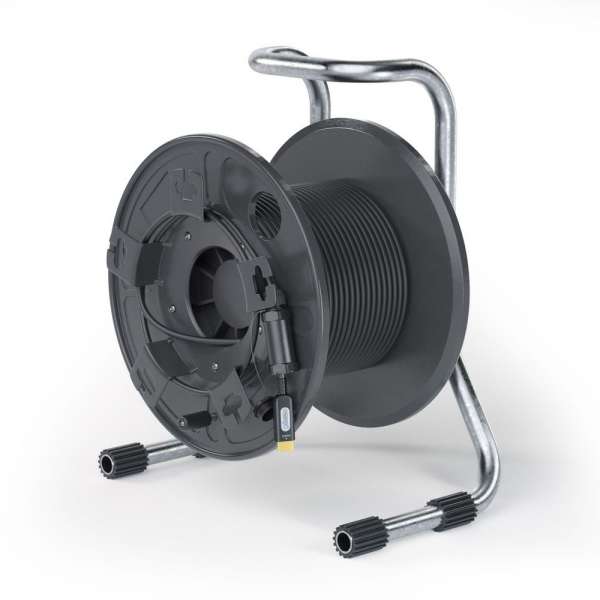

The FX-I360 series is available in the lengths of 10m up to remarkable 100m, each with pre-assembled, black HDMI connectors (also made of steel) on both sides and delivered on a reel.

Please note
The cable is uni-directional and must not be connected to the wrong port - the ends are clearly marked with "source" and "sink". The successful connection to an HDMI adapter can not be guaranteed.

For professional applications and installations
All FiberX products are manufactured exclusively in state-of-the-art manufacturing facilities. During the manufacturing process, the products undergo a variety of quality tests, making them the most reliable choice on the market.


Features and Performance:
- Active optical fiber / copper hybrid transmission at full 18Gbps bandwidth
- Resolutions up to 4K@60Hz 4:4:4 incl. HDR 10, HDR 12 and Dolby Vision
- Supports all HDMI audio formats incl. Dolby TrueHD and DTS-HD Master Audio
- Hybrid Construction - Super lightweight, small bend radius (45mm), compact design
- Steel spiral underneath the outer cable jacket
- Up to 100m Maximum Length
- Low Power Consumption: max. 250mW
- Compatible with HDMI 2.0 standard
- HDCP 2.2, HDCP 1.4 compliant
- Supports ARC and eARC
- Self-detecting function for EDID information
- No loss of signal - delivering crystal clear digital images instantly
- Zero frame delay, no latency, no compression
- Crush Resistance: Long term 100kg; Short term 200kg
- Easy Plug & Play installation
- Metal connector housings for optimized EMI protection and max. robustness
Features
HDMI version 2.0b - 18Gbps for resolutions up to 4K UltraHD 60Hz
Gold plated precision contacts, EMI resistance, low attenuation
HDMI-A male to HDMI-A male, full-metal housing
Armored hybrid cable - Fiber for A/V; copper for power & data, Ø 5.8mm
Delivered on cable drum with waterproof plug protection
Logistics Information
Product 1. Net Weight in Kg 2,84
Product 1. Gross Weight in Kg 4,24
Packaging 1. Weight in Kg 1
Product 1. Length in cm 31,5
Product 1. Width in cm 23,5
Product 1. Height in cm 38,5
Packaging 1. Length in cm 31,5
Packaging 1. Width in cm 23,5
Packaging 1. Height in cm 38,5
Packaging 2. Width in cm 23.5
Master Carton Length in cm 47
Master Carton Width in cm 38,5
Master Carton Height in cm 25,5
Product Information
Europeans Customs Tariff Nr. 85447000000
Country of Origin China
Packaging Material Plastic/Paper
VPE Information
Master Packaging Unit (pcs) 2
Secondary Packaging Unit (pcs) 1
Connections
Connector material TPU
Contact material gold-plated, long-life design
Shielding Yes
Connector 1 HDMI-A male (19pin)
Connector 2 HDMI-A male (19pin)
Contacts gold-plated, long-life design
Electric signal
Standards Armored Hybrid Fiber AOC
Digital video formats HDMI 4K / UltraHD / 2160p @60Hz
Digital audio formats Digital audio support, formats device dependant
HDCP Yes
CEC Yes
EDID Yes
Cable
Type Round, HDMI AOC
Lenght 50.0m
Outer material TPU
Outer diameter 5.8mm
Mechanical
Power supply max. 280mW
Power consumption Power over HDMI
Operating temperature 0°C - 50°C
Storage temperature -40°C - 70°C
Humidity 10% - 80%
Enclosure Metal / Plastics
Signal transmission
Supported standards HDMI 2.0, Fiber
Transmission modes Digital Audio- and video signals
Supported Colors 16/24 bit RGB/YUV, Deep Color, x.v.Color™
Supported audio standards Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, SD Audio, etc.
Maximum resolution 2160p / UltraHD / 4K @60Hz max. 100m
Further standards Fiber / Copper Hybrid AOC
Weiteres
Safety CE, FCC
EMI / EMC 100% free of EMI
Colour black
Warranty 1 year
Delivery Content
1x FX-I360 armored HDMI AOC Fiber Hybrid Cable, 50.0m
1x User Manual DE/EN
