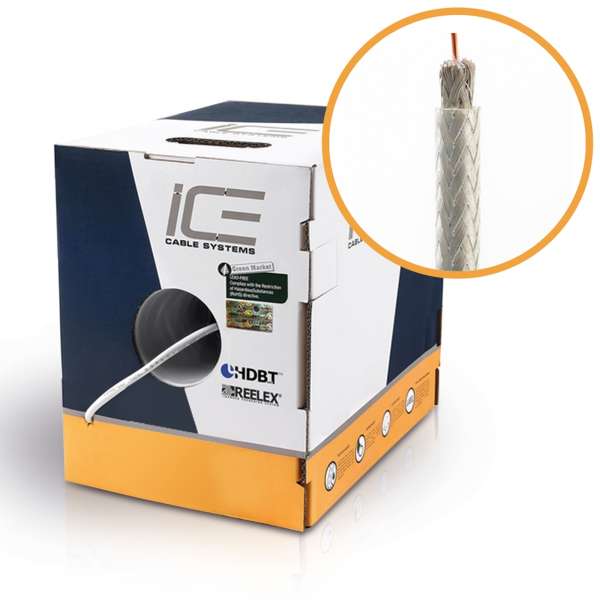

ICE Coaxial Cable, RG-59/HDTV, AWG20, 152.5m - blue

ICE Cable - Koax Kabel, blau, RG-59, 0,81mm (AWG20), geschirmt, blau, 152,50m Pulloutbox

ICE Coaxial Cable, RG-59/HDTV, AWG20, 152.5m - blue

  • Article No. ICE-RG59-BLUE
  • EAN 811885020898
  • Für weitere Informationen bitte einloggen.
  • Your Price *

All prices excl. value added tax

ICE Cable - Bulk Cable. Done Right.
ICE Cable - Coaxial Installation Cable
- RG-59/HDTV
- Conductor: 0,81mm (AWG20) BC
- Shielding: 125% AL Foil + 112x0,16 TC Braid
- Diameter: 3,66mm
- 152,5m Pulloutbox
Frustation-Free Cable Runs - Innovative Technologies for Installations
Bulk cable is an absolute necessity for installers.
Running and terminating own cable is a time consuming and expensive task, so having the right cable for the job is essential.

ICE Cables high quality materials, host of industry certifications and clever innovations, help installers do their jobs quicker and safer, and make the cable run robust and reliable.
The simple cable box has been completely overhauled by ICE Cable to great effect. Combining their water resistant, reinforced cardboard BMP box with a huge payout hole, and on the inside incorporating Reelex Coiling technology, has resulted in the best pulling experience available to installers.
The Reelex II coils ensure a tangle-free pull and hassle-free installation with absolutely no cable damage.

Artikeleigenschaften:
- 152,5m Pulloutbox - Coaxial Installation Cable
- 4" Big Mouth Payout and Reelex II cable winding pattern eliminates kinks and knots
- Conductor diameter: 0,81mm
- Shielding: 125% AL Foil + 95% Braid Copper
- Markers for knowing how much cable is left / used before pulling out
Features
152.5m BMP 2.0 box, coaxial installation cable
4” big mouth payout and Reelex II cable winding pattern eliminates kinks and knots
Bare copper center condcutor, tinned copper braid
Sequential foot and meter markers
Logistics Information
Product 1. Net Weight in Kg 8,95
Product 1. Gross Weight in Kg 8,96
Packaging 1. Weight in Kg 1
Product 1. Length in cm 30
Product 1. Width in cm 30
Product 1. Height in cm 27
Packaging 1. Length in cm 35,5
Packaging 1. Width in cm 26
Packaging 1. Height in cm 34,5
Product Information
Europeans Customs Tariff Nr. 85442000900
Country of Origin China
Packaging Material Plastic/Paper
VPE Information
Master Packaging Unit (pcs) 1
Connections
Connector 1 Unassembled
Connector 2 Unassembled
Cable
Type Coaxial Cable
Lenght 305m Pulloutbox
Inner conductor material Solid Bare Copper
AWG AWG20
Number of shieldings Yes
Shielding 1 Aluminum Braid
Outer material PVC
Outer diameter 6.1mm
Mechanical
Operating temperature max. 75°C
Signal transmission
Supported standards Coax, Coaxial, Antenna, Telephone, etc.
Weiteres
Safety c(UL), UIL, CM, FT4
further Certificates UL444
Colour Blue
Delivery Content
1x ICE-RG59-BLUE - Coaxial Installation Cable, 152,5m Pulloutbox
Dokumente "ICE Coaxial Cable, RG-59/HDTV, AWG20, 152.5m - blue"
