4K Premium High Speed HDMI Portsaver
- Article No. PI030
- EAN 4260134119245
- Für weitere Informationen bitte einloggen.
- Your Price *
All prices excl. value added tax

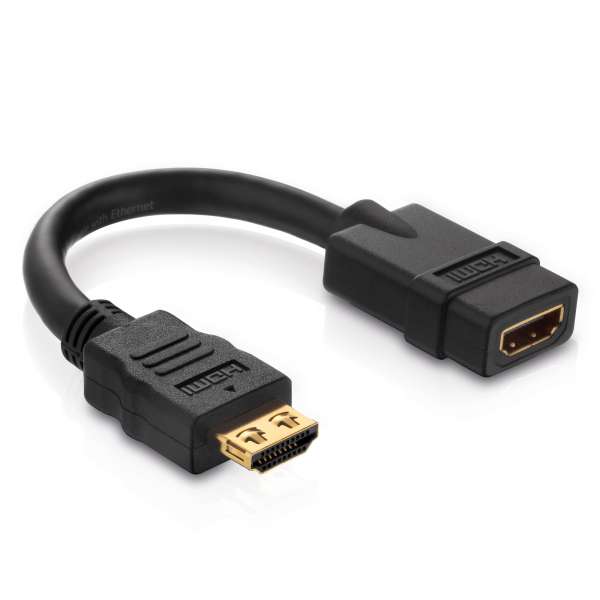

PI030 - High Speed HDMI to HDMI Portsaver
Reliable relief for HDMI device sockets with our Portsaver!
The PI030 High Speed Portsaver offers great traction relief at the socket and additionally offers a bigger bending radius. It comes with the Secure-Lock-System™ included in the PureInstall Series which has been developed especially for a secure and more traction-coping usage of HDMI connections. Thanks to its reliability, this product with Ethernet channel (HEAC) and ARC is perfectly suited especially for professional applications and installations.
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.
The Latest Generation
Our PureInstall HDMI adapters comply with the latest HDMI standard - HDMI 2.0 High Speed with Ethernet. They support resolutions up to 4K (4096x2160) and are downward compatible with all former HDMI versions.
Never Again Worry about Worn Sockets
Portsavers are a reasonable addition when stiff and long and/or thick HDMI cables are being used. The Portsaver is being connected to the socket of the receiving device and reliefs it by picking up the traction coming from the connected cable. Additionally, our Portsavers have an extreme bending radius (up to 180°), thanks to their highly elastic manufacturing. This simplifies the use of stiff HDMI cables in fragile sockets.
Conventional HDMI plugs easily lose grip in the socket. The solution: PureLink® High Speed HDMI adapters with Secure-Lock-System™. The SLS™ technology was developed by PureLink especially for a more secure use of HDMI connections. This plug design is one of a kind on the current market and enhances the stability of the connection even with high traction rates, securing the connection permanently.
Custom-fit, Durable and Without Losses
The highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.
HDMI Ethernet Channel and Audio Return Channel
The Ethernet channel (HEAC) within the HDMI cable is a new feature of the HDMI 1.4 standard. With this channel within the cable, you can integrate IP-based entertainment devices such as your TV, set-top-boxes or gaming consoles into your home network, including internet or IP-based services without additional cables. The audio return channel (ARC) eliminates (like the Ethernet channel does), an additional cable within the home cinema system. The ARC sends the digital audio signal - via the HDMI cable - back to your AV-receiver. Therefore, there is no more need for a separate connection with a Toslink cable.
For Professional Purposes and Installations
All PureInstall adapters are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the adapters undergo over ten quality tests, making them the most reliable choice on the market.
|HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz|
|Gold plated precision contacts with PureLink SLS™ (Secure-Lock-System™)|
|HDMI-A male to HDMI-A female, 10cm cable|
|Product 1. Net Weight in Kg||0,04|
|Product 1. Gross Weight in Kg||0,05|
|Product 1. Length in cm||11,7|
|Product 1. Width in cm||3,5|
|Product 1. Height in cm||2,5|
|Packaging 1. Length in cm||24,3|
|Packaging 1. Width in cm||16,6|
|Packaging 1. Height in cm||0,1|
|Master Carton Length in cm||41|
|Master Carton Width in cm||30|
|Master Carton Height in cm||30|
|Europeans Customs Tariff Nr.||85444290900|
|Country of Origin||China|
|Master Packaging Unit (pcs)||150|
|Secondary Packaging Unit (pcs)||10|
|Contact material||24 ct. gold plated, long-life design|
|Connector 1||HDMI Type A male (19pin)|
|Connector 2||HDMI Type A female (19pin)|
|Dimensions Con.1||43,5 x 19,5 x 10,5|
|Dimensions Con.2||39,6 x 23,6 x 12,3 (mm)|
|Contacts||24 ct. gold plated, long-life design|
|Maximum pixel clock / bandwidth||4K / UltraHD / 2160p (4096x2160)|
|Inner conductor material||Tinned OFC copper|
|Number of shieldings||3|
|Shielding 1||Aluminium foil (100% density)|
|Shielding 3||Mesh (100% density)|
|Outer material||Elastic PVC|
|Supported standards||High Speed HDMI with Ethernet|
|Transmission modes||Digital audio and video signals|
|Supported Colors||16/24 bit RGB/YUV, Deep Color, x.v.Color™|
|Supported audio standards||ARC, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD|
|Further standards||HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)|
|Safety||CE (incl. RoHS), FCC|
|Warranty||Optional 15 Years Manufacturer's Warranty|
