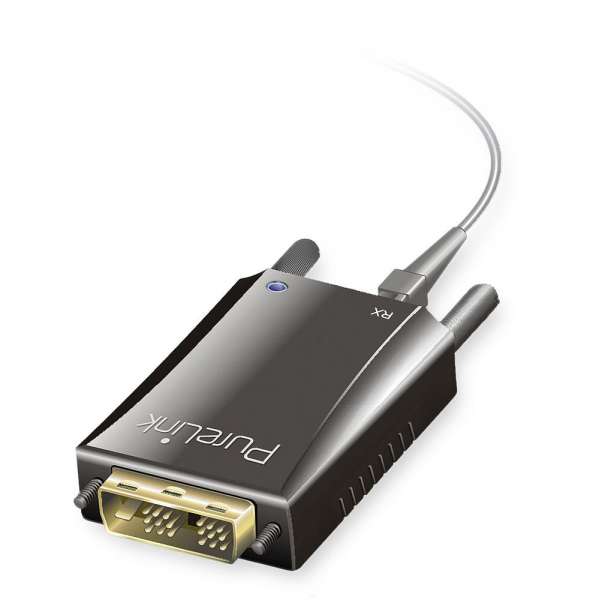

2K DVI Single Link Fiber Optic Extender Set
2K DVI Single Link Fiber Optic Extender Set
- Article No. FX1050
- EAN 4260134117593
- Für weitere Informationen bitte einloggen.
- Your Price *
All prices excl. value added tax
available
RESOURCES
AV SIGNALS EXTENDED VIA GLASS FIBER
This extender transmits a DVI signal further than just to the next room!The "detachable" FX1050 glass fiber DVI extender included in our FiberX Series enhances the reach of a DVI signal via FX-LC Single-Mode cable with detachable plugs of up to 10 kilometers. Transmissioned content can be of a maximum resolution of 1920x1200 (WUXGA), making it the first solution with full HDCP support. The integrated HDMI chipset allows for transmission of a digital audio signal as well. The usage of our first "Real Pass through EDID" feature simplifies installation as well as cable management, guaranteeing a fast communication between devices.
The FiberX Series - Glass Fiber Products for Long Cables
The products included in the FibreX Series are ideal to transmit audio- and video-signals via fiber over great distances. Limitations of hybrid-systems are being prevented. The Latest TechnologyThe system offers multiple advantages over the usual installations and is - depending on the product - designed for DVI, HDMI or DisplayPort. All products from the series are 3D-ready and offer full support of HDCP, as well as "Real Pass through EDID" in real time, which renders EDID Learning unnecessary. An additional feature are reclocking machanisms of the integrated chipsets. The jitter reduced circuits allow for sources with high interference rates. Fast and PracticalOur LC and SC glass fiber cables are detachable by a single handle. Therefore, transmitters and receivers can be replaced without having to re-lay the cable. Their compact shape makes them a perfect fit for places without much space and an ideal solution for permanent installations. Status Display- a permanently glowing LINK LED affirms working communication via the glass fiber cable - an only slowly blinking LED informs about a faulty cable or a loose plug. No communication has been established via glass fiber.Please NoteGlass fiber cables are very sensitive - the plugs tip should not be touched if possible. A fastly blinking LED signals the initialisation of the system. A slowly blinking LED signals a malfunctioning or an insufficient power supply. In this case, the extender has to be supplied by a USB port or by a USB power supply. For Professional Purposes and InstallationsAll FiberX products are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the products undergo over ten quality tests, making them the most reliable choice on the market.
Features |
DVI-D Single Link (18+1) for resolutions up to WUXGA / 1920x1200 |
Gold plated precision contacts, EMI resistance, low attenuation |
DVI-D (18+1) male to LC female, full-metal housing |
Supports Simplex Single Mode up to 10,000m |
"Zero frame delay" for latency and compression free transmissions |
Logistics Information | |
Product 1. Net Weight in Kg | 0,17 |
Product 1. Gross Weight in Kg | 0,29 |
Product 1. Length in cm | 15,5 |
Product 1. Width in cm | 8,5 |
Product 1. Height in cm | 3,5 |
Packaging 1. Length in cm | 23,5 |
Packaging 1. Width in cm | 14 |
Packaging 1. Height in cm | 16,5 |
Master Carton Length in cm | 49 |
Master Carton Width in cm | 30 |
Master Carton Height in cm | 33 |
Product Information | |
Europeans Customs Tariff Nr. | 85176200000 |
Country of Origin | Taiwan |
Packaging Material | Paper |
VPE Information | |
Master Packaging Unit (pcs) | 20 |
Connections | |
Input connector(s) | Transmitter: 1x DVI (18+1), 1x Mini USB | Receiver: 1x LC Fiber, 1x Mini USB |
Output connector(s) | Transmitter: 1x LC Fiber | Receiver: 1x DVI (18+1) |
Power connector(s) | 5V2A DC via Micro USB |
Electric signal | |
Digital video formats | Max. 1080p@60Hz (10.000m Single-Mode) |
Digital audio formats | When adapted from HDMI: Uncompressed |
HDCP | Yes |
EDID | Yes |
Mechanical | |
Power supply | max. 10 Watt |
Power consumption | 5V2A DC |
Operating temperature | 0°C - 50°C |
Storage temperature | -20°C - 85°C |
Humidity | 0% - 90% |
Enclosure | Steel |

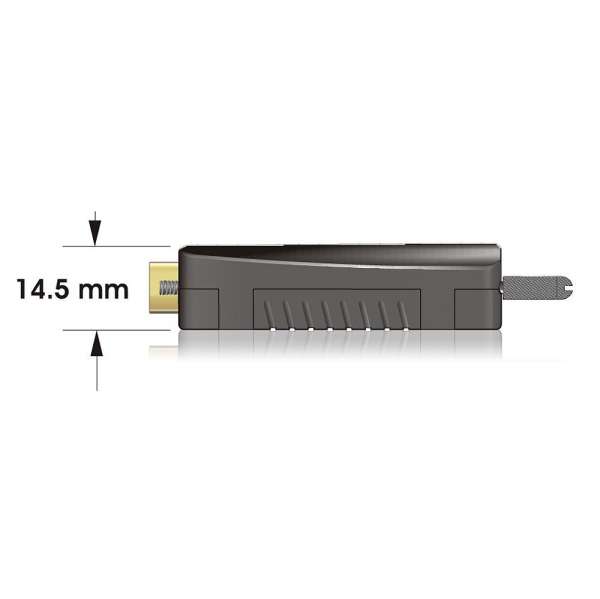

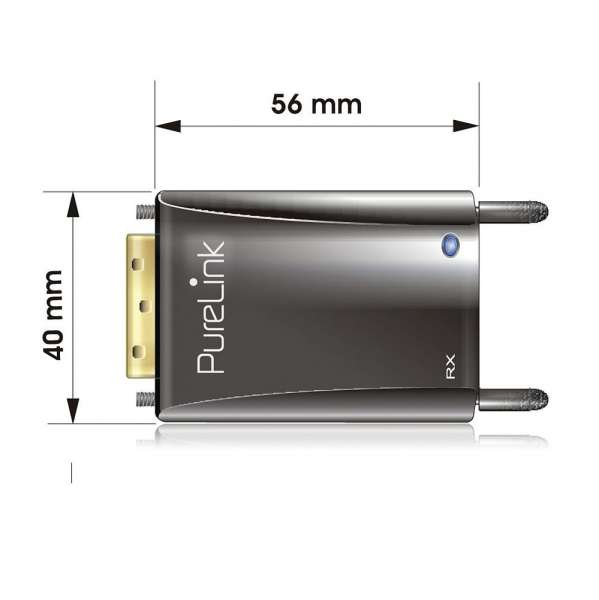

Dimensions | 56 x 40 x 14,5 mm |
Signal transmission | |
Supported standards | DVI Single-Link, LC Single-Mode, FDA/CDRH, IEC 60825-1 |
Weiteres | |
Safety | CE, FCC, RoHS |
Warranty | Statutory guarantee rights |
Delivery Content |
1x FX1050 Transmitter (Tx) |
1x FX1050 Receiver (Rx) |
1x 5V Power Supply |
1x Micro USB - USB Cable |
