4K DisplayPort Detachable Fiber Optic Extender Set - 48.70m / 160ft
- Article No. CT-UFO-DP-160P
- EAN 6971254820253
- Für weitere Informationen bitte einloggen.
- Your Price *
All prices excl. value added tax

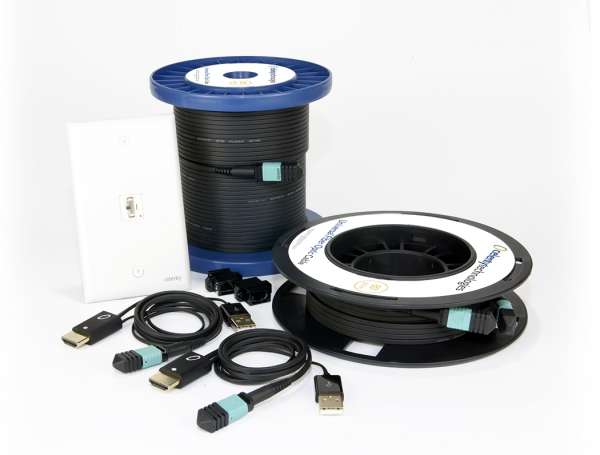

Celerity CT-UFO Series - 21.6Gbps Plenum DisplayPort Fiber Cables for CT-UFO-DP Extender Set
With the 21.6 Gbps DisplayPort detachable fiber optic extender "CT-UFO", consisting of transmitter (CT-UFO-TX-DP) and receiver (CT-UFO-RX-DP) the lossless and uncompressed transmission of UltraHD / 2160p / 4K AV signals at 60Hz and 4:4:4 Color Subsampling and/or 8K+ resolutions (compressed) becomes reality. The maximum range of this lossless optical fiber extender is 304.8 meters. The DisplayPort Fiber Extenders transmit bandwidths of up to 216Gbps and are equipped with a fire retardant and detachable Plenum-rated cable (NFPA 262 / 90A) which ensures low smoke emission in case of fire.
Attention: This article is only the connecting Fiber cable! The whole system consists of transmitter, receiver and cable in the desired length.
FIBER AV TECHNOLOGY ON A WHOLE NEW LEVEL

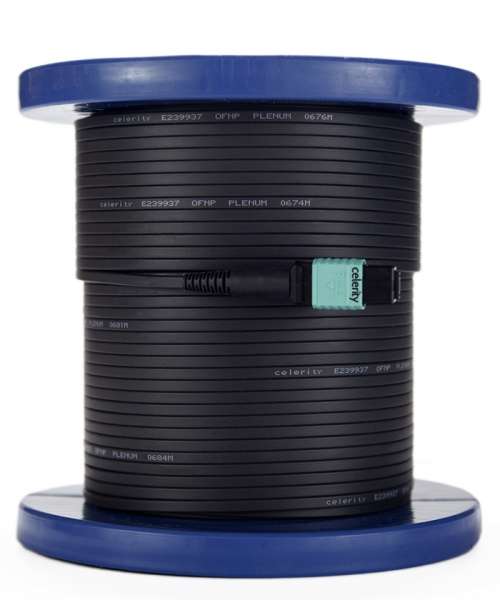

The next generation fiber optic cable
The CT-UFO series for DisplayPort offers improved stability for 21.6Gbps signal transmission. The Universal Fiber Optic cable may be installed in-wall for future systems running up to 48Gbps such as HDMI 2.1 or future DisplayPort specifications.
Attention: This fiber optic cable is only usable with the detachable extender set CT-UFO-TX-DP / CT-UFO-RX-DP.
Transmitter and Receiver must be purchased separately!
The features and specifications mentioned here refer to the common use of extender set and this fiber optic cable in combination.
- DisplayPort 1.4 with 21.6 Gbps for resolutions up to 4K / UltraHD / 2160p with 60Hz and 4:4:4 Color Subsampling, compatible with most HDR standards
- 8K+ resolutions possible (compressed)
- Plenum cable according to NFPA 262 / 90A - Fire retardant, low smoke development in case of fire - Perfect for Plenum-rated installations
- Detachable, slim DisplayPort connector for variable cable lenghts, including a 6ft fiber "pigtail"
- Optical coupling joins the UFO TX/RX with the UFO cable
- 5V power supply via included USB cable
- Pre-assembled cable lengths available: From 10.2m to 304.8m
- Bi-directional in-wall CT-UFO cable
- No electronics on the UFO cable ends
- Wallplate receiver version available
|DisplayPort version 1.4 - 21.6Gbps for resolutions up to 4K UltraHD 60Hz|
|Flame-retardant jacket made of OFNP material|
|DisplayPort male to MPO male, portsaver|
|Set of Tx/Rx DisplayPort connector module and detachable MPO fiber cable|
|5V power supply via integrated USB cable at the DisplayPort connector|
|Product 1. Net Weight in Kg||0,50|
|Product 1. Gross Weight in Kg||0,75|
|Product 1. Length in cm||12,5|
|Product 1. Width in cm||12,5|
|Product 1. Height in cm||12,7|
|Packaging 1. Length in cm||16,5|
|Packaging 1. Width in cm||16,5|
|Packaging 1. Height in cm||16,5|
|Master Carton Length in cm||50,8|
|Master Carton Width in cm||50,8|
|Master Carton Height in cm||35|
|Europeans Customs Tariff Nr.||85176200000|
|Country of Origin||China|
|Master Packaging Unit (pcs)||18|
|Connector material||Plastics (EMI-free)|
|Connector 1||Fiber (proprietary)|
|Connector 2||Fiber (proprietary)|
|Maximum pixel clock / bandwidth||4K@60Hz, 4:4:4 bzw. HDR + 8K (komprimiert)|
|Type||Fiber for CT-UFO-DP|
|Lenght||48,7m / 160ft|
|Inner conductor material||Fiber, EMI-free|
|Outer material||Plenum / UL / OFNP|
|Transmission modes||Digital Audio and Video Signals|
|Supported Colors||16/24 bit RGB/YUV, Deep Color, x.v.Color™|
|Supported audio standards||Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD|
|Maximum resolution||21.6 / 48 Gbps|
|Further standards||3D, HDCP, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)|
