Premium 3.5mm Jack Stereo Audio Cable with Angled Connectors – 5.00m

Premium 3.5mm Jack Stereo Audio Cable with Angled Connectors – 5.00m

  • Article No. S-AC520-050
  • EAN 4251364730249
  • Für weitere Informationen bitte einloggen.
  • Your Price *

All prices excl. value added tax

Premium 3.5mm Jack Stereo Audio Cable with Angled Connectors – 5.00m

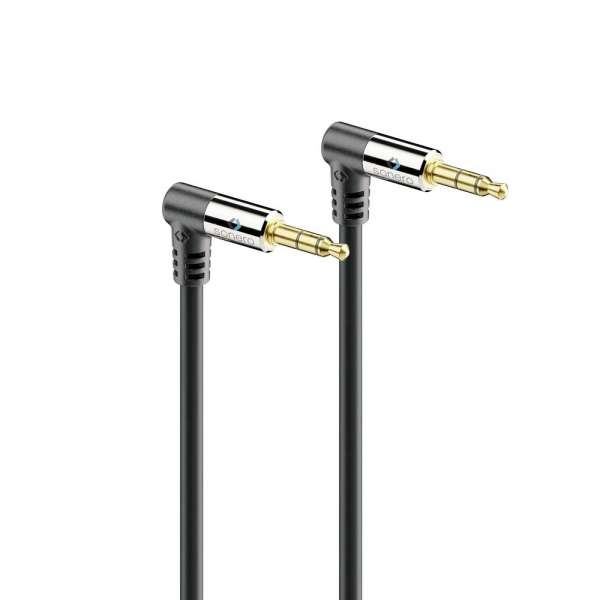

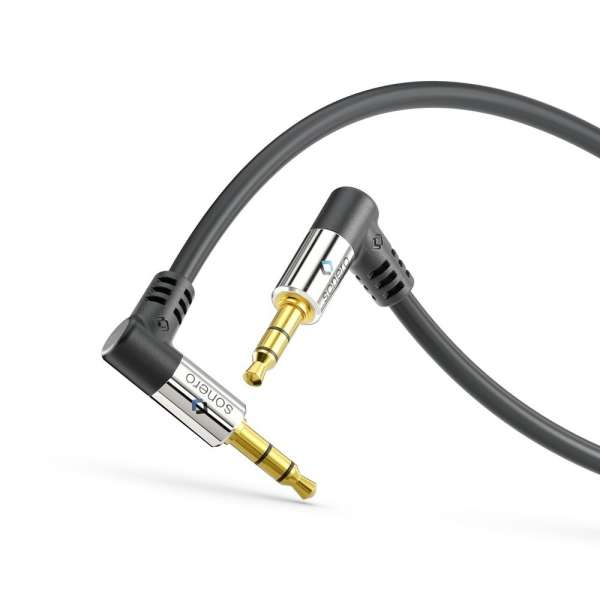

The S-AC520-050 is a 5.00 meter long Premium audio cable for transmitting analogue stereo audio signals via 3.5mm jack. It is equipped with gold-plated contacts, chrome-plated aluminium connectors as well as a flexible bend relief and features 90° angled 3.5mm male jack connectors on both sides. The high purity copper conductors are double-shielded and have a PVC jacket with a total outer diameter of 4.00mm. The audio cable from sonero allows for optimal and durable transmission quality with lasting corrosion protection and is suitable for connecting stereo audio devices with a corresponding audio amplifier, among other things.
sonero – High-Grade Products for the Consumer Market
The sonero audio range S-AC500 to S-AC900 (cables) and S-ACA012 / 013 (adapters) includes cables and adapters for the transmission of analogue audio signals with 3.5mm jack connectors as well as analogue or digital signals with RCA connectors. The cables and adapters allow the transmission of stereo audio or digital coax S/PDIF audio signals.

The cables, including the 25cm portsaver cables of the adapters, all feature high-purity copper conductors, dual shielding and an outer jacket made of high-quality PVC with varying diameters. The connectors of all cables and adapters are made of chrome-plated aluminium, equipped with gold-plated contacts and a flexible bend relief, which removes strain from the connector and thus causes less wear and tear. Simultaneously, it prevents unintentional exceeding of the minimum bending radius at the connector. Perfect signal transmission is assured at all times and the cable incl. plug is efficiently protected against corrosion at the same time.

All cables and adapters can be used bidirectionally, so there is no need to pay attention to the connector direction. Due to the high level of shielding, sonero audio cables are optimally protected against interference, including those from mobile phones and radio sources.

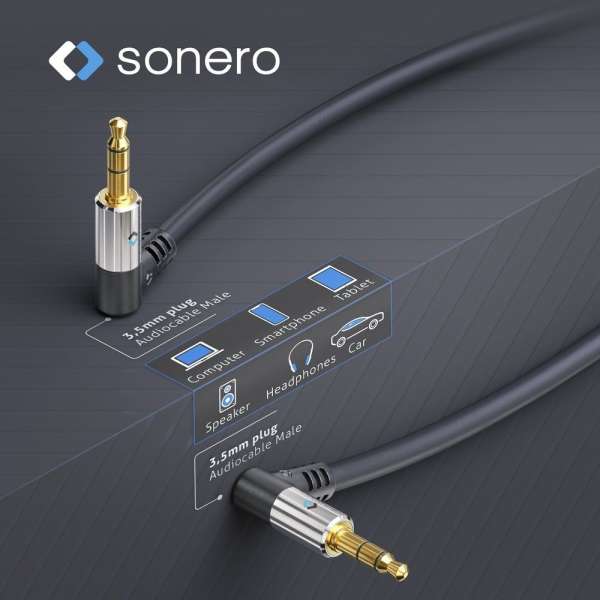

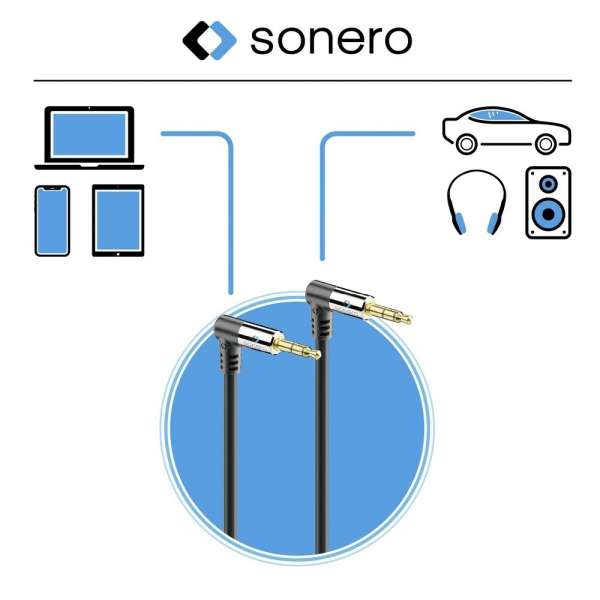

The audio cables can be used for all analogue or digital audio signals, e.g. as a connection between playback devices such as TV receivers, smartphones, BluRay players, streamers, etc. and a replay device such as an audio amplifier.
They are available in lengths between 0.50 meters and 20.00 meters.

The adapters and cables in this range at a glance:

Cables:
S-AC500: 3.5mm jack connector male straight to 3.5mm jack connector male straight, Ø 4.00mm
S-AC505: 3.5mm jack connector male straight to 3.5mm jack connector male straight, nylon braiding, Ø 4.80mm
S-AC510: 3.5mm jack connector male straight to 3.5mm jack connector male 90°, Ø 4.00mm
S-AC520: 3.5mm jack connector male 90° to 3.5mm jack connector male 90°, Ø 4.00mm
S-AC550: 3.5mm jack connector male straight to 3.5mm jack connector female straight, Ø 4.00mm
S-AC600: 3.5mm jack connector male straight to 2x RCA connector male straight, Ø 4.00mm
S-AC700: 2x RCA connector male straight to 2x RCA connector male straight, Ø 4,00mm
S-AC710: 2x RCA connector male straight to 2x RCA connector female straight, Ø 4,00mm
S-AC800: RCA connector male straight to RCA connector male straight, 75Ω impedance (digital), Ø 5,50mm
S-AC900: 2x RCA connector male straight to RCA connector male straight, Ø 5,50mm

Adapter:
S-ACA012: 3.5mm jack connector male 4-pin straight to 2x 3.5mm jack connector female 3-pin straight, white, Ø 4.00mm
S-ACA013: 3.5mm jack connector male 4-pin straight to 2x 3.5mm jack connector female 3-pin straight, black, nylon braiding, Ø 4.80mm


sonero - High-Grade Products for the Consumer Market
The sonero Premium Series products make the daily work of technical professionals easier and allow home users to enjoy media without distraction. With sonero Premium, there's always a high-quality solution available, no matter what kind of connection you're looking for. The extensive product range offers pristine transmission of audio, video and data and offers a selection of reasonable every-day accessories.
Features
Transmission of stereo audio signals via 3.5mm jack
Gold plated contacts, chrome plated aluminium connectors, flexible bend relief
3.5mm jack male 90° angled to 3.5mm jack male 90° angled
High purity copper conductors, double shielding, PVC jacket, Ø 4.00mm
Optimal and durable transmission quality, e.g. for headphones, home cinema, etc.
Logistics Information
Product 1. Net Weight in Kg 0,12
Product 1. Gross Weight in Kg 0,00
Product 1. Length in cm 12
Product 1. Width in cm 12,5
Product 1. Height in cm 1,5
Packaging 1. Length in cm 20,5
Packaging 1. Width in cm 18
Packaging 1. Height in cm 0,1
Master Carton Length in cm 40
Master Carton Width in cm 30
Master Carton Height in cm 30
Product Information
Europeans Customs Tariff Nr. 85444290900
Country of Origin China
Packaging Material Plastic
VPE Information
Master Packaging Unit (pcs) 70
Connections
Connector material Chrome-plated aluminium
Shielding Yes
Connector 1 3.5mm male jack, 90° angled
Connector 2 3.5mm male jack, 90° angled
Dimensions Con.1 ca. 21,00 x 17,30 x Ø 7,50 mm
Dimensions Con.2 ca. 21,00 x 17,30 x Ø 7,50 mm
Cable
Type Round Cable
Lenght 5.00m
Inner conductor material High-purity copper
Number of shieldings 2
Shielding 1 Aluminium foil shield
Outer material PVC
Outer diameter 4.00mm
Signal transmission
Supported audio standards Stereo audio
Weiteres
Safety CE, ROHS, REACH, WEE
Colour black
Delivery Content
1x S-AC520-050 Premium 3.5mm Jack Stereo Audio Cable with Angled Connectors – 5.00m
