EZCast Pro Dongle II - HDMI Receiver Dongle

EZCast Pro Dongle II - HDMI Receiver Dongle

  • Article No. EZ-PD10
  • EAN 4712899900403
  • Für weitere Informationen bitte einloggen.
  • Your Price *

All prices excl. value added tax

EZCast Pro Dongle II - 5GHz HDMI Receiver Dongle featuring Multicast and Multiview for EZCast Pro App as well as EZLauncher Enabled Devices

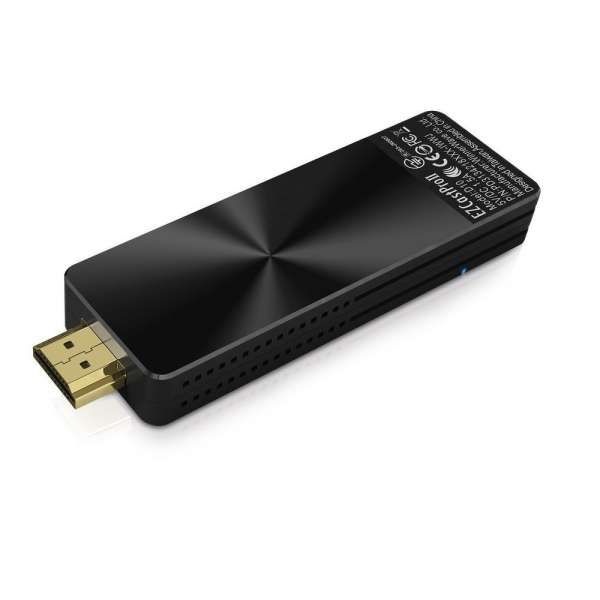

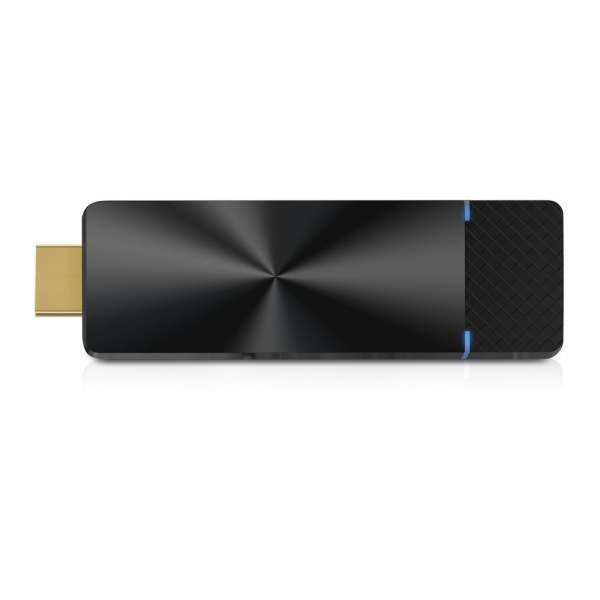

EZCast Pro Dongle II is a powerful WiFi display receiver dongle in a small, compact form factor. It supports a variety of operating systems, enabling mobile devices to cast individual screens to a bigger one, with full Multiview as well as Multicast capabilities. The built-in 5GHz dual antenna ensures perfect WiFi performance and transmission without any interference. Using the powerful EZCast Pro App or the EZLauncher USB transmitter, single or split screens with individual content are possible to display during a meeting (Multiview) - Use AirView and EZNote to share content or make notes. The powerful "ProCast" app allows anyone to cast their content to multiple EZCast Pro Dongle 2 receivers simultaneously (Multicast), making it a perfect solution for small offices and classrooms.
"EZCast Pro" - Wireless Content Transmission via Smartphone App or USB Transmitter
"EZCast Pro" can receive the AV stream from up to 4 sources simultaneously and display it individually or in split-screen mode - Using the "EZCast Pro" iOS / Android app for smartphones and tablets (no additional hardware required) or using the EZLauncher USB transmitter for PCs and laptops incl. "Click & Mirror" function.
Transform your legacy TV / monitor into a powerful WiFi display!

The "EZCast Pro" solutions can wirelessly transfer AV data (screen content) from a variety of input devices to one of three different receiver versions, each with unique features and the ability to show the content from 4 sources simultaneously on a split screen!
Users of mobile devices such as smartphones and tablets can simply download the "EZCast Pro" app from the Play Store / App Store and stream individual apps or the entire screen from their mobile phone or tablet to the receiver - no additional hardware is required.
For PC and laptop users, the "EZLauncher" transmitter can be connected to a free USB port on the computer to provide a quick and easy "Click & Mirror" solution while leaving the HDMI output unused, e.g. to connect to a local display.

Transmitter solutions:
- Transmission from smartphones / tablets: Just download the EZCast app, install it and start streaming (receiver required)
- Transmission from PC / laptop: Plug the "EZLauncher" USB module into a free USB slot on your PC, let the drivers install and use the "Click & Mirror" function to mirror your display output to the receiver

Receiver Solutions:
- EZCast Pro Box (EZ-PB02): Dual WiFi receiver (2.4GHz + 5GHz) with dual antennas, HDMI and VGA outputs, Audio breakout, RS232 control, Ethernet and USB input port
- EZCast Pro Box II (EZ-PB10): Dual WiFi receiver (2.4GHz + 5GHz) with dual antennas, HDMI output, Ethernet and USB-A 2.0 input, reception from one source to multiple receivers
- EZCast Pro LAN (EZ-PB01): Single WiFi (2.4GHz) and LAN (RJ45 Ethernet) receiver for a more stable internet connection, HDMI output
- EZCast HDMI / MHL Dongle (EZ-PD01): Compact single WiFi (2.4GHz) receiver, HDMI and MHL 2.0 output
- EZCast Pro HDMI Dongle 2 (EZ-PD10): Compact WiFi (5GHz) receiver, HDMI output with 4K@30 resolution

NOTE: The EZLauncher USB "Click & Mirror" transmitter is available with the deluxe set "EZ-PBD01" as well as transmitter 4-pack (EZ-LSET).


"EZ-PD10" - EZCast Pro HDMI Dongle 2 - Features:
- WiFi-Design - Integration of a wireless receiver for 5 GHz to provide stable and high-bandwidth connections
- HDMI 4K@30 output - The dongle is equipped with a male HDMI connector, outputting at a max. bandwidth of 4K / UltraHD / 2160p@30Hz
- EZCast Pro App Features - EZCast Pro allows to display content from different sources to up to 4 split screens, a great way for you to compare content on the fly (Multiview)
- EZCast Pro "ProCast" - Streaming from one single source device to multiple receiver dongles at the same time (Multicast)
- Supports the most popular mobile OS - EZCast Pro is available for Windows Phone, ChromeOS, iOS, Android, etc. and thus usable from any mobile device
- Also supports PC transmissions - Connect the USB enabled EZLauncher (only included in EZ-PBD01) with your PC to "Click & Mirror" your current monitor to a wireless receiver
- Multiple WiFi Mirroring Standards - Supports multiple WiFi Mirroring standards, including Miracast, DLNA and AirPlay
- Regular OTA updates - Regular updates of the firmware from the integrated cloud service to improve compatibility, add new features and fix bugs
- Compatible with Mac OSX, iOS, AndroidWindows, Windows Phone, etc.

"EZ-PD10" - EZCast Pro Dongle 2 - Hardware Specifications:
- CPU: AM8270
- DRAM: DDR3 1GB
- NAND: 512MB
- Video output: HDMI, max. 2160p@30Hz / 1080p@60Hz
- WiFi: 802.11ac, 5GHz, 866Mbps
- Power Supply: 5V1.5A USB-C
Features
Wireless screen content via app, software, Airplay, Miracast, Chromecast
Content from up to four sources can be displayed simultaneously on one screen
Realtime one-to-many mirroring for classroom and conference applications
802.11ac, 5GHz, dual antennas, resolutions up to 4K UltraHD
Compatible with Windows, Mac OS, iOS, Android and ChromeOS
Logistics Information
Product 1. Net Weight in Kg 0,03
Product 1. Gross Weight in Kg 0,09
Product 1. Length in cm 10
Product 1. Width in cm 3,2
Product 1. Height in cm 1,2
Packaging 1. Length in cm 13,5
Packaging 1. Width in cm 8,2
Packaging 1. Height in cm 3
Master Carton Length in cm 48
Master Carton Width in cm 34
Master Carton Height in cm 19
Product Information
Europeans Customs Tariff Nr. 85176200000
Country of Origin China
Packaging Material Paper
VPE Information
Master Packaging Unit (pcs) 50
Secondary Packaging Unit (pcs) 10
Connections
Output connector(s) 1x HDMI-A male
Power connector(s) 1x USB-C 5V1.5A
Electric signal
Digital video formats HDMI, max. 2160p@30Hz
Digital audio formats via HDMI
Mechanical
Power supply 2W - 5W
Power consumption 5V1.5A via USB-C
Enclosure Plastics
Dimensions ca. 87.5 x 32 x 12 m
Signal transmission
Supported standards Rx: WiFi 5GHz, HDMI 1.4
Maximum resolution FullHD / 2160p
Weiteres
Safety CE, FCC
Colour Black
Warranty 1 year
Delivery Content
1x EZ-PD10 - EZCast Pro Dongle 2
1x HDMI male - female portsaver adapter
1x USB-C power cable
1x Quick Start Guide
