8 Button Control Panel Wall Plate Module

8 Button Control Panel Wall Plate Module

  • Article No. PT-CON-WP8B
  • EAN 4251364716038
  • Für weitere Informationen bitte einloggen.
  • Your Price *

All prices excl. value added tax

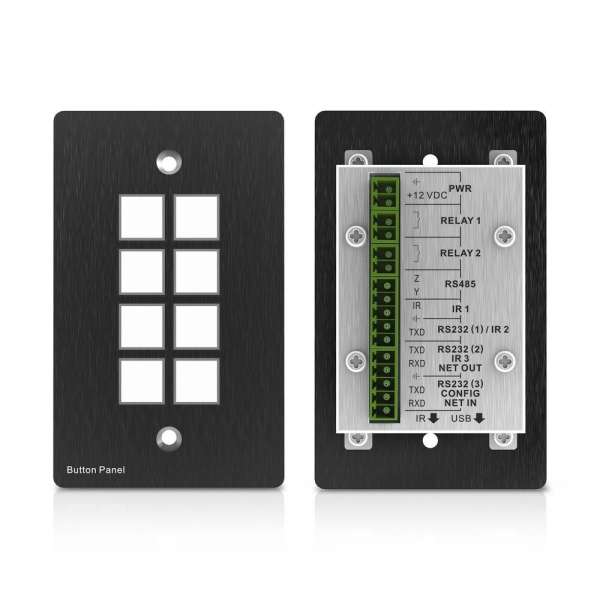

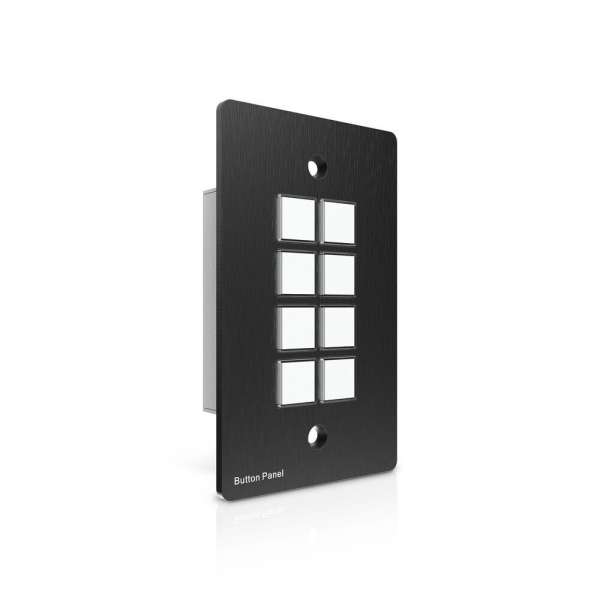

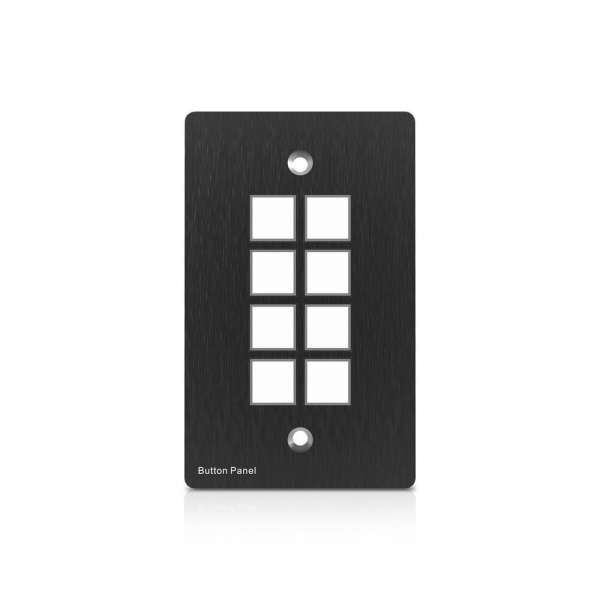

Programmable 8-Button Control Panel as Wall-Plate, Black
This is a programmable 8-button control panel as wall-plate. Every button is programmable and works either individually or together with another one. The panel features 3x RS232, 1x RS485, 3x IR, 2x relay and 1x miniUSB ports. It is able to control any device via one of the protocols, such as projectors, screens, TVs / monitors, AV extenders / splitters, etc. It is an easy-to-use control device for presentations in show rooms, classrooms and boardrooms as well as for complicated AV installations, as in broadcasting or media production environments. Please note: The first RS232 port and the second infrared port share the same connection and can thus not be used at the same time. The same issue applies for the second RS232 and the third infrared port, which are also "linked".
The PureTools Series - High Quality AV Products for Commercial Applications
The PT-WP8 module is a individually programmable 8-button control panel in 1-gang size (2,75" x 4,5") for any AV application with each button supporting page and toggle settings.
It is ideally suited for integration into office furniture. Each key is freely programmable
It features RS232, RS485, IR & relay control ports to control any device of choice.

Crystal and luminescent, programmable buttons
Every button can be programmed from a PC via USB or RS232, using the software - Find all the details and features of this great and easy to use software in the user maual.
The backlight intensity of the transluscent buttons can be adjusted as well
Customizable and changeable labels for any button - Every label inside the respective button can be changed at will.

Mini USB Connector:
- Communication with a PC using a comprehensive and intuitive software to program the buttons
- Transmit the infrared data when learning IR (Optional)

Infrared sensor port:
- Receive and learn the IR code, to build a personalized IR database

Software and Programming:
- Installation: Suitable USB drivers must be installed (normally included in Windows). The software can run "stand-alone", without any installation
- Connection: The control panel can be connected to the computer via USB or RS232 for programming and to default the functions of every button
- Action sets: Add an action to the action list, then add the desired resulting events to this action to make the action execute the events
- The firmware is updatable via USB

Software buttons:
- There are three different "key colors" available in the panel setup of the software - white, blue and yellow
- The white buttons represent the 8 physical buttons on the front panel itself
- The blue and yellow software buttons can be setup with a special function or action set and then assigned to one of the white buttons
- This means, one physical button can trigger a nearly unlimited set of commands and actions

Note:
- This control panel can activate different ports at the same time, allowing every button to send RS232 / RS485 commands, IR code and control the relay at the same time.
- RS232 port 1 and IR port 2 share the same port, the detailed use depends on the individual software settings. When used in RS232 mode, only a unidirectional transmission without receiving at the same time is possible.
Features
Transparent, backlit buttons with customisable labels
Every button indiv. programmable, e. g. RS232, RS485, IR and trigger signals
Intuitive programming with simple command uploading and configuration
Up to 99 control panels can be looped in a system and be controlled together
PC software programming via USB or RS232, installation in 2-gang wall socket
Logistics Information
Product 1. Net Weight in Kg 0,36
Product 1. Gross Weight in Kg 0,46
Product 1. Length in cm 12,8
Product 1. Width in cm 7
Product 1. Height in cm 5,5
Packaging 1. Length in cm 26,5
Packaging 1. Width in cm 20
Packaging 1. Height in cm 7
Master Carton Length in cm 60
Master Carton Width in cm 55
Master Carton Height in cm 40
Product Information
Europeans Customs Tariff Nr. 85366990990
Country of Origin China
Packaging Material Plastic/Paper
VPE Information
Master Packaging Unit (pcs) 40

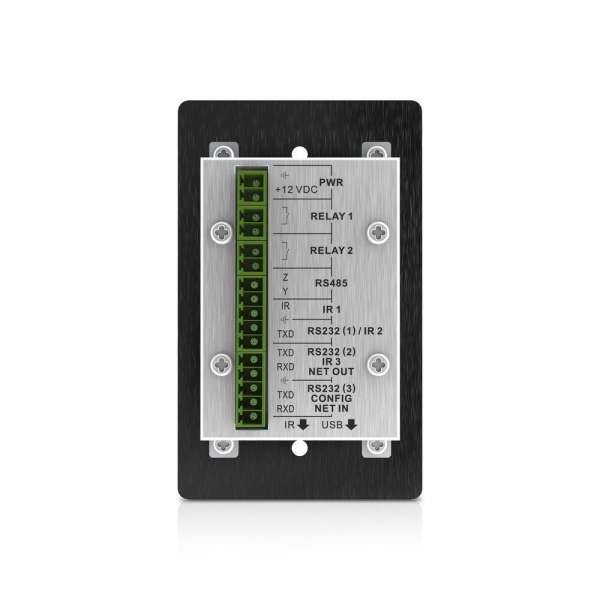

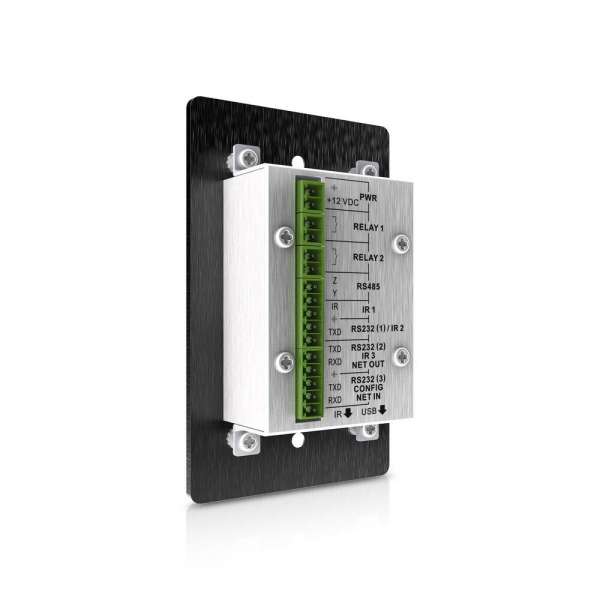

Connections
Input connector(s) 1x IR EYE (3.5mm Jack), 1x PC Control (mini USB)
Output connector(s) 3x RS232 (3 pin Phoenix), 1x RS485 (3 pin Phoenix), 3x IR (3 pin Phoenix), 2x Relay (2 pin Phoenix)
Power connector(s) 12V2A DC
Control connector(s) USB or RS232
Mechanical
Power supply max. 1W
Power consumption 12V2A DC
Operating temperature -10°C - 55°C
Storage temperature -25°C - 70°C
Humidity 10% - 90%
Enclosure Metal
Dimensions 114x70x28mm
Signal transmission
Further standards Baud Rate and Protocol: 9600 Baud, 8 bits, 1 stop bit, "no parity"
Weiteres
Safety CE, FCC
Colour black
Warranty Optional 5 Years Manufacturer's Warranty
Delivery Content
1x Wallplate control panel with 8 buttons, black
3x 2-pin screw connector
8x button caps + 1x button label
1x USB cable, 1x PSU, 2x IR emitter
1x User manual
