2K SDI to HDMI Converter

2K SDI to HDMI Converter

  • Artikel-Nr. PT-C-SDIHD
  • EAN 4260134117081
  • il tuo prezzo *

Tutti i prezzi sono IVA esclusa

SIMPLE SIGNAL DISTRIBUTION WITH JUST ONE DEVICE
With this converter, quickly convert coaxial signals!

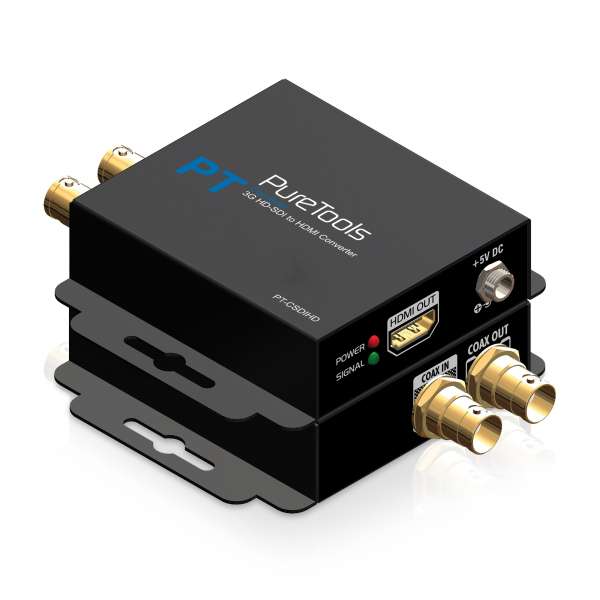

The PT-C-SDIHD 3G/HD-SDI to HDMI converter included in the PureTools Series allows for quick and simple real-time conversion of coaxial 3G/HD-SDI to HDMI signals. The purely digital conversion of SDI to HDMI guarantees for a lossless conversion of the AV signals. The device is provided with one SDI input and output port each, allowing for looping the signal. Furthermore it can also be used as splitter. The device detects the 3g/HD-SDI signals automatically and can easily be used as plug-and-play solution.
The PureTools Series - High Quality AV Products for Commercial Applications
Our practice-oriented PureTools Series distinguishes itself by perfected technology complying with the latest standards and smartest innovations. Due to this, the products included in the PureTools Series are exceptional talents which are crucial for professional installers.

Simple, Fast, Space-Saving
This PureTools converter allows for a simple and quick conversion of a 3G/HD-SDI signal to a HDMI signal.

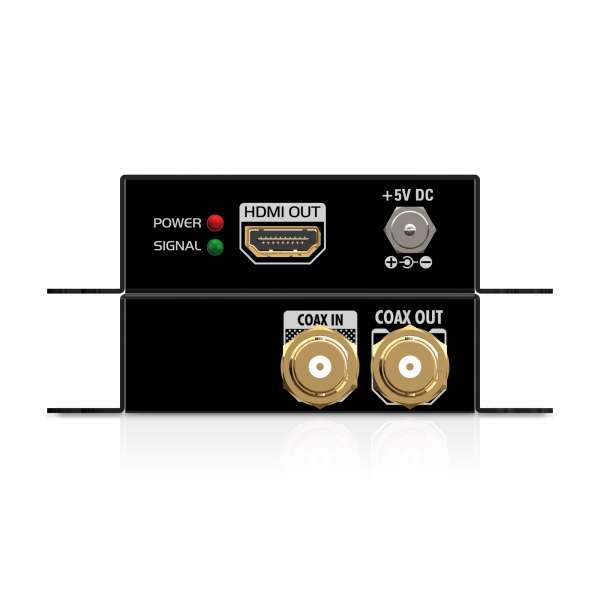

2x BNC and Dip-Switch for Loop Function and Use as a Splitter
The manual configuration options of the BNC inputs and outputs allow for the use of the device Loop system with multiple units via a second BNC ouput. Multiple converters can therefore be connected in series: the image signal can simultaneously be played back at the device as well as being forwarded. This allows for great distances to be covered.

Uncompressed HD Formats
With our PureTools 3G/HD-SDI to HDMI converters, audio and video signals can be transmitted digitally and uncompressed in best quality. HDMI signals with HDCP, 3D and Deep Color support with a resolution up to FullHD (1920x1080) as well as digital audio signals up to 7.1 HD can be sent unaltered.

Convincing - even in the Details
The converters included in our PureTools Series are convincing in every detail, the devices profit from the optimisation for professional installations in known PureLink quality. With the screw-lock power supply and the Loop function, all precautions are taken for a professional use. The robust steel casing with optional installation into an AV rack simplifies the installation on location without any delays for installer and client.

For Professional Purposes and Installations
All PureTools converters are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the adapters undergo over ten quality tests, making them the most reliable choice on the market.
Features
Conversion of 3G/SD/HD-SDI to HDMI signals with 3G/SD/HD-SDI Loop Out
Supports resolutions up to 2K FullHD 1080p
Supports 8-channel audio including 7.1 DTS-HD Master and Dolby TrueHD
Automatic 3G / SD-SDI / HD-SDI detection, bitrates 270Mbps up to 2.967Gbps
Ultra-slim and lightweight case with screwable power supply
Logistics Information
Product 1. Net Weight in Kg 0,25
Product 1. Gross Weight in Kg 1,03
Packaging 1. Weight in Kg 1
Product 1. Length in cm 7,9
Product 1. Width in cm 8,4
Product 1. Height in cm 2,6
Packaging 1. Length in cm 14
Packaging 1. Width in cm 20
Packaging 1. Height in cm 7,5
Master Carton Length in cm 42
Master Carton Width in cm 40
Master Carton Height in cm 30
Produkt Informationen
Europeans Customs Tariff Nr. 85437090990
Country of Origin Taiwan
Packaging Material Paper
VPE Informationen
Master Packaging Unit (pcs) 20
Connections
Input connector(s) 1x 3G/SD/HD-SDI (BNC)
Output connector(s) 1x HDMI, 1x 3G/SD/HD-SDI (BNC)
Weiteres
Warranty Optional 5 Years Manufacturer's Warranty
