Halogen-free 4K High Speed HDMI Cable – 25.00m

Halogen-free 4K High Speed HDMI Cable – 25.00m

  • Artikel-Nr. PI1005-250
  • EAN 4260134128568
  • il tuo prezzo *

Tutti i prezzi sono IVA esclusa

PI1005 - HDMI High Speed Cable with Ethernet Channel
Immense cable lengths for applications with standard demands!
The PI1005 HDMI cable included in the PureInstall Series with a cable length of 7.5 meters offers a secure HDMI Standard Speed connection (up to 1080p) even over greater distances and is the perfect choice for professional applications and installations thanks to its high reliability. Like all cables included in the PureInstall Series, it is equipped with SLS™ technology and therefore holds up to high traction. An Ethernet channel (HEAC) and an audio return channel are supported as well.
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.

Halogen-free assembly
These installation cables cause little smoke in the event of a fire. Due to the complete absence of halogens during the manufacturing process, the fire will automatically develop less smoke. The cable also does not burn so quickly, thanks to its flame retardant properties and is thus perfectly suitable for installations in buildings, vehicles, etc.

The Latest Generation
Our PureInstall HDMI cables from 10 meters length comply with the latest HDMI standard - HDMI Standard Speed with Ethernet. They support resolutions up to 1080p (FullHD), all current 3D formats and are downward compatible with all former HDMI specifications.

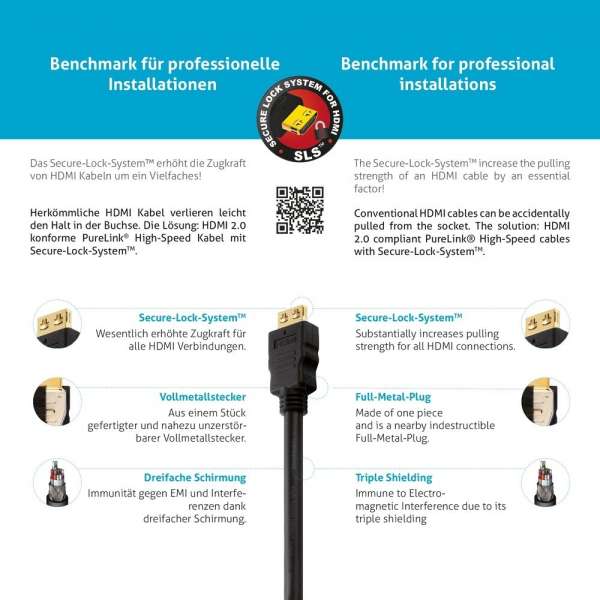

Conventional HDMI plugs easily lose grip in the socket. The solution: PureLink® High Speed HDMI adapters with Secure-Lock-System™. The SLS™ technology was developed by PureLink especially for a more secure use of HDMI connections. This plug design is one of a kind on the current market and enhances the stability of the connection even with high traction rates, securing the connection permanently.

Triple Shielding
Our unique triple-shielding technology consists of a 100% closed aluminum foil, a thick netting and an additonal inner shielding. Due to this, our cable are immune from interferences and crosstalk. The ultra-pure inner conductor made of OFC copper can therefore unfold its full potential.

Custom-fit, Durable and Without Losses
The highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.

Single-Source Technology
Our HDMI cables have been tested for professional use and extreme bending. The front plug, the middle shell and the back strain relief cuff are made from one single piece of metal and nearly indestructible.

HDMI Ethernet Channel and Audio Return Channel
The Ethernet channel (HEAC) within the HDMI cable is a new feature of the HDMI 1.4 standard. With this channel within the cable, you can integrate IP-based entertainment devices such as your TV, set-top-boxes or gaming consoles into your home network, including internet or IP-based services without additional cables. The audio return channel (ARC) eliminates (like the Ethernet channel does), an additional cable within the home cinema system. The ARC sends the digital audio signal - via the HDMI cable - back to your AV-receiver. Therefore, there is no more need for a separate connection with a Toslink cable.

For Professional Purposes and Installations
All PureInstall cables are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the cables undergo over ten quality tests, making them the most reliable choice on the market.
HDMI version 1.4 – 10.2Gbps for resolutions up to 4K UltraHD 30Hz
Gold plated precision contacts with PureLink SLS™ (Secure-Lock-System™)
HDMI-A male to HDMI-A male, TPE outer jacket
High purity, tinned OFC copper conductors and triple shielding, AWG24
Halogen-free (LSZH) for low smoke emissions in case of fire
Logistics Information
Product 1. Net Weight in Kg 2,68
Product 1. Gross Weight in Kg 2,72
Product 1. Length in cm 26
Product 1. Width in cm 26
Product 1. Height in cm 10
Packaging 1. Length in cm 42,3
Packaging 1. Width in cm 34,6
Packaging 1. Height in cm 0,1
Master Carton Length in cm 41
Master Carton Width in cm 30
Master Carton Height in cm 30
Produkt Informationen
Europeans Customs Tariff Nr. 85444290900
Country of Origin China
Packaging Material Plastic
VPE Informationen
Master Packaging Unit (pcs) 5
Secondary Packaging Unit (pcs) 10
Connector material LSZH TPE
Contact material 24 ct. gold-plated, long-life design
Shielding Si
Connector 1 HDMI Type A male (19pin) incl. ULS™
Connector 2 HDMI Type A male (19pin) incl. ULS™
Contacts 24 ct. gold-plated, long-life design
Electric signal
Maximum pixel clock / bandwidth 4K / UltraHD / 2160p @30Hz oder 4K@60 (4:2:0) bzw. 1080p FullHD
Type Round cable
Lenght 25.0 meters
Inner conductor material Tinned OFC copper
Number of shieldings 3
Shielding 1 Aluminium foil (100% density)
Shielding 3 Mesh (100% density)
Outer material Highly elastic, halogen-free LSZH TPE
Outer diameter 10.5mm
Signal transmission
Supported standards High Speed HDMI with Ethernet
Transmission modes Digital audio and video signals
Supported Colors 16/24 bit RGB/YUV, Deep Color, x.v.Color™
Supported audio standards ARC, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD
Further standards HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Safety CE (incl. RoHS), FCC
Colour black
Warranty Optional 15 Years Manufacturer's Warranty
Delivery Content
1x PI1005-250 halogen-free HDMI cable, black, 25.0m
