Dr. HDMI - 2K HDMI Communicator

Dr. HDMI - 2K HDMI Communicator

  • Artikel-Nr. HDF0060-1
  • EAN 019962384646
  • Su precio *

Todos los precios sin IVA

HDFury - Professional A/V products for intense applications

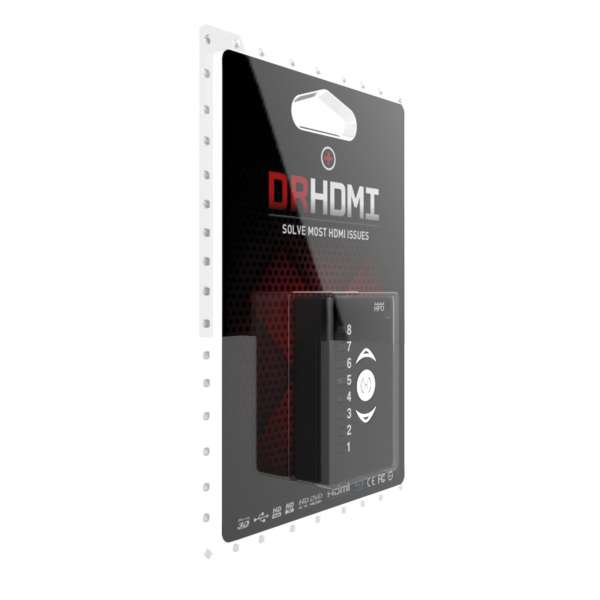

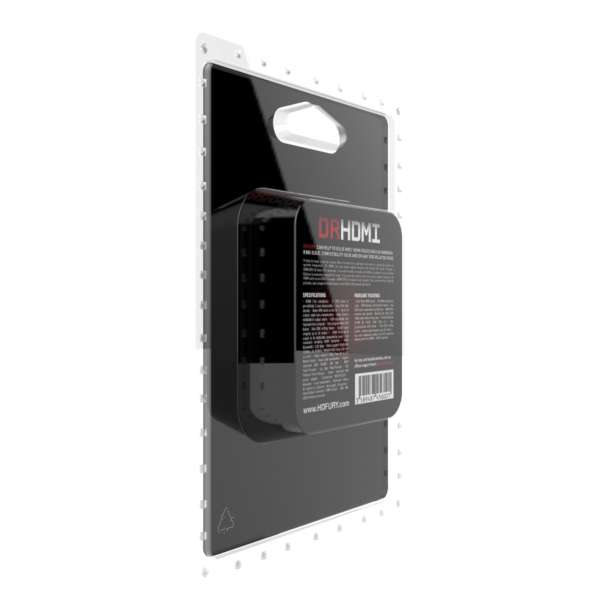

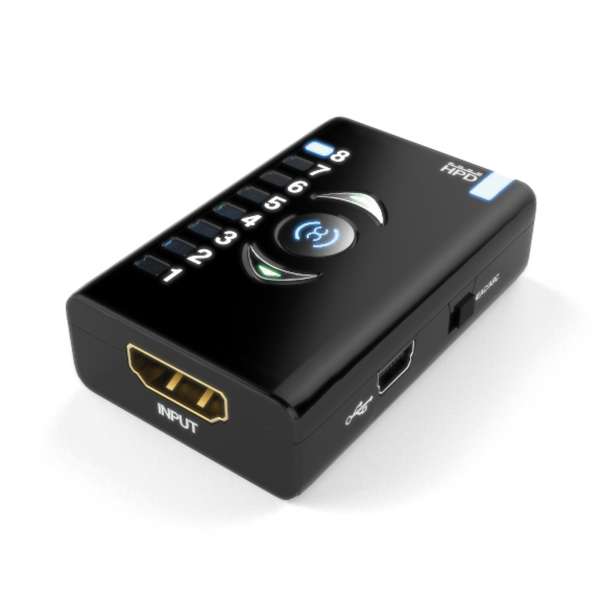

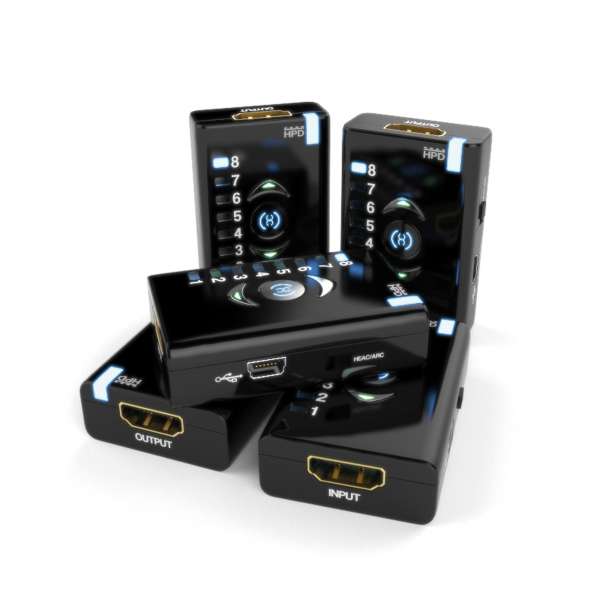

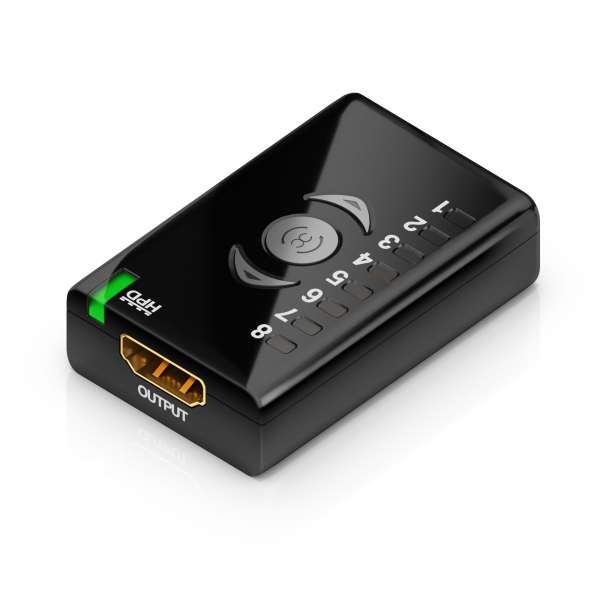

HDFury HDF0060-1 "Dr. HDMI" - HDMI EDID manager / emulator, solves handshake problems, 5V HDMI repeater, programmable
HDFury Solves Common A/V Installation Problems
Two for the price of one - Here comes the "Doctor" for EDID incompatibilities!
The "Dr. HDMI" from HDFury combines two products. As EDID-Mmanager it solves all handshake problems of HDMI connections, as it only forwards the desired EDID data to the source device, thus avoiding compatibility problems. In addition, Dr. HDMI serves as a repeater and thus extends the range of an HDMI connection to up to 50 meters. The integrated USB port serves as a data connection for firmware updates and also as power supply.

Dr. HDMI helps solving HDMI problems, such as handshake between 2 devices as well as other compatibility or EDID problems.
The unit continuously sends a signal to your screen, preventing the screen from going into standby mode after a short time.

Dr. HDMI also serves as EDID manager, HDMI/DVI-D emulator and signal amplifier / repeater.
In addition, Dr. HDMI amplifies the signal quality in an HDMI or DVI connection with a 5V signal.
For example, it can extend the compatibility range with other HDFury products, such as the HDFury "Nano GX".
This increases compatibility with older monitors or projectors.

With Dr. HDMI, you can decide for yourself which resolution is to be displayed on your screen.

It has 5 pre-programmed resolutions, 2 individual user-programmable resolutions and an automatic resolution generated from the signal source.
EDID communicator between 1 HDMI input and 1 HDMI output
Supports HDMI 1.4a for resolutions up to WUXGA 1920x1200
Solves 2K handshake problems, EDID management, HDMI and DVI emulator
Signal amplification up to 50m with +5V injection for active HDMI cables
Pre-defined und individual EDID presets via push button
Logistics Information
Product 1. Net Weight in Kg 0,03
Product 1. Gross Weight in Kg 0,23
Product 1. Length in cm 0,6
Product 1. Width in cm 0,4
Product 1. Height in cm 0,2
Packaging 1. Length in cm 1,6
Packaging 1. Width in cm 1,1
Packaging 1. Height in cm 0,5
Master Carton Length in cm 41,7
Master Carton Width in cm 35,9
Master Carton Height in cm 36,9
Produkt Informationen
Europeans Customs Tariff Nr. 85437090990
Country of Origin China
Packaging Material Plastic/Paper
VPE Informationen
Master Packaging Unit (pcs) 50
Secondary Packaging Unit (pcs) 1
Electric signal
Maximum data rate 225MHz
Maximum pixel clock / bandwidth 2.25 Gbps
Digital video formats Max. WUXGA (1920x1200) / 2K or 1080p@60 / FullHD
Digital audio formats Audio-Return-Channel (HEC), Dolby Digital Plus etc
Power consumption 5V DC via USB-C
Enclosure PVC
Dimensions 60 x 40 x 20 mm
Signal transmission
Supported standards HDMI 1.4a, EDID, HDCP, USB, CEC
Supported Colors 12bit Deep Color,x.v.Color, etc.
Supported audio standards All standards via HDMI input incl. Dolby True HD & DTS Master Audio
Maximum resolution 1080p @60Hz, 12bit
Safety CE, FCC, WEEE
Colour black
Delivery Content
1x HDFury Doctor HDMI
1x USB Cable
