HDTools (2) DVI Inputs to (10) DVI Output Distribution Amplifer - Full HD

  • Artikel-Nr. PRO-DD-2100
  • Su precio *

Todos los precios sin IVA

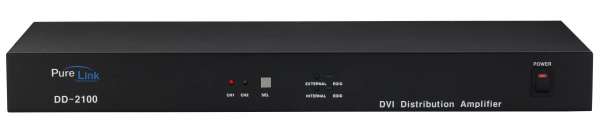

PRO-DD-2100 2x10 DVI Distribution Amplifier
The PRO-DD-2100 enables you to switch 2 digital signals and regenerate the signal up to 10 DVI displays. The DD-2100 is built to be the most reliable device of its kind and offers a unique and affordable solution for installations where digital switching is a must.
High Quality Picture - No Signal Loss and Digital Noise Free
Our Distribution Amplifiers are built to deliver the highest quality picture preserving the native resolutions of the video sources without any signal loss.
At the same time, the digital noises that may affect the picture quality will be eliminated.
Due to the nature of the digital signals and passing through multiple stages of connection when using distribution amplifiers, it is important to eliminate the digital noises and boost the signal strength to preserve/enhance the video signal quality.

Signal Amplification for signal reliability and long length signal transmission.
Our 12V power adapter supplies adequate power to amplify the video signals from the video source.
This is necessary as the overall length from the video source to the displays is longer when using the distribution amplifiers (distance from the video source to the distribution amplifier + distance from the distribution amplifier to the display).
In most cases, the overall distance that the DVI signal will need to travel is over 10ft.
Due to the nature of DVI signals, amplification is necessary to warrant the video quality and reliability.
Without amplification, there may be occasional blackouts or blinking effects.
With this amplification feature, your video display can be extended up to 30ft using our fiber optical DVI cables.

HDCP(High-bandwidth Digital Content Protection) Compliant
Our DVI distribution amplifiers are fully HDCP compliant.
Many video sources such asDVD players and Satellite/Cable Receivers are HDCP encrypted.
For these video sources to be displayed correctly, HDCP compliant devices(e.g., TV, DVI Switch, distribution amplifier) are required.
Features
Supports Full 1080p With Deep Color Depth
Signal Regeneration allows longer distance connectivity with copper cables (30 ft at 1080p)
Active HDCP on every output for quicker boot-up, reliable sync without crashes
Flexible EDID-Improves compatibility with all HD displays worldwide
Robust Construction-Solid Steel chassis, rackmountable (included)
Logistics Information
Product 1. Net Weight in Kg 1,72
Product 1. Gross Weight in Kg 1,92
Product 1. Length in cm 42,5
Product 1. Width in cm 16,5
Product 1. Height in cm 4,5
Packaging 1. Length in cm 31,7
Packaging 1. Width in cm 40,6
Packaging 1. Height in cm 6,86
Produkt Informationen
Europeans Customs Tariff Nr. 85176200000
Country of Origin China
Packaging Material Plastic
VPE Informationen
Master Packaging Unit (pcs) 1
Connections
Input connector(s) 2x DVI Single-Link
Output connector(s) 10x DVI Single-Link
Power connector(s) DC 12V 3A
Electric signal
Standards DVI Single-Link
HDCP Si
EDID Si
Mechanical
Power supply Max. 13W
Operating temperature 10°C - 40°C
Storage temperature -20°C - 45°C
Humidity 10% - 80% (kondensfr
Dimensions 425 x 165 x 45 mm
Signal transmission
Maximum resolution Max. 1920x1200 (WUXGA)
Weiteres
Safety CE, FCC
MTBF 50.000 hours
Colour Black
Delivery Content
1x PRO-DD-2100 DVI Distribution Amplifier Unit
1x 12V Power Supply
1x AC Power Cord
1x User manual
