4K 18Gbps HDMI Audio De-Embedder

4K 18Gbps HDMI Audio De-Embedder

  • Artikel-Nr. PT-C-HDADE
  • EAN 4251364706978
  • Din pris *

Alle priser er plus moms.

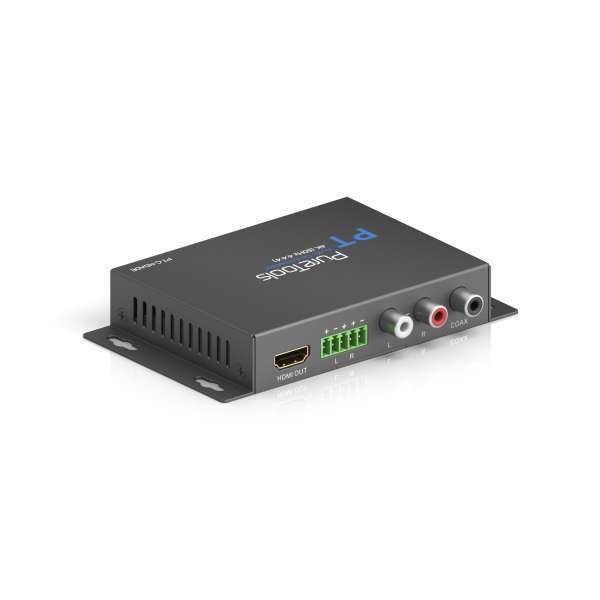

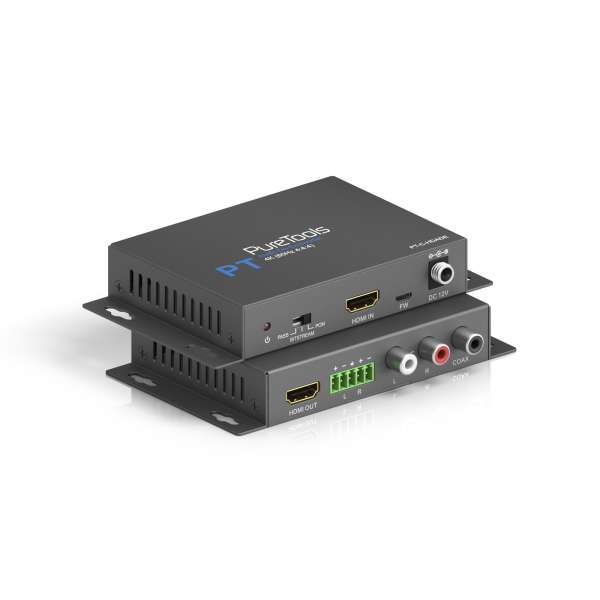

HDMI Audio De-Embedder 4K (60Hz 4:4:4) with HDR
The PT-C-HDADE is an HDMI2.0a audio extractor with a variety of audio extraction ports supporting the full HDMI bandwidth making it ideally suited for home cinema and high end professional installations. 18Gbps video is passed through and audio is extracted from the stream in both digital and analogue formats. The device has the ability to mask the display EDID so that if for instance, the TV does not support Dolby Digital audio, DTS can still be extracted and passed directly to an AVR. This intelligent feature ensures compatibility with any 4K TV or monitor.
Extracts PCM, Dolby Digital, DTS, and DTS-HD regardless of the audio format supported by the display
Extracts PCM, Dolby Digital, DTS, and DTS-HD regardless of the audio format supported by the display. Audio is output via balanced Phoenix, stereo RCA or digital COAX making it ideal for pro home cinema.

Designed for flawless operation and simple usage. CEC pass through simplified control and EDID management including fixed EDID masking for AVR compatibility ensure impeccable communication between devices.

Compatible with the latest Ultra High Definition sources and displays, displaying signals at resolutions up to 4K @60 4:4:4 (18Gbps) and shows crystal clear HDR media to its best ability.

All of this technology is packed into a slim line enclosure, for installation into furniture or snugly behind the TV.
Audio de-embedding from 1 HDMI signal to 1 HDMI and 2 D/A audio outputs
Supports 18Gbps for resolutions up to 4K UltraHD 60Hz
3 audio modes: pass-through, bitstream and PCM, formats up to DTS-HD / TrueHD
Pass-through for CEC, EDID management for increased AVR compatibility
No screen connection required for audio output
Logistik Informationen
Produkt 1. Gewicht (Netto Kg) 0,24
Produkt 1. Gewicht (Brutto Kg) 0,50
Produkt 1. Größe (Länge cm) 12,9
Produkt 1. Größe (Breite cm) 7,7
Produkt 1. Größe (Höhe cm) 2,15
Verpackungsgröße 1. (Länge cm) 19,5
Verpackungsgröße 1. (Breite cm) 14,5
Verpackungsgröße 1. (Höhe cm) 6,5
VPE 1. Größe (Länge cm) 41
VPE 1. Größe (Breite cm) 31
VPE 1. Größe (Höhe cm) 38
Produkt Informationen
Europeans Customs Tariff Nr. 85437090990
Ursprungsland China
Verpackungsmaterial Plastic/Paper
VPE Informationen
Verpackungseinheit (VPE) 20

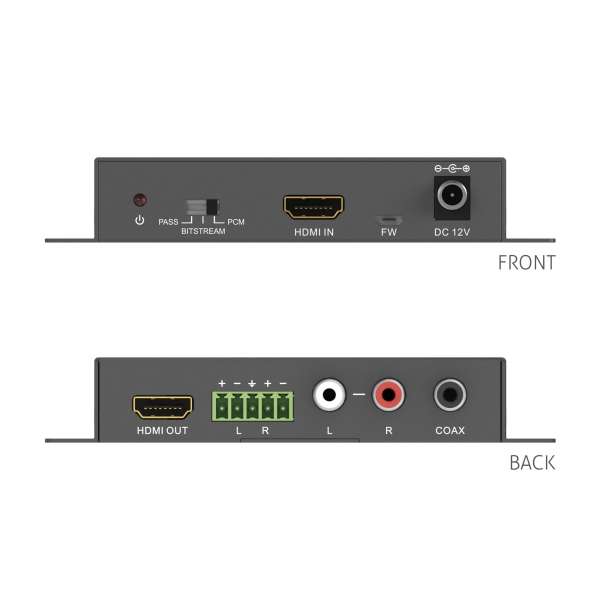

Eingänge 1x HDMI
Ausgänge 1x HDMI, 1x Digital Audio (RCA), 1x Analog Stereo (L/R RCA), 1x Analog Bal. Stereo (5 pin Phoenix)
Stromanschluss 12VDC 1A
Steuerungsanschluss Control Port 1x FW Port (USB Micro), Button Contro
Mechanische Daten
Stromversorgung 3W max.
Stromverbrauch 12VDC 1A - Locking B
Betriebstemperatur -10° C ~ 55° C
Luftfeuchtigkeit 10% ~ 90%
Außenmaß 129mm x 21.5mm x 77m
Sicherheit CE, FCC
Farbe black
Garantie Optional 5 Years Manufacturer's Warranty
1x PT-C-HDADE HDMI 2.0a Audio Extractor
1 x Power Adaptor (12VDC,1A)
4 x Plastic Cushions
1 x 5-pin Phoenix Connector
1 x User Manual
