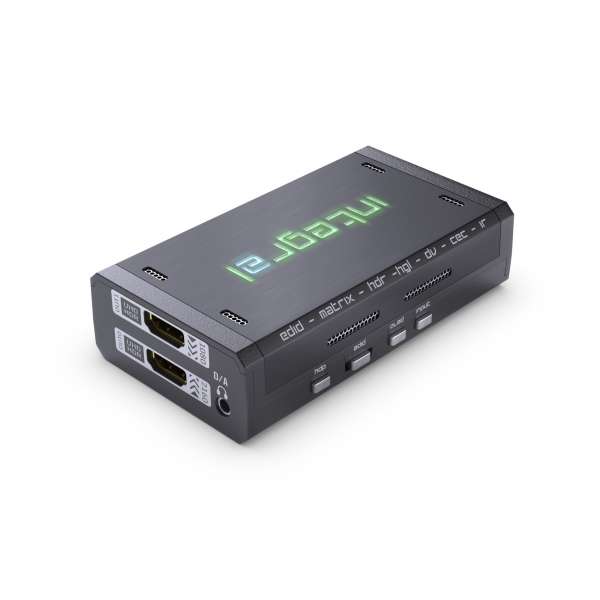

Integral 2 - 2x2 4K 18Gbps HDMI Matrix Switcher with Scaler and Converter
Integral 2 - 2x2 4K 18Gbps HDMI Matrix Switcher with Scaler and Converter
- Artikel-Nr. HDF0120
- EAN 686603105313
- Voor meer informatie kunt u log in.
- Uw Prijs *
Alle prijzen Excl. BTW
Beschikbaar
RESOURCES
- Manufacturer Website
- Manufacturer Product Page
- OneAV Catalogue Pages
- User Manual (EN)
- App-Download (Android)
- App-Download (iOS)
- Silabs Driver (4.0.0)
- Silabs Driver (3.9.2)
- GUI Software (v1.14) / Firmware Updater / IR Codes List / RS232 Commands
- EDID Collection
- API/DLL Package
- 4K Total Control APK + XML File for Custom APP menu
- Icons Viewer
- Tutorial Video "OSD operation" (YT)
- Tutorial Video "Lock / Unlock State" (YT)
- YouTube Playlist
HDFury - Professional A/V products for intense applications
HDFury HDF0120 "Integral 2" - 2x2 HDMI 2.0b (Level A) Switcher / Splitter / Matrix / Scaler / Converter incl. Audio ExtractorBased on the highly reliable Vertex technology, HDFury Integral 2 is now available and allows any source (BluRay, UHD BluRay, media players, satellite receiver, game consoles, PCs, etc.) to be shown on any of the connected displays while the HDMI audio from any source can be played on any AVR via analog or optical connection. With built-in scalers you dont have to miss any 4K HDR signal because of older legacy equipment in the signal path. It supports any video and/or audio signal in existence today including DV, LLDV, HLG, HDR10+, DTS:X, ATMOS and many more.
HDFury Solves Common A/V Installation Problems
HDFury "Integral 2" - HDMI Splitter / Switcher / Matrix / Scaler / Converter / Extraktor with 2x HDMI-A Inputs and 2x HDMI-A OutputsHDFury Integral 2 is a 4K@60Hz, 4:4:4, 600MHz, 18Gbps, HDMI2.0b Level A, smart converter for interoperability between legacy equipment, for integrators, content creators, calibrators, streamers, digital entertainment centers, UHDTV retail, show sites, data centers, schools, conference or home cinema.HDFury Integral 2 is capable of converting HDCP, FHD<>UHD Resolution, Chroma, Color Depth, Color Space and more in order to individually feed any of the connected sinks at their best capabilities. GUARANTEED!User can pass thru Dolby Vision or HDR from Source to TV while sending Dolby Atmos or any sound format to a non DV or HDR capable AVR.Featuring a true 2×2 18Gbps HDMI matrix/splitter/switcher/scaler/converter/audio de-embedder, HDFury Integral 2 can also act as an Infoframe and HDR metadata Injector and Extractor, HDCP Doctor, CEC Commander, HDMI Doctor, EDID manager and more…It supports any HDMI, any HDCP and any HDR up to HDR10+, HLG or Dolby Vision, including LLDV.HDMI Audio is compatible with any sound format in existence today.It provides full EDID management for an optimal handling of todays wide variety of sources and displays and comes with OSD, IR, RS232 and stereo or optical audio output for ARC up to Atmos®, DD+®, Dolby® 7.1, DTS® and LPCM for capable sink.Instantly get and feel the HDMI supervisor power through OSD, Windows GUI, RS232, iOS/Android APP (with GoBlue) and more…Note that it have the best 18Gbps signal integrity ever seen for a 5v device, thus ensuring seamless integration even with marginal cables that would otherwise not work with others devices for high bandwidth signals.If you ever saw the following statement: "this TV does not support HDCP 2.2. Make sure you have HDCP 2.2 capable TV" or a similar HDCP error message, make sure you never see it again with HDFury Integral 2!Overview:- Individual switching of input and output signals- Two separate A/V channels, that can be managed individually- Input: 2x HDMI-A / Output: 2x HDMI-A -HDMI 2.0b, Level A- Full signal conversion to perfectly match the sinks EDID- Resolutions up to UltraHD / 2160p / 4K@60Hz at 4:4:4 600MHz possible with 18Gbps bandwidth- HDCP version is converted in parallel on both channels for all HDCP versions to work, incl. HDCP 2.2 source to HDCP 1.4 display conversion- Integrated audio extraction via 3.5mm combo jack for analog stereo and/or optical S/PDIF- Total Control" Bluetooth App available for easy control via smartphone and tablet- HDMI/CEC "Total Commander" allows the configuration of own CEC commands for connected devices via Smartphone App, e.g. to switch off connected devices simultaneouslyDetailed Features:All setups suitabilityIntegral2 supports any HDMI, HDCP and HDR sources or sink and operate in-between to ensure all your equipment work at their best capabilities.AutoSetup WizardThink its complicated? Integral 2 can suit any user needs with ease. Simply connect sources and sink devices in the right port and add power, Integral2 does the rest.Unlock HDCP 2.2Get all advantages from HDCP2.2 sources and keep or convert them per channel to suit any HDMI or HDCP sink.Info is EverywhereWhether it is on OSD, Windows GUI or via Android/iOS APP with the optional GoBlue, your setup info is always available.Digital DoctorAny EDID related issues, HTPC issues or HDMI/HDCP handshake, compatibility or revision issues can be solved with Integral2.iOS & Android APPControl Integral2 using your tablet or smartphone with the optional GoBlue Bluetooth and IR dongle.Upscale PortUpscaling from FHD to UHD up to 18Gbps is available to display your 1080p sources at 2160p on your native 4K display.Downscale PortConnect any FHD sink in any UHD setup, play 4K HDR on main stream, and feed your AVR or older display with a 1080p stream. For HDR to SDR, see here.18Gbps Splitter1 input replicated to 2 outputs, each individual output can be used to upscale or downscale based on your setup needs.600 Mcsc MatrixIntegral2 can process two 4K HDR signals up to 18Gbps simultaneously and apply scaling individually per channel.Windows GUIAccess the most advanced Windows GUI we ever created, control your Integral2 unit with ease and style through hundreds of options.Lab & Studio ToolkitPublic API/DLL access and extensive control to extract, edit and inject HDR metadata, AVI and VSIF Infoframe. Read SPD, Audio, Vendor Specific and more.
Features |
Matrix switching of 2 HDMI signals to 2 HDMI outputs |
Supports HDMI 2.0b with 18Gbps for resolutions up to 4K UltraHD 60Hz incl. HDR |
Configurable signal conversion of resolution, color management and HDCP |
Up & downscaler, HDR management with modification of HDR metadata |
Control via buttons, RS232, CEC and Windows-GUI and app (via GoBlue) |
Logistics Information | |
Product 1. Net Weight in Kg | 0,24 |
Product 1. Gross Weight in Kg | 0,31 |
Product 1. Length in cm | 11 |
Product 1. Width in cm | 6 |
Product 1. Height in cm | 2,8 |
Packaging 1. Length in cm | 20 |
Packaging 1. Width in cm | 16 |
Packaging 1. Height in cm | 7 |
Product Information | |
Europeans Customs Tariff Nr. | 85437090990 |
Country of Origin | China |
Packaging Material | Plastic |
VPE Informationen | |
Master Packaging Unit (pcs) | 1 |
Connections | |
Input connector(s) | 2x HDMI-A (2.0b, Level A) |
Output connector(s) | 2x HDMI-A (2.0b, Level A), 1x 3.5m Combo (Audio, Stereo / Optical) |
Power connector(s) | 1x MiniUSB 5V |
Control connector(s) | 1x IR, 1x RS232, 1x (Mini)USB |
Electric signal | |
Maximum data rate | 18 Gbps |
Maximum pixel clock / bandwidth | 600MHz |
Standards | HDMI 2.0b, Level A |
Digital video formats | max. 4K@60Hz |
Digital audio formats | Up to Atmos®, DD+®, Dolby® 7.1, DTS®, LPCM |
HDCP | Ja |
CEC | Ja |
EDID | Ja |
Mechanical | |
Power consumption | miniUSB |
Enclosure | Plastic |
Dimensions | 100x60x30 mm |
Signal transmission | |
Supported standards | HDMI 2.0b Level A, HDCP 2.2, IEC61937 |
Transmission modes | Pass-Through, Downscaling, Upscaling |
Supported Colors | Up to HDR10+, HLG, Dolby Vision, LLDV |
Supported audio standards | Up to Atmos®, DD+®, Dolby® 7.1, DTS®, LPCM |
Maximum resolution | 4K60, 4:4:4 |
Further standards | App Control, CEC Commander, HDR Injector and many more |
Weiteres | |
Safety | CE, FCC |
Colour | black / green |
LEVERINGSOMVANG |
1x HDFury Integral 2 |
1x PSU |
1x USB-MiniUSB Cable |
1x Quick-Start-Guide |
