4K HDMI to USB Video Capture Dongle
The sonero video capture dongle X-AVT200 converts an incoming HDMI signal into an H.264 compatible USB 2.0 signal that can be captured or streamed directly on the PC. The compact dongle with HDMI-A female input and USB-A 2.0 male output connects directly to a USB port on the PC and is also supplied with power via the same port, so that no separate power supply is necessary. On the input side, HDMI 1.4 AV signals with up to 10.2 Gbps and a resolution of 4K@30Hz can be captured and output at max. 1080p@60Hz at the USB-A side. Any signal that meets these specifications and is not copy-protected via HDCP can be processed. Thanks to the universal H.264 video codec, it is Plug&Play compatible with the vast majority of capture software, such as OBS.
sonero – High-Grade Products for the Consumer Market

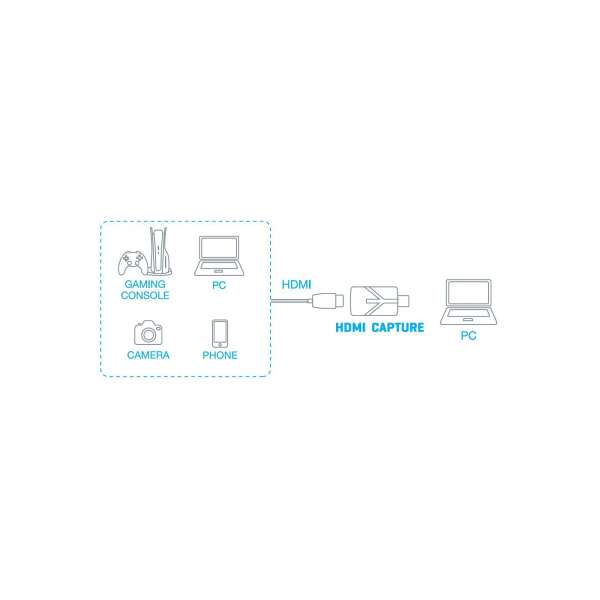

X-AVT200 is an HDMI to USB video capture dongle that allows to capture external HDMI signals directly on the PC / laptop. PCs and laptops do not normally have an HDMI input. This means that external video sources, e.g. from another PC or a games console, cannot be recorded directly or streamed via the PC. The X-AVT200 from sonero closes exactly this gap. The video capture dongle converts an HDMI input signal into an H.264 compatible USB signal that is compatible with all PCs and most software such as OBS (Open Broadcaster Software). This allows windows and image sections to be easily arranged and a combined signal from e.g. webcam, desktop and external HDMI source to be recorded to a file or streamed to appropriate platforms.

On the input side, HDMI 1.4 AV signals with up to 10.2 Gbps and a resolution of 4K@30Hz can be captured and output at max. 1080p@60Hz at the USB-A side. The colour spaces RGB, YCbCr and YUV (4:2:0 to 4:4:4) are supported with 8 / 10 /12 bit at 1080p resolution, or max. 8 bit at 4K@30. The incoming HDMI audio signal is processed in LPCM 2.0 format. Any signal that is not HDCP copy-protected can be processed. This includes PC, Android devices and game consoles such as the PlayStation 5 or Nintendo Switch. The integrated automatic detection of the input video format allows for universal compatibility and enables quick setup without manual configuration. Thanks to the use of the universal H.264 video codec, direct Plug&Play compatibility with OBS (Open Broadcaster Software) as well as the vast majority of capture software is assured. The USB interface communicates according to the USB 2.0 standard and is therefore fully compatible with all older and newer hardware running Windows, Linux or macOS.

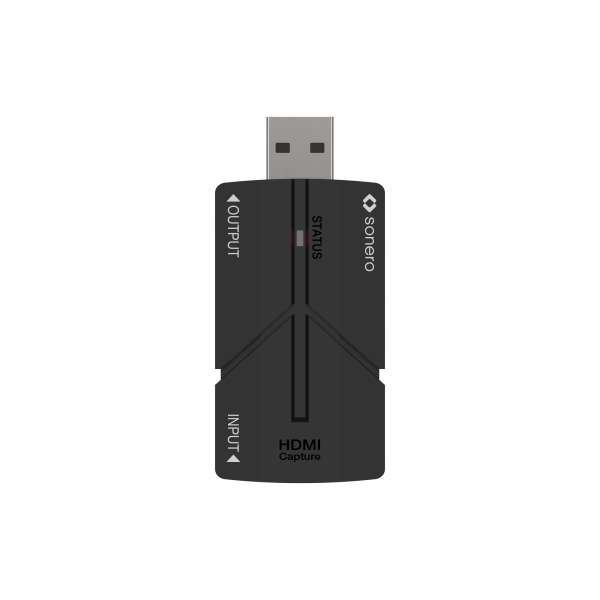

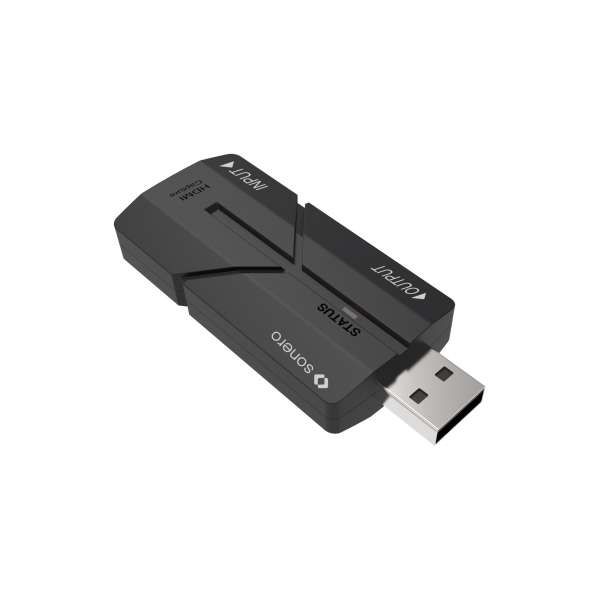

The dongle in a plastic housing is very compact, measuring 51 x 31 x 13mm and weighing 16g. It is connected to the PC without cables and directly powered via USB consuming max. 1.75W. A separate power supply is therefore not required. The LED on the upper side of the dongle indicates the connection status.

A bilingual manual (DE / EN) is included in the delivery, which contains exact step-by-step instructions for setting up the dongle with OBS.

sonero - Connected with Quality
The wide sonero range represents reliable premium consumer electronics and accessories at the cutting edge of technology. The exceptional price and performance ratio is only excelled by the sonero product quality itself. Unaltered signal processing and transmission is a requirement for sonero products, not a nice-to-have.
Recording and streaming of external HDMI AV signals via USB
Supports 10.2Gbps for resolutions up to 4K UltraHD 30Hz
HDMI-A female input to USB-A male output
H.264 codec, USB 2.0 data transfer, any signal without HDCP is processed
Extremely compact dongle enclosure, 5V power supply directly via USB
Logistics Information
Product 1. Net Weight in Kg 0,02
Product 1. Gross Weight in Kg 0,02
Product 1. Length in cm 6,5
Product 1. Width in cm 3
Product 1. Height in cm 1,2
Packaging 1. Length in cm 13,5
Packaging 1. Width in cm 6,5
Packaging 1. Height in cm 3,2
Master Carton Length in cm 36
Master Carton Width in cm 24
Master Carton Height in cm 37
Product Information
Europeans Customs Tariff Nr. 85437090990
Country of Origin China
Packaging Material Plastic/Paper
VPE Informationen
Master Packaging Unit (pcs) 100
Electric signal
Maximum data rate 10.20 Gbps
Digital video formats Input up to 4K@30, output up to 1080p@60
Digital audio formats LPCM 2.0
Power supply max. 1.75 W
Power consumption 5V via USB
Operating temperature 0°C - 40°C
Storage temperature -20°C - 60°C
Humidity 20% - 90%
Enclosure Plastic
Dimensions 51 x 31 x 13 mm
Signal transmission
Supported standards HDMI 1.4, HDCP 1.4, USB 2.0
Supported Colors RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0, 8 / 10 / 12 bit
Supported audio standards LPCM 2.0
Maximum resolution Input 4K@30, Output 1080p@60
Colour black
1x X-AVT200 4K HDMI to USB Video Capture Dongle
1x User Manual
