F-Connector 7.0mm - EasyFit - 50 pcs
F-Connector 7.0mm - EasyFit - 50 pcs
- Artikel-Nr. EF010-50
- EAN 4260134126175
- Voor meer informatie kunt u log in.
- Uw Prijs *
Alle prijzen Excl. BTW
RESOURCES
Fitting F-Connectors for all Coax Cable Diameters
PureLink EF010-50 Easyfit Innovative F-Connector for Coax Cables with a diameter of 6,8mm up to 7,00mm for Field-Termination, Marking: red, 50pcs setThe PureLink F-connectors included in the Easyfit Series enable quick and easy termination of coaxial cables.Avoid the struggles of conventional coaxial plugs, like loose contacts and damaged braids.Make it fast: Cut & fit in 30 seconds!
PureLink Easyfit - The Innovative Solution for Effortless Field-Termination of Coax Cables

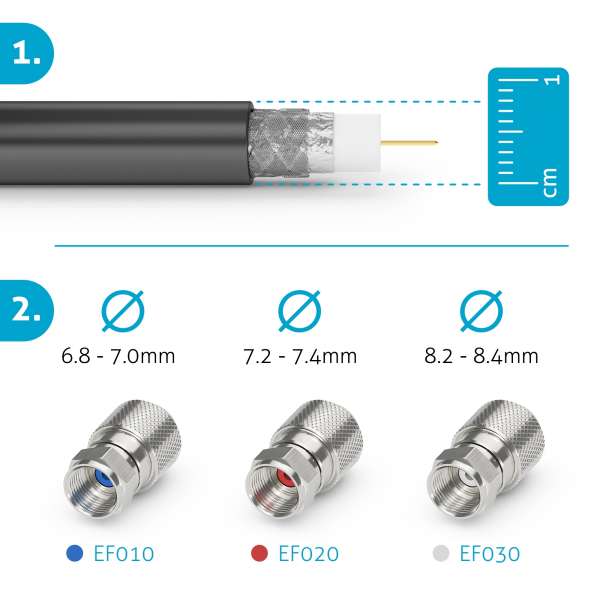

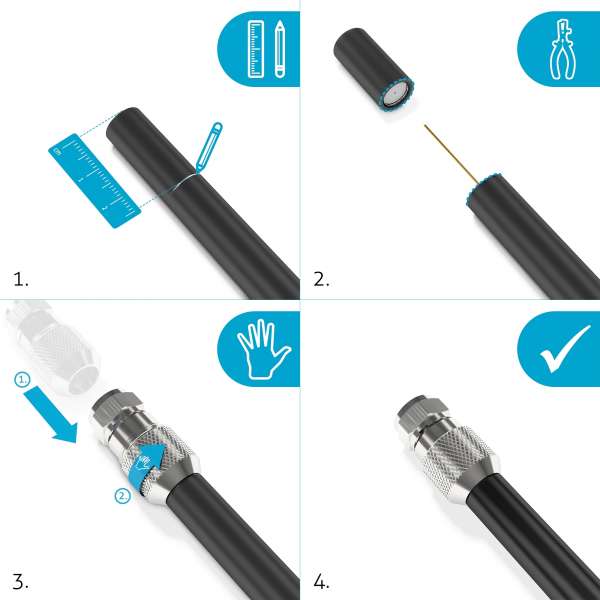

A simple wire stripper or a standard cutter knife as well as your own hands are enough to permanently and perfectly connect the F-connector to the cable. The whole thing in only about 30 seconds and 3 simple steps!The clean and professional solution for permanently high quality self-made cable connections.Easyfit from PureLink - F-connectors newly defined and simply installed.Finding the right plug for your cable - We make it easy for you:A color-coded ring in the F-connector helps you to find the right connector.1. Determine the diameter of your existing cable2. Select the correct PureLink Easyfit F-connector using the color code:PureLink EF010 for cables with a diameter of 6.8mm to 7.0mm (blue ring)PureLink EF020 for cables with a diameter of 7.2mm to 7.4mm (red ring)PureLink EF030 for cables with a diameter of 8.2mm to 8.4mm (white ring)
| Features |
| Innovative, effortless assembly of satellite and coaxial cables. Professional results in 30 seconds and only 3 steps |
| More than just an F-connector - Practical 50pcs pack of the PureLink EF010 Easyfit F-connector for cables with a diameter of 6.8mm to 7.0mm (blue ring) |
| A simple cable stripper or a standard cutter knife and your own hands are enough for permanentlx and perfectly connecting the F-connector to the cable |
| Determine the diameter of your existing cable and select the right PureLink Easyfit F-connector using the color code |
| EF010 for cable diameters from 6.8mm to 7.0mm (blue ring) || EF020 for cable diameters from 7.2mm to 7.4mm (red ring) || EF030 for cable diameters from 8.2mm to 8.4mm (white ring) |
| Logistics Information | |
| Product 1. Net Weight in Kg | 0,01 |
| Product 1. Gross Weight in Kg | 0,01 |
| Product 1. Length in cm | 2 |
| Product 1. Width in cm | 1,1 |
| Product 1. Height in cm | 1,1 |
| Packaging 1. Length in cm | 18 |
| Packaging 1. Width in cm | 13,5 |
| Packaging 1. Height in cm | 5,5 |
| Product Information | |
| Europeans Customs Tariff Nr. | 85369010000 |
| Country of Origin | China |
| Packaging Material | Plastic |
| VPE Informationen | |
| Master Packaging Unit (pcs) | 1 |
| Connections | |

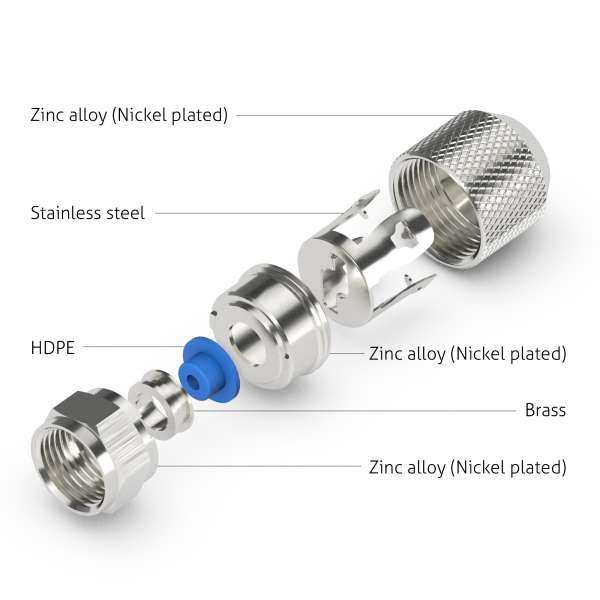

| Connector material | Nickel plated zinc alloy, stainless steel, brass, |
| Contact material | Nickel plated, long-life design |
| Connector 1 | F-Connector 7,0mm |
| Contacts | Nickel plated, long-life design |
| Electric signal | |
| Standards | Koaxial |
| Weiteres | |
| Safety | CE, FCC |
| Colour | Metal |
| Warranty | 3 Years Manufacturer's Warranty |
| LEVERINGSOMVANG |
| 1x EF010-50 PureLink EF010-50 Easyfit F-Connector, Marking: red, 50pcs set |
Dokumente "F-Connector 7.0mm - EasyFit - 50 pcs"
