Premium optical S/PDIF Toslink Cable with Angled Connector – 2.00m

Premium optical S/PDIF Toslink Cable with Angled Connector – 2.00m

  • Artikel-Nr. S-OC110-020
  • EAN 4251364729762
  • il tuo prezzo *

Tutti i prezzi sono IVA esclusa

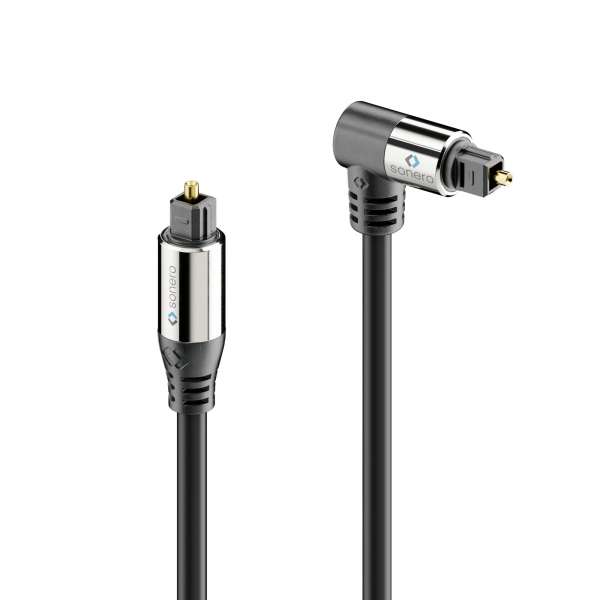

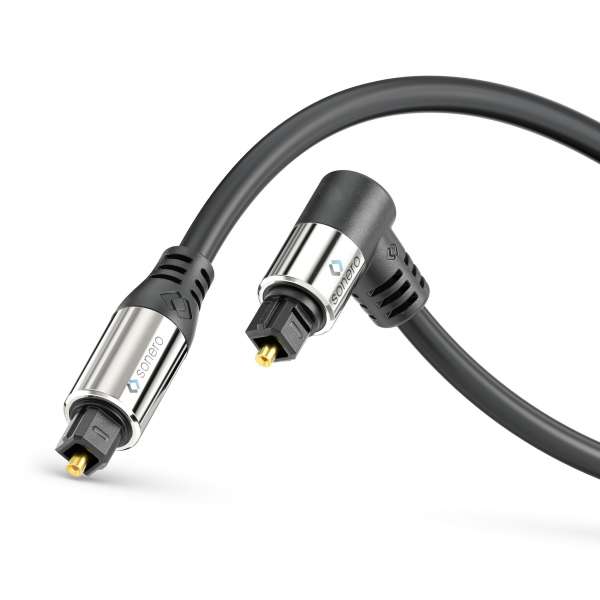

Premium optical S/PDIF Toslink Cable with Angled Connector – 2.00m
The S-OC110-020 is a 2.00 meter long Premium Toslink audio cable for the transmission of digital, optical S/PDIF signals. It is equipped with a gold-plated plug tip, chrome-plated aluminium connectors as well as a flexible bend relief and features straight S/PDIF Toslink connectors on one side plus a 90° angled S/PDIF Toslink connector on the other side. The high quality inner optical fiber is 1.00mm in diameter, has a 2.40mm PE shielding and a PVC jacket with a total outer diameter of 5.00mm. The optical audio cable from sonero allows for optimal, durable transmission quality and is suitable for connecting digital audio devices using an optical S/PDIF connection.
sonero – High-Grade Products for the Consumer Market
The sonero digital audio range S-OC100 to S-OC120 (cables) and S-OCA001 (splitter) includes cables and adapters for the transmission of digital, optical audio signals via optical fibers. The cables and splitters enable the transmission of digital, optical Toslink S/PDIF audio signals.

The cables, including the 15cm portsaver cable of the splitter, all feature a fiber conductor with a diameter of 1.00mm, a 2.2mm thick shielding made of PE material and an outer jacket made of high-quality PVC with varying outer diameters. The plugs of all cables and adapters are made of chrome-plated aluminium, feature a gold-plated plug tip and a flexible bend relief, which removes strain from the plug and thus causes less wear and tear. Simultaneously, it prevents unintentional exceeding of the minimum bending radius at the connector. Perfect signal transmission is assured at all times and the cable incl. plug is efficiently protected against corrosion at the same time.

All cables can be used bidirectionally, so there is no need to pay attention to the plug direction.

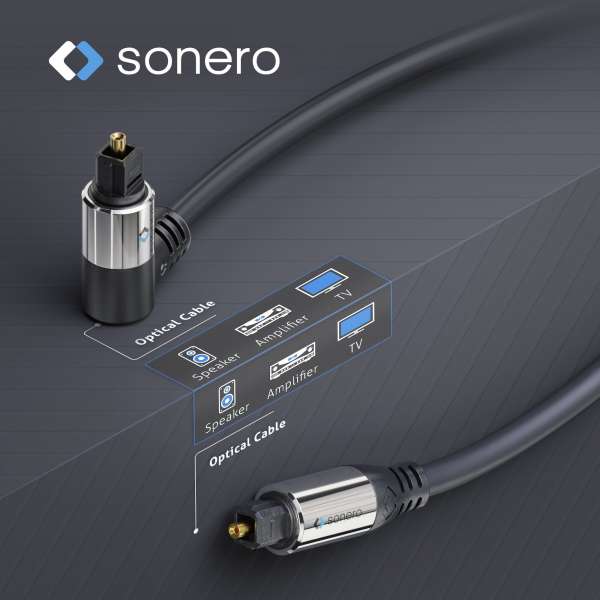

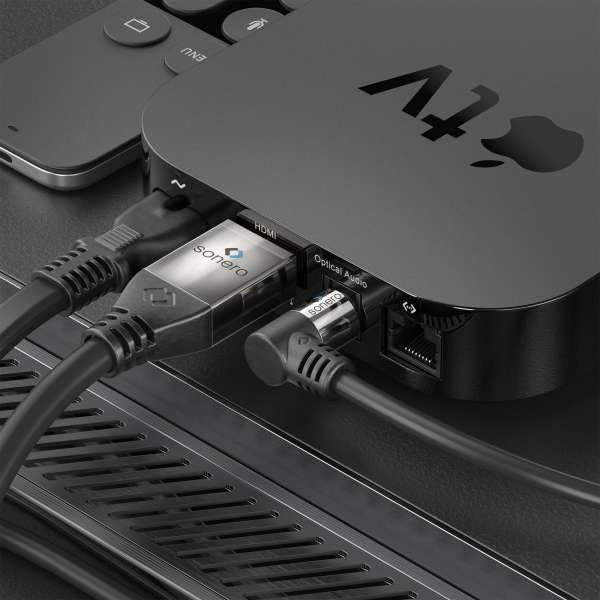

The digital, optical audio cables can be used for S/PDIF Toslink audio signals, e.g. as a connection between playback devices such as TV receivers, BluRay players, streamers, etc. and a replay device such as an audio amplifier.
They are available in lengths between 1.00 meters and 20.00 meters.

The cables and splitters in this range at a glance:

Cable:
S-OC100: Toslink connector male straight to Toslink connector male straight, Ø 6,00mm
S-OC110: Toslink connector male straight to Toslink connector male 90°, Ø 5,00mm
S-OC120: Toslink connector male 90° to Toslink connector male 90°, Ø 5,00mm

splitter:
S-OCA001: Toslink connector male straight to 2x Toslink connector female, Ø 5,00mm

sonero - High-Grade Products for the Consumer Market
The sonero Premium Series products make the daily work of technical professionals easier and allow home users to enjoy media without distraction. With sonero Premium, theres always a high-quality solution available, no matter what kind of connection youre looking for. The extensive product range offers pristine transmission of audio, video and data and offers a selection of reasonable every-day accessories.
Features
Transmission of digital audio signals via S/PDIF Toslink
Gold plated plug tip, chrome plated aluminium connectors, flexible bend relief

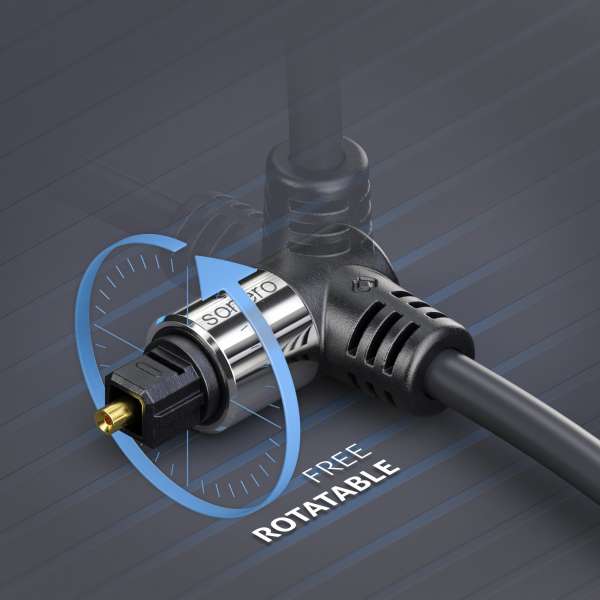

S/PDIF Toslink male straight to S/PDIF Toslink male 90° angled
1.00mm optical Fiber, 2.20mm PE shielding, PVC jacket, Ø 5.00mm
Optimal and durable transmission quality, e.g. for home cinema, AV receivers, etc.
Logistics Information
Product 1. Net Weight in Kg 0,00
Product 1. Gross Weight in Kg 0,00
Packaging 1. Length in cm 20
Packaging 1. Width in cm 15
Packaging 1. Height in cm 0,1
Master Carton Length in cm 40
Master Carton Width in cm 30
Master Carton Height in cm 30
Produkt Informationen
Europeans Customs Tariff Nr. 85447000990
Country of Origin China
Packaging Material Plastic
VPE Informationen
Master Packaging Unit (pcs) 80
Connections
Connector material Chrome-plated aluminium
Shielding Si
Connector 1 S/PDIF Toslink male straight
Connector 2 S/PDIF Toslink male, 90° angled
Dimensions Con.1 ca. 32.00 x Ø 11.70 mm
Dimensions Con.2 ca. 32.60 x 21.90 x Ø 11.70 mm
Cable
Type Round Cable
Lenght 2.00m
Inner conductor material Fiber
Number of shieldings Si
Shielding 1 PE shield
Outer material PVC
Outer diameter 5.00mm
Signal transmission
Supported audio standards Digital S/PDIF audio
Weiteres
Safety CE, ROHS, REACH, WEE
Colour black
Delivery Content
1x S-OC110-020 Premium optical S/PDIF Toslink Cable with Angled Connector – 2.00m
Dokumente "Premium optical S/PDIF Toslink Cable with Angled Connector – 2.00m"
