HDFury - Professional A/V products for intense applications

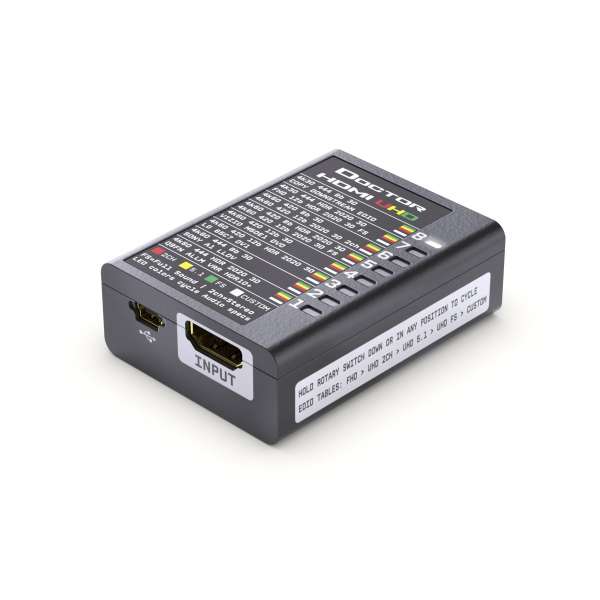

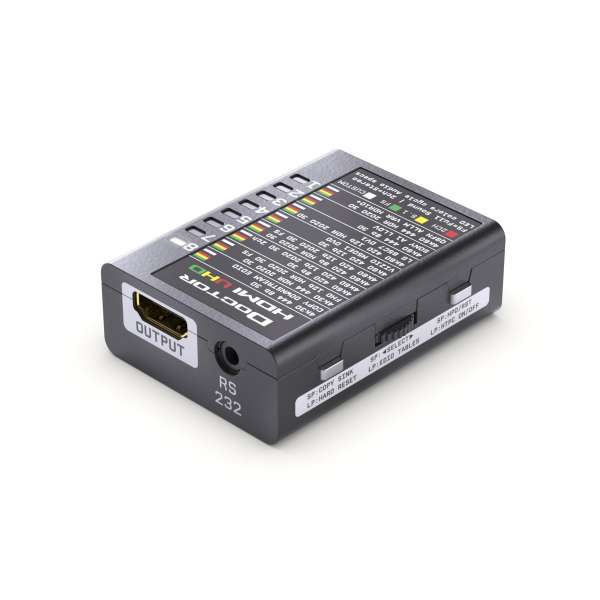

HDFury HDF0130 "Dr. HDMI 4K" - HDMI EDID manager / emulator, solves handshake problems up to HDMI 2.0b
Dr HDMI 4K can help to solve most HDMI issues regarding handshaking, compatibility and/or any EDID related issue. It helps to keep a source "always on" or be tricked into a desired and pre-defined state which is especially useful for system integrators. Dr HDMI 4K can also boost signal integrity and extend the +5V signal through a HDMI/DVI-D chain, e. g. for active HDMI cables. It can work hand in hand with other HDFury products to extend the overall compatibility range. It can also be used to limit the source output resolution. Dr HDMI 4K acts as an EDID manager, HDMI/DVI-D emulator and repeater that comes with pre-defined presets as well as user programmable banks, a sink EDID sniffing bank, HTPC mode and many more features.
HDFury Solves Common A/V Installation Problems
Doctor HDMI 4K will solve most HDCP/HDMI issues by just being connected between source and display. Once connected it can be set on the fly to perform specific EDID and Hot plug event.
This device also has internal logic to support HDCP streams by sniffing all DDC packets and filtering the EDID requests but passing all HDCP handshakes. The PC software can be used to edit any of the parameters on the fly or it can be used to load/save any customer EDID. Power is either drawn from the HDMI connector or from the USB port, if connected. Firmware upgrades can be sent with a single .exe file automatically so no additional software is needed.


Highlight Features
- Unique 18Gbps/600MHz support with 0ms latency
- Solve Most HDMI issues !
- Fix HDMI handshaking issue
- EDID Manager and Detective feature
- Easy EDID table manipulation via USB port
- HDMI/DVI-D emulator and repeater
- Maintain 4K, 3840×2160, 2160p video without losing sync.
- 40 Predefined Banks (4K HDR, 4K DV, 4K HLG, 4K HDR10+, FullHD 3D, FullHD, 1080i, 720p, etc..)
- 7 User programmable EDID Banks
- All DV modes supported including DV mode 0, mode 1, mode 2 and LLDV
- Sink EDID sniffing feature
- Extend signal integrity up to 50 meters !
- HTPC mode to avoid detection of the connected sink status
- +5V Injector feature to power active cable
- RS232 Control for remote administration and integrators setup
- HDCP compliant

" Dr. HDMI 4K" Technical Specs
- HDMI 2.0b compliance
- 18Gbps/600MHz support with 0ms latency !
- 40 EDID banks (8 FHD, 24 UHD, 7 user programmable, 1 copy from Sink device)
- Reset HPD-event on the fly !
- Up to 50 meters cable loss compensation
- Keep sources HDMI/DVI-D output active
- USB upgradable and flashable from computer
- User programmable EDID Banks
- Sink EDID sniffing feature
- Extand signal integrity up to 50 meters !
- HTPC mode (avoid Windows detection of output device status)
- Any resolution including HDMI standards
- Video Bandwidth : 18 Gbps
- Video support: Single-link 600MHz
- Audio support: Atmos, DTS-X, Dolby True HD & DTS Master Audio, etc..
- Input cable equalization
- +5V HDMI Power injector
- Support extended EDID CEA861, 256 bytes
- HDCP Pass-Through
- Lip Sync Pass-Through
- CEC Protocol Pass-Through
- Power : Universal USB power adaptor
- Compliance: HDCP/FCC/CE
- Warranty : 1 year (extendable)
- Dimension : 60mm W x 40mm D x 20mm H
- Net weight : 50 gramms
- Input/Output connector: HDMI female
- USB: Mini USB-B female connector
Features
EDID communicator between 1 HDMI input and 1 HDMI output
Supports HDMI 2.0b with 18Gbps for resolutions up to 4K UltraHD 60Hz incl. HDR
Solves 4K handshake problems, EDID management, HDMI and DVI emulator, 0ms delay
Signal amplification up to 50m with +5V injection for active HDMI cables
40 pre-defined und 7 individual EDID presets via push button
Logistics Information
Product 1. Net Weight in Kg 0,15
Product 1. Gross Weight in Kg 0,15
Product 1. Length in cm 6,8
Product 1. Width in cm 5
Product 1. Height in cm 2
Packaging 1. Length in cm 18
Packaging 1. Width in cm 13,5
Packaging 1. Height in cm 6,3
Master Carton Length in cm 42
Master Carton Width in cm 36
Master Carton Height in cm 38
Produkt Informationen
Europeans Customs Tariff Nr. 85437090990
Country of Origin China
Packaging Material Plastic
VPE Informationen
Master Packaging Unit (pcs) 50
Connections
Input connector(s) 1x HDMI-A
Output connector(s) 1x HDMI-A
Power connector(s) 1x MiniUSB 5V
Control connector(s) 1x RS232 (3.5mm)
Electric signal
Maximum data rate 18 Gbps
Maximum pixel clock / bandwidth 600MHz
Standards HDMI 2.0b
Digital video formats max. 4K@60Hz
Digital audio formats Up to Atmos®, DD+®, Dolby® 7.1, DTS®, LPCM
HDCP Oui
CEC Oui
EDID Oui
Mechanical
Power consumption miniUSB
Enclosure Plastic
Dimensions 60x40x20 mm
Signal transmission
Supported standards HDMI 2.0b, HDCP 2.2
Transmission modes Pass-Through, EDID Conversion
Supported Colors 4K HDR, 4K DV, 4K HLG, 4K HDR10+, etc.
Supported audio standards Up to Atmos®, DD+®, Dolby® 7.1, DTS:X®, LPCM
Maximum resolution 4K60, 4:4:4
Further standards CEC, HDCP & Lip-Sync Pass-through, EDID banks
Weiteres
Safety CE, FCC
Colour black
Delivery Content
1x HDFury Doctor HDMI 4K
1x PSU
1x USB-MiniUSB Cable
1x Quick-Start-Guide
