2K DVI Single Link Fiber Optic Extender Transmitter
2K DVI Single Link Fiber Optic Extender Transmitter
- Référence FX1000-TX
- Pour plus d'informations, veuillez vous connecter.
- Prix HT *
Alle Preise zzgl. gesetzlicher MwSt.
Sur demande
RESSOURCES
AV SIGNALS EXTENDED VIA FIBER
The "detachable" FX1000 fiber DVI extender (here only the transmitter) included in our FiberX Series enhances the distance of a DVI signal via Multi-Mode cable up to 300 meters. Transmitted content can be of a maximum resolution of 1920x1200 (WUXGA), making it the first solution with full HDCP support. The integrated HDMI chipset allows for transmission of a digital audio signal as well. The usage of our first "Real Pass through EDID" feature simplifies installation as well as cable management, guaranteeing a fast communication between devices.
The FiberX Series - Fiber Products for Long Distances
The products included in the FibreX Series are ideal to transmit audio- and video-signals via fiber over great distances. Limitations of hybrid-systems are being prevented. The Latest TechnologyThe system offers multiple advantages over the usual installations and is - depending on the product - designed for DVI, HDMI or DisplayPort. All products from the series are 3D-ready and offer full support of HDCP, as well as "Real Pass through EDID" in real time, which renders EDID Learning unnecessary. An additional feature are reclocking machanisms of the integrated chipsets. The jitter reduced circuits allow for sources with high interference rates. Fast and PracticalOur LC and SC glass fiber cables are detachable by a single handle. Therefore, transmitters and receivers can be replaced without having to re-lay the cable. Their compact shape makes them a perfect fit for places without much space and an ideal solution for permanent installations. Please NoteGlass fiber cables are very sensitive - the plugs tip should not be touched if possible. A fastly blinking LED signals the initialisation of the system. A slowly blinking LED signals a malfunctioning or an insufficient power supply. In this case, the extender has to be supplied by a USB port or by a USB power supply. For Professional Purposes and InstallationsAll FiberX products are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the products undergo over ten quality tests, making them the most reliable choice on the market.
Features |
DVI-D Single Link (18+1) for resolutions up to WUXGA / 1920x1200 |
Gold plated precision contacts, EMI resistance, low attenuation |
DVI-D (18+1) extender transmitter via LC fiber, full-metal housing |
Supports Multi Mode up to 300m |
"Zero frame delay" for latency and compression free transmissions |
Logistics Information | |
Product 1. Net Weight in Kg | 0,08 |
Product 1. Gross Weight in Kg | 0,08 |
Product 1. Length in cm | 8 |
Product 1. Width in cm | 4 |
Product 1. Height in cm | 1,4 |
Packaging 1. Length in cm | 11 |
Packaging 1. Width in cm | 7 |
Packaging 1. Height in cm | 0,02 |
Produkt Informationen | |
Europeans Customs Tariff Nr. | 85176200000 |
Country of Origin | Taiwan |
Packaging Material | Plastic |
VPE Informationen | |
Master Packaging Unit (pcs) | 1 |
Connections | |
Input connector(s) | 1x DVI (18+1), 1x Mini USB |
Output connector(s) | 1x LC Fiber |
Power connector(s) | 5V DC via Micro USB |
Electric signal | |
Digital video formats | Max. WUXGA |
HDCP | Oui |
EDID | Oui |
Mechanical | |
Power consumption | 5V DC |
Enclosure | Steel |

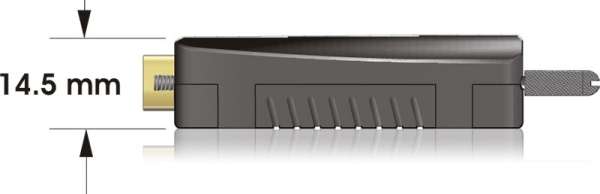

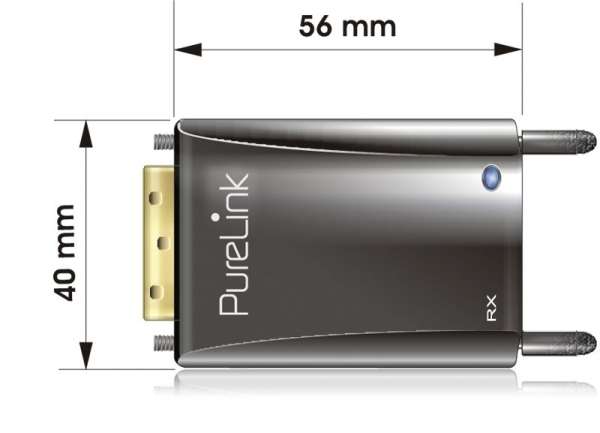

Dimensions | 56 x 40 x 14,5 mm |
Signal transmission | |
Supported standards | DVI Single-Link, LC Multi-Mode |
Weiteres | |
Safety | CE, FCC, RoHS |
Delivery Content |
1x FX1000 Transmitter (Tx) |
