HDTools (4) HDMI Inputs to (1) HDMI Output Switcher - Full HD

HDTools - HDMI Switcher 4x1 - FullHD

HDTools (4) HDMI Inputs to (1) HDMI Output Switcher - Full HD

  • Artikel-Nr. PRO-HDS-41R
  • Din pris *

Alle priser er plus moms.

PRO-HDS-41R 4x1 HDMI Switcher
The PRO-HDS-41R allows a number of digital video sources (with audio) to deliver one high quality picture to a video display (with audio). Our unique switch allows easy switching between different digital video sources (with audio) with remote control unit and/or with a manual toggle button in front and/or via RS232 port.
High Quality Picture and RS232 Control
This device is perfect for home theater systems. No more hassles of manually plugging in different HDMI connectors to view different video sources (e.g., DVD, Satellite receiver, computer, etc.).

High Quality Picture - No Signal Loss and Digital Noise Free
Our switchers are built to deliver the highest quality picture preserving the native resolutions of the video sources without any signal loss. At the same time, the digital noises that may affect the picture quality will be eliminated. Due to the nature of the digital signals and passing through multiple stages of connection when using switchers, it is important to eliminate the digital noises and boost the signal strength to preserve/enhance the video signal quality.

Compact and Practical Design

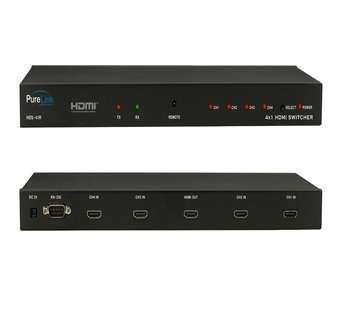

The switcher has all of the HDMI ports, power supply jack and RS232 port in the back of the unit allowing it be mounted on any racks or with any other components. In the front, there will be a remote control sensor, selector switch, and function buttons for easy control of the unit.

Remote Control Unit with Discreet Channel selections
Remote Control Units with discreet channel selection feature is included in all our switches. The channel buttons on the remote control unit will allow you to change video sources easily and quickly.

RS232 Control
Our switches also feature RS232 Control. Our switches are capable of being controlled by a remote computer. This is extremely helpful for many applications where you need to automatically switch the video inputs. Example: If you connect a PC to our switcher, you can program it to automatically switch the sources. If you want to display input 1 for 1 hour and then switch to input 2, you can do this with the PC. The RS232 LED indicators in the front will allow you to check the communication between
Resolutions up to WUXGA 1920x1200 and HD 1080p@60Hz
Switch easily between any four HDMI sources
Device selection via front panel display, RS-232, and IR
HDCP compliant
Perfect for home theater systems - No more hassles of manually plugging in different HDMI connectors to view different video sources
Logistik Informationen
Produkt 1. Gewicht (Netto Kg) 0,50
Produkt 1. Gewicht (Brutto Kg) 0,70
Produkt 1. Größe (Länge cm) 22,8
Produkt 1. Größe (Breite cm) 10,4
Produkt 1. Größe (Höhe cm) 3,05
Verpackungsgröße 1. (Länge cm) 28,7
Verpackungsgröße 1. (Breite cm) 17,7
Verpackungsgröße 1. (Höhe cm) 5,59
Produkt Informationen
Europeans Customs Tariff Nr. 85437090990
Ursprungsland China
Verpackungsmaterial Plastic
VPE Informationen
Verpackungseinheit (VPE) 1
Eingänge 4x HDMI-A
Ausgänge 1x HDMI-A
Stromanschluss DC 5V
Steuerungsanschluss RS232
Elektrische Signale
Max. Bandbreite 1.65 Gbps
Mechanische Daten
Stromverbrauch DC 5V1.2A
Betriebstemperatur 10°C - 40°C
Lagertemperatur -20°C - 45°C
Luftfeuchtigkeit 10% - 80% (kondensfr
Gehäuse Steel
Außenmaß 170 x 104 x 30 mm
Max. Auflösung Up to 1920 X 1200@ 60Hz or 1080p@ 60Hz
Sicherheit CE, FCC
MTBF 50.000 hours
Farbe Black
1x PRO-HDS-41R 4x1 HDMI Switcher
1x 5V Power Supply
1x IR Remote Control Unit
1x User manual
Dokumente "HDTools (4) HDMI Inputs to (1) HDMI Output Switcher - Full HD"
