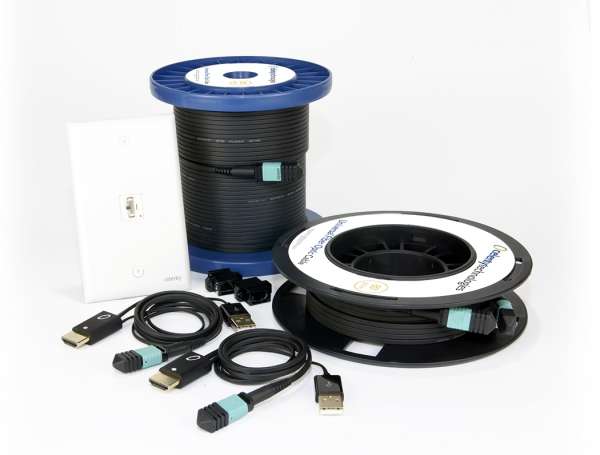

 4K DisplayPort Detachable Fiber Optic Extender Set - 152.40m / 500ft
4K DisplayPort Detachable Fiber Optic Extender Set - 152.40m / 500ft
- Artikel-Nr. CT-UFO-DP-500P
- EAN 6971254820277
- For yderligere oplysninger log ind..
- Din pris *
Alle priser er plus moms.
Levering tid ca. 5 arbejdsdage

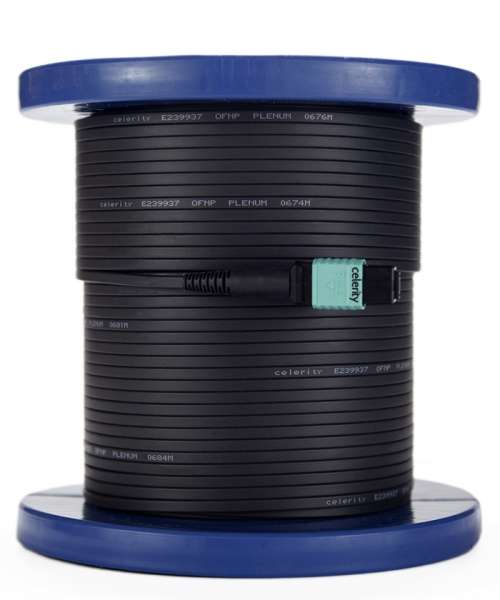

 Celerity CT-UFO Series - 21.6Gbps Plenum DisplayPort Fiber Cables for CT-UFO-DP Extender Set
  With the 21.6 Gbps DisplayPort detachable fiber optic extender "CT-UFO", consisting of transmitter (CT-UFO-TX-DP) and receiver (CT-UFO-RX-DP) the lossless and uncompressed transmission of UltraHD / 2160p / 4K AV signals at 60Hz and 4:4:4 Color Subsampling and/or 8K+ resolutions (compressed) becomes reality. The maximum range of this lossless optical fiber extender is 304.8 meters. The DisplayPort Fiber Extenders transmit bandwidths of up to 216Gbps and are equipped with a fire retardant and detachable Plenum-rated cable (NFPA 262 / 90A) which ensures low smoke emission in case of fire.Attention: This article is only the connecting Fiber cable! The whole system consists of transmitter, receiver and cable in the desired length.
  FIBER AV TECHNOLOGY ON A WHOLE NEW LEVEL
  The next generation fiber optic cableThe CT-UFO series for DisplayPort offers improved stability for 21.6Gbps signal transmission. The Universal Fiber Optic cable may be installed in-wall for future systems running up to 48Gbps such as HDMI 2.1 or future DisplayPort specifications.Attention: This fiber optic cable is only usable with the detachable extender set CT-UFO-TX-DP / CT-UFO-RX-DP. Transmitter and Receiver must be purchased separately! The features and specifications mentioned here refer to the common use of extender set and this fiber optic cable in combination.Features:- DisplayPort 1.4 with 21.6 Gbps for resolutions up to 4K / UltraHD / 2160p with 60Hz and 4:4:4 Color Subsampling, compatible with most HDR standards- 8K+ resolutions possible (compressed)- Plenum cable according to NFPA 262 / 90A - Fire retardant, low smoke development in case of fire - Perfect for Plenum-rated installations- Detachable, slim DisplayPort connector for variable cable lenghts, including a 6ft fiber "pigtail"- Optical coupling joins the UFO TX/RX with the UFO cable- 5V power supply via included USB cable- Pre-assembled cable lengths available: From 10.2m to 304.8m- Bi-directional in-wall CT-UFO cable- No electronics on the UFO cable ends- Wallplate receiver version available
 | Features |
| DisplayPort version 1.4 - 21.6Gbps for resolutions up to 4K UltraHD 60Hz |
| Flame-retardant jacket made of OFNP material |
| DisplayPort male to MPO male, portsaver |
| Set of Tx/Rx DisplayPort connector module and detachable MPO fiber cable |
| 5V power supply via integrated USB cable at the DisplayPort connector |
| Logistik Informationen | |
| Produkt 1. Gewicht (Netto Kg) | 1,67 |
| Produkt 1. Gewicht (Brutto Kg) | 2,10 |
| Produkt 1. Größe (Länge cm) | 18,4 |
| Produkt 1. Größe (Breite cm) | 18,4 |
| Produkt 1. Größe (Höhe cm) | 18,4 |
| Verpackungsgröße 1. (Länge cm) | 24,1 |
| Verpackungsgröße 1. (Breite cm) | 24,1 |
| Verpackungsgröße 1. (Höhe cm) | 24,1 |
| VPE 1. Größe (Länge cm) | 50,8 |
| VPE 1. Größe (Breite cm) | 50,8 |
| VPE 1. Größe (Höhe cm) | 50,8 |
| Produkt Informationen | |
| Europeans Customs Tariff Nr. | 85176200000 |
| Ursprungsland | China |
| Verpackungsmaterial | Plastic |
| VPE Informationen | |
| Verpackungseinheit (VPE) | 8 |
| Anschlüsse | |
| Steckermaterial | Plastics (EMI-free) |
| Anschluss 1 | Fiber (proprietary) |
| Anschluss 2 | Fiber (proprietary) |
| Elektrische Signale | |
| Max. Bandbreite | 4K@60Hz, 4:4:4 bzw. HDR + 8K (komprimiert) |
| Kabel | |
| Typ | Fiber for CT-UFO-DP |
| Länge | 152,4m / 500ft |
| Material Innenleiter | Fiber, EMI-free |
| Material Außenmantel | Plenum / UL / OFNP |
| Signalübertagung | |
| Unterstützte Standards | Fiber |
| Übertragungsarten | Digital Audio and Video Signals |
| Unterstützte Farbräume | 16/24 bit RGB/YUV, Deep Color, x.v.Color™ |
| Unterstützte Audiostandards | Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD |
| Max. Auflösung | 21.6 / 48 Gbps |
| weitere Standards | 3D, HDCP, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p) |
| Weiteres | |
| Sicherheit | CE, FCC |
| Farbe | black |
| Lieferumfang |
| 1x Celerity CT-UFO-DP Cable, 152,4m / 500ft |
