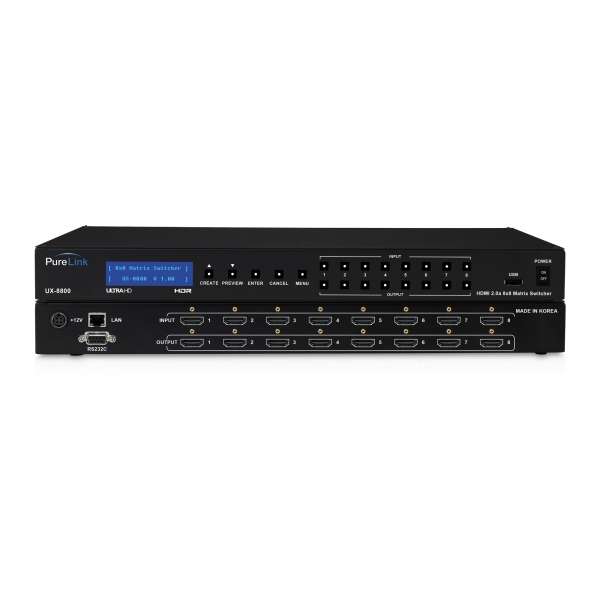

HDTools 8x8 HDMI 2.0a Integrated Matrix Switcher - Ultra HD
HDTools 8x8 HDMI 2.0a Integrated Matrix Switcher - Ultra HD
- Artikel-Nr. PRO-UX-8800
- EAN 4260134128261
- For yderligere oplysninger log ind..
- Din pris *
Alle priser er plus moms.
Levering tid ca. 5 arbejdsdage
PRO-UX-8800 HDMI 8x8 Matrix - 4K@60 / HDR / 18 Gbps

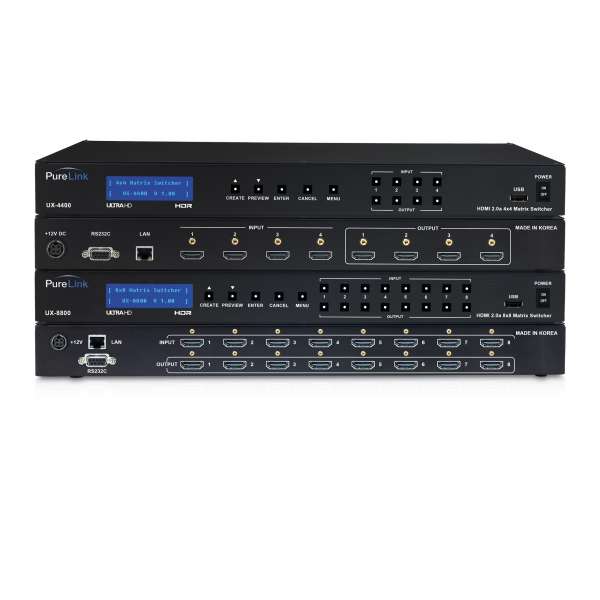

The HDMI 2.0b / HDCP 2.2 matrix switch with eight HDMI-A inputs and eight HDMI-A outputs enables a powerful distribution of A/V resolutions up to UltraHD / 4K with 60Hz and 4:4:4 color subsampling. The switches are available in 2 different configurations - 4x4 / 8x8 - and support HDMI / HDCP with a bandwidth of 18Gbps. Combined with the integrated web interface for multiple control options, the UX series is one of the fastest and most reliable UltraHD / 4K signal management solutions for the full bandwidth of 18 Gbps and HDR.
INDIVIDUAL DISTRIBUTION OF DIGITAL AV SIGNALS WITH MAXIMUM BANDWIDTH
The HDTools HDMI 2.0b matrix switchers can transmit the full bandwidth of 18Gbps - this allows the individual distribution of 8 input signals to 8 HDMI-A output ports with maximum resolutions of 4K@60Hz / UltraHD / 2160p and with 4:4:4 subsampling, 8-bit colors as well as the transmission of HDR (High Dynamic Range) video signals.Simple, fast, space-savingThe HDTools UHD matrix switcher allows the management of eight 4K@60 HDMI input signals to eight 4K@60 HDMI outputs via a single device. A fast, flexible and above all simple use and distribution of inputs and outputs is thus guaranteed. The three control options via front panel, RS-232 and Ethernet, combined with automatic signal amplification ensure optimum signal level adjustment at different transmission distances. The integrated EDID and HDCP management system enables the EDID of the display to be learned and passed on, thus ensuring faster switching times and reliable and fail-safe transmission. The device is ideally suited for use in conference rooms, home theaters and digital signage applications. Also the distribution for a videowall is supported.Uncompressed HD formatsWith our 4K@60 / HDR HDTools matrix switches, video and audio signals are transmitted digitally and in the highest quality. HDMI signals with HDCP 2.2, 3D and DeepColor as well as HDR support are sent, up to a resolution of UltraHD / 4K (3840x2160 / 2160p) as well as digital audio signals unaltered to 7.1 HD, such as Dolby Atmos. The matrix switcher also supports the HDR (High Dynamic Range) format, which offers a massively increased contrast range.Built-in web interfaceAn integrated interface, which can be easily reached via the IP address in the browser, offers the possibility to set up, control, upload firmware updates and perform diagnostics via an existing network.Always up to dateThe LAN connection integrated in the matrix switch provides the possibility for software updates via interface. Alternatively, the matrix switcher is equipped with a USB-A connector. Thus, the new software can be implemented at any time and the device can be updated from the laptop or PC. So you are equipped with state-of-the-art technology and the digital future.Convincing in detailsThe UHD Matrix switcher of our HDTools series is also convincing in the detailed questions as the devices benefit from the optimization for professional installations in the usual PureLink quality. With the 4-pin DIN mains connection and the possibility of firmware updates via USB and Ethernet as well as the transmission of RS-232 control signals, all precautions are taken for professional use. The robust steel housing with the option to be installed in an AV rack simplifies immediate on-site use, with no delays for installer and customer.For professional applications and installationsAll HDTools products are manufactured exclusively in state-of-the-art manufacturing facilities and are 100% tested before shipment. During the manufacturing process, the products undergo more than ten quality tests, making them the most reliable choice on the market.
Features |
HDMI up to 4K / UltraHD (2160p, 50/60Hz, 4:4:4, 8 bits or 4:2:0 10-16 bits) |
Compliant with HDMI 2.0b / HDCP 2.2 - 18 Gbps bandwidth |
Digital 7.1 audio for DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos |

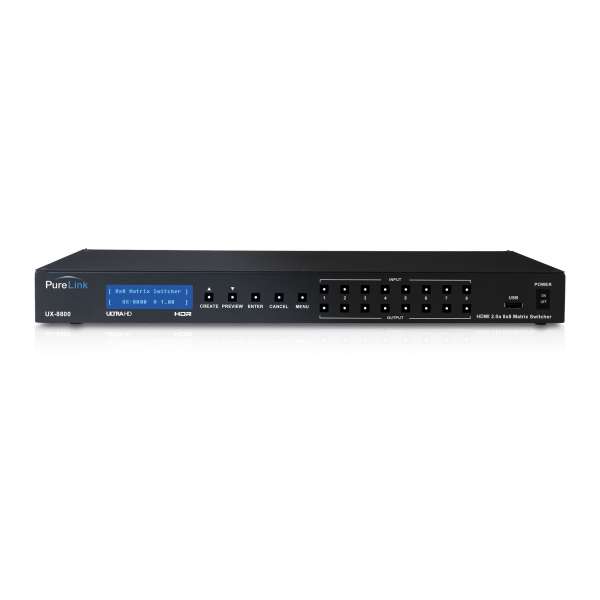

Control via frontpanel, RS-232 and / or Ethernet (Webinterface) |
Supports HDR signals (High Dynamic Range) |
Logistik Informationen | |
Produkt 1. Gewicht (Netto Kg) | 3,10 |
Produkt 1. Gewicht (Brutto Kg) | 3,50 |
Produkt 1. Größe (Länge cm) | 48,3 |
Produkt 1. Größe (Breite cm) | 20,4 |
Produkt 1. Größe (Höhe cm) | 4,5 |
Verpackungsgröße 1. (Länge cm) | 51 |
Verpackungsgröße 1. (Breite cm) | 36,5 |
Verpackungsgröße 1. (Höhe cm) | 13 |
Produkt Informationen | |
Europeans Customs Tariff Nr. | 85437090990 |
Ursprungsland | China |
Verpackungsmaterial | Plastic |
VPE Informationen | |
Verpackungseinheit (VPE) | 1 |
Anschlüsse | |

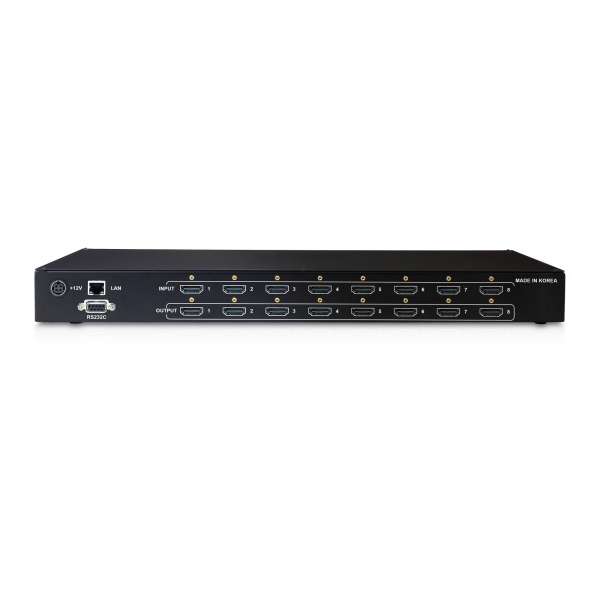

Eingänge | 8x HDMI-A, 1x RS-232, 1x Ethernet, 1x USB, 1x Power Supply |
Ausgänge | 8x HDMI-A |
Stromanschluss | 12V, 7,5A, 60W DC |
Steuerungsanschluss | RS-232C, Ethernet, Frontpanel, Webinterface (LAN) |
Elektrische Signale | |
Digitale Videoformate | Max. full 18 Gbps bandwidth: UltraHD / 4K / 2160 |
Digitale Audioformate | Max.: Uncompressed 7.1, z. B. Dolby Atmos, Dolby |
HDCP | Ja |
EDID | Ja |
Mechanische Daten | |
Stromverbrauch | 12V, 7,5A, 60W DC |
Betriebstemperatur | 0°C - 47°C |
Lagertemperatur | -40°C - 70°C |
Luftfeuchtigkeit | 20% - 90% |
Gehäuse | Stahl |
Außenmaß | 482,6 x 203,2 x 44,4 |
Signalübertagung | |
Unterstützte Standards | HDMI 2.0b, HDCP 2.2, RS-232C, Ethernet |
Weiteres | |
Sicherheit | RoHS, CE, FCC |
MTBF | 95.000 hours |
Lieferumfang |
1x PRO-UX-8800 - 18 Gbps Matrix Switcher |
1x 12V, 7,5A, 60W PSU |
1x RS-232C cable |
1x Ethernet Kabel (RJ45) |
1x Installation Kit für AV-Rack + 1xUser Manual |
