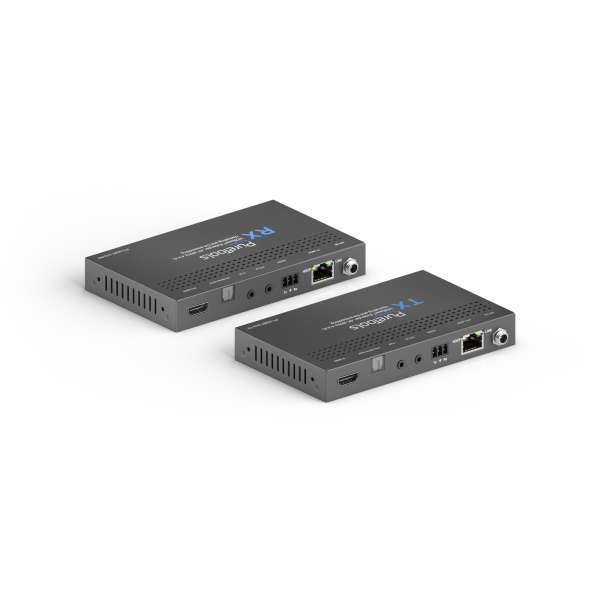

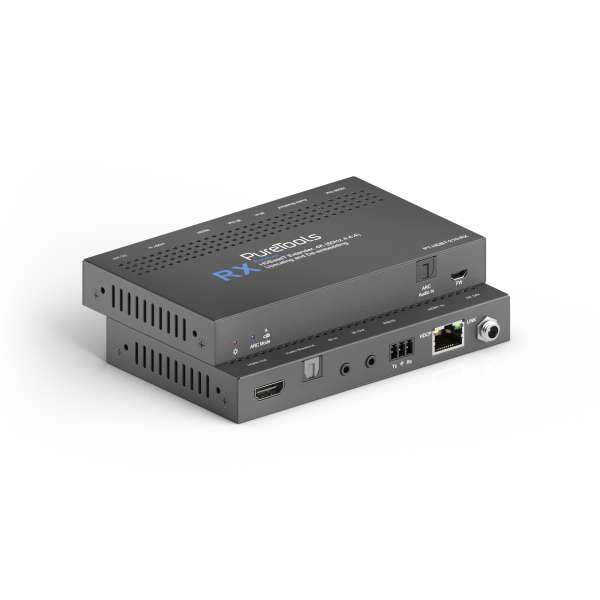

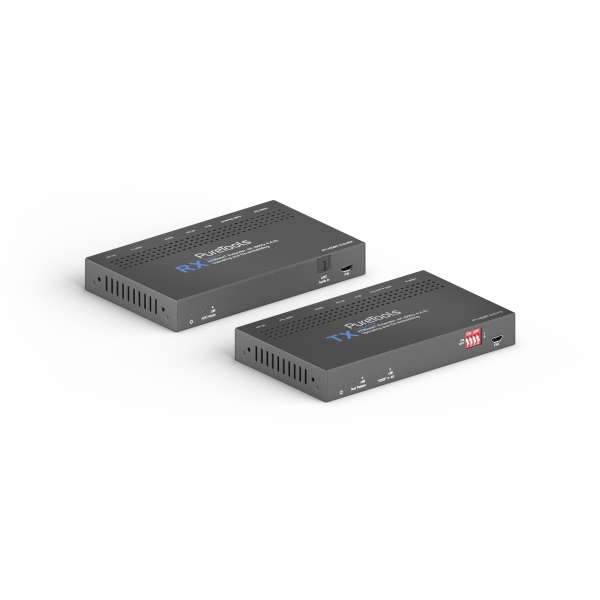

4K 18Gbps HDMI HDBaseT Extender Set with VLC, ARC and Scaler
4K 18Gbps HDMI HDBaseT Extender Set with VLC, ARC and Scaler
- Artikel-Nr. PT-HDBT-210
- EAN 4251364718407
- For yderligere oplysninger log ind..
- Din pris *
Alle priser er plus moms.
Tilgængelig
4K 18Gpbs HDMI HDBaseT Extender with VLC Technology, ARC and Scaling
High-grade elctronic products for commercial applicationsThe PureTools product line is made up of high-quality audio/video electronic products such as switchers, splitters, converters and extenders for commercial AV installations and applications. The product lines focus is on the transmission of digital signals such as HDMI, DisplayPort, DVI and SDI. Dependable technology designed according to the latest standards and combined with intelligent innovations, make the PureTools product line perfect for professional installers, as well as guaranteeing an "Install and Forget" experience thanks to top grade performance.
The PureTools Series - High Quality AV Products for Commercial Applications
Features:- Transmitter with HDMI-A input via HDBaseT to receiver with HDMI-A output- Lossless video compression (VLC) for an 4K@60Hz, 4:4:4 extension incl. HDR in up to 40m via HDBaseT or 1080p over 70m- Built-in scaler technology for upscaling 1080p signals to 4K / UltraHD- External audio transmission from Rx to TX as well as audio de-embedding via digital S/PDIF (Toslink)- ARC integration, two way PoC from TX or Rx, DIP-Switch controlled smart EDID and HDCP management
Features |
Transmission of HDMI via HDBaseT up to 40m (4K), 70m (1080p) |
Supports 18Gbps for resolutions up to 4K UltraHD 60Hz |
Bidirectional PoC, ARC functions, DIP switch controlled EDID and HDCP management |
Visually lossless compression (VLC technology) for max. 18Gbps |
Built-in scaler (1080p - 4K), audio de-embedding, screwable power supply |
Logistik Informationen | |
Produkt 1. Gewicht (Netto Kg) | 0,57 |
Produkt 1. Gewicht (Brutto Kg) | 0,99 |
Produkt 1. Größe (Länge cm) | 14 |
Produkt 1. Größe (Breite cm) | 8,4 |
Produkt 1. Größe (Höhe cm) | 3,9 |
Verpackungsgröße 1. (Länge cm) | 19,4 |
Verpackungsgröße 1. (Breite cm) | 14,2 |
Verpackungsgröße 1. (Höhe cm) | 7,2 |
VPE 1. Größe (Länge cm) | 40 |
VPE 1. Größe (Breite cm) | 35 |
VPE 1. Größe (Höhe cm) | 40 |
Produkt Informationen | |
Europeans Customs Tariff Nr. | 85176200000 |
Ursprungsland | China |
Verpackungsmaterial | Paper |
VPE Informationen | |
Verpackungseinheit (VPE) | 12 |
Umverpackungseinheit 1. | 1 |
Anschlüsse | |

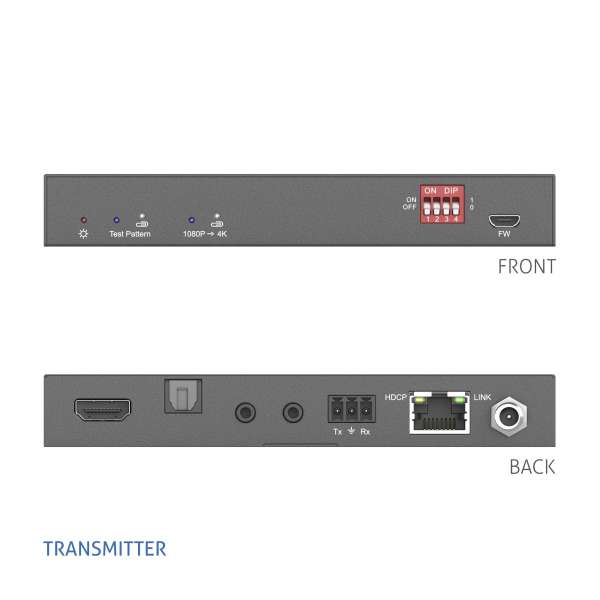

Eingänge | TX: 1x HDMI, 1x IR (3.5mm Jack), 1x RS232 (3 pin Phoenix) | RX: 1x HDBaseT (RJ45), 1x IR (3.5mm Jack), 1x RS232 (3 pin Phoenix), 1x ARC Audio (Toslink) |

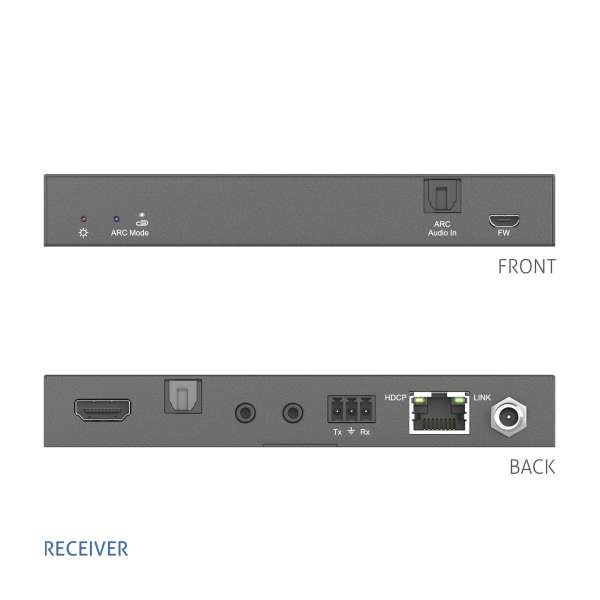

Ausgänge | TX: 1x HDBaseT (RJ45), 1x IR (3.5mm Jack), 1x ARC (Toslink) | RX: 1x HDMI, 1x IR (3.5mm Jack), 1x Audio Breakout (Toslink) |
Weiteres | |
Garantie | Optional 5 Years Manufacturer's Warranty |
Lieferumfang |
1x PT-HDBT-210-TX Transmitter |
1x PT-HDBT-210-RX Receiver |
2x TX Mounting Ears with 4 Screws, 2x RX Mounting Ears with 4 Screws |
4x TX Plastic Cushions, 4x RX Plastic Cushions, 1x 3-pin Terminal Block |
1x Power Adapter (24V DC 1.25A), 1x User Manual |
Dokumente "4K 18Gbps HDMI HDBaseT Extender Set with VLC, ARC and Scaler"
