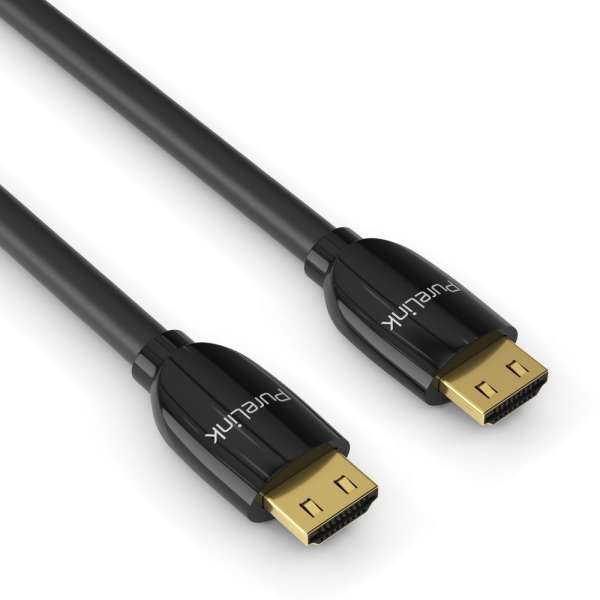

Certified 4K Premium High Speed HDMI Cable – 3.00m
Certified 4K Premium High Speed HDMI Cable – 3.00m
- Artikel-Nr. PS3000-030
- EAN 4260134128711
- For yderligere oplysninger log ind..
- Din pris *
Alle priser er plus moms.
Tilgængelig
RESOURCES

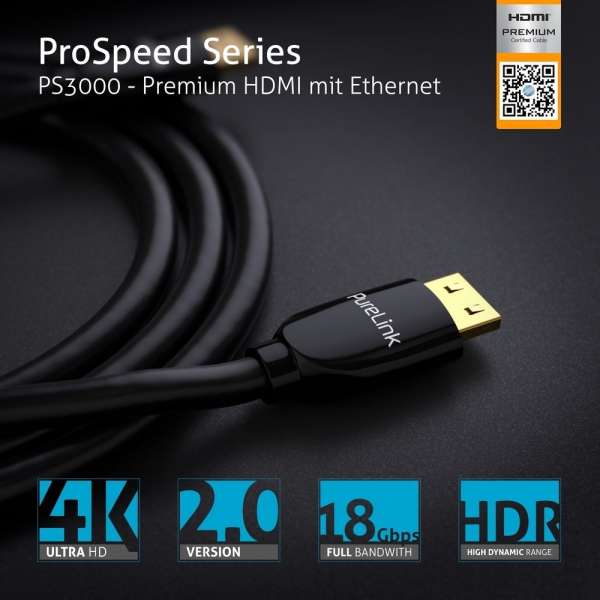

PS3000-030 Certified Premium HDMI Cable for highest performance incl. glossy design-connectors and SLS technology
High Speed HDMI with Ethernet and 18Gbps bandwidth - Incl. design connector, EMI-protection and Secure-Lock-System™The PS3000 High Speed HDMI cable included in the ProSpeed series supports the full bandwidth of 18Gbps in lengths up to 5 meters for resolutions up to 4K@60Hz with a full color and contrast spectrum. The lossless transmission according to HDMI 2.0b standard is provided by triple shielding, gold-plated contacts and the use of high-quality OFC copper as inner conductors. A metal strain relief collar is integrated in both plugs and provides - in combination with the cable shielding - continuous EMI protection of the inner conductors from source to sink. In addition, the plug is not subject to so much stress during insertion and removal and is thus much more durable. The Secure-Lock-System™ (SLS™) also provides up to twice as much retention force before the connector is disconnected from the HDMI socket. For an 18Gbps cable, this one has a very small bending radius and is perfectly suited for use in tight-fitting spaces for professional and residential installations.
Full bandwidth and many professional features

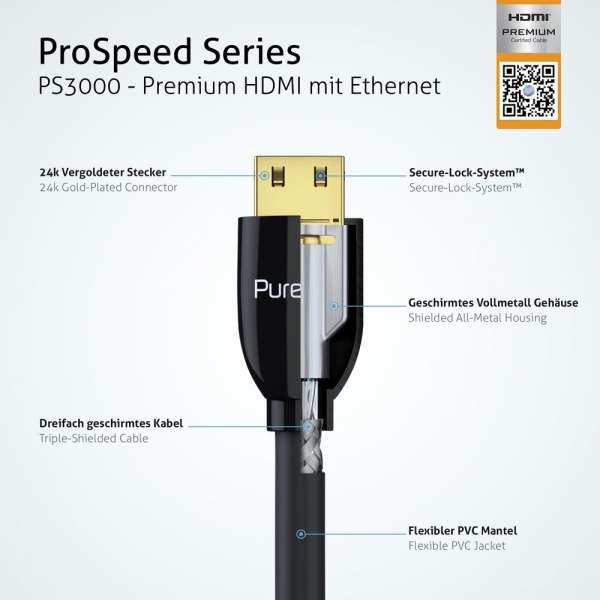

PS3000 is a safe investment in future-proof, digital cabling and is perfectly suited for professional and residential applications thanks to a complete EMI shielding and full 18Gbps bandwidth. The latest generationThe Premium HDMI cable PS3000 of the ProSpeed series supports the latest HDMI features according to specification 2.0b. This cable complies with the latest standard "HDMI High Speed with Ethernet" and can transmit a bandwidth of 18Gbps, enough for resolutions up to UltraHD / 2160p / 4K@60Hz with 4:4:4 color subsampling and 8bit color space or full HDR compatibility. It is of course backwards compatible with all older HDMI specifications.Lossless transmission and complete EMI shieldingThe high-quality inner conductors made of oxygen-free OFC copper create the best prerequisites for a signal transmission free of errors and interference. The precisely fitting SLS™ plugs are 24 carat gold-plated and thus ensure a perfect connection. The solid metal strain relief collar is integrated into the connector shell in both HDMI connectors, in combination with the triple shielding of the cable, completes the Farady cage effect and completly shields the cable from unwanted external signal interference.Secure Lock System™Conventional HDMI plugs easily loose their grip in the socket. The Secure-Lock-System™ technology (SLS™) is designed to increase the contact pressure of the HDMI connector inside the socket. HDMI plugs with SLS™ technology can cope with up to twice as much tensile force as plugs without SLS™, before the plug is disconnected from the socket. This plug construction, including the metal relief collar, is unique on the market and increases the stability of the connection even under high tensile stress, so that the installation is permanently protected.ProSpeed - flexible and powerfulThe PS3000 cables of the ProSpeed series are characterised by a slim cross-section of only 6mm and are therefore easy and space-saving to install. The small bending radius allows it to be used in hard-to-reach places, both for professional and residentialinstallations.HDMI Ethernet ChannelBenefit from an innovation of the HDMI 1.4 standard! The Ethernet channel in the HDMI cable allows you to integrate IP-based entertainment devices such as TVs, set-top boxes or game consoles into your home network and use the Internet or IP-based services without additional cabling. HDMI audio return channelLike the Ethernet channel, the audio return channel saves an additional cable in the home cinema area. This channel, also known as ARC or Audio-Return-Channel, sends the digital audio signal back to your AV receiver via the HDMI cable. This eliminates the need for a separate Toslink cable.Professional qualityWith a PureLink product you always choose first-class professional quality. PureLink HDMI cables master the challenge of transferring images and sounds perfectly, even at the highest data rates. Our HDMI products are optimized for HDTV requirements, so there is no risk of pixel errors. Recommended usageThe PS3000 is ideal for connecting two HDMI devices with HDMI-A connectors.
Features |
HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz |
Gold plated precision contacts with PureLink SLS™ (Secure-Lock-System™) |

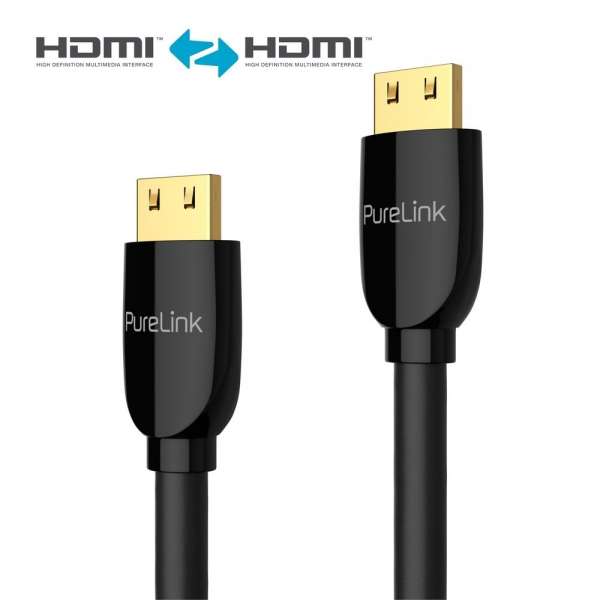

HDMI-A male to HDMI-A male |
High purity OFC copper conductors and triple shielding, AWG28 |
100% tested for professional AV applications |
Logistik Informationen | |
Produkt 1. Gewicht (Netto Kg) | 0,20 |
Produkt 1. Gewicht (Brutto Kg) | 0,21 |
Produkt 1. Größe (Länge cm) | 16 |
Produkt 1. Größe (Breite cm) | 16 |
Produkt 1. Größe (Höhe cm) | 3 |
Verpackungsgröße 1. (Länge cm) | 21,6 |
Verpackungsgröße 1. (Breite cm) | 30,8 |
Verpackungsgröße 1. (Höhe cm) | 0,01 |
VPE 1. Größe (Länge cm) | 42 |
VPE 1. Größe (Breite cm) | 31 |
VPE 1. Größe (Höhe cm) | 30 |
Produkt Informationen | |
Europeans Customs Tariff Nr. | 85444290900 |
Ursprungsland | China |
Verpackungsmaterial | Plastic |
VPE Informationen | |
Verpackungseinheit (VPE) | 30 |
Anschlüsse | |
Steckermaterial | Plastics / Metal (EMI protec.) |
Kontaktmaterial | 24 ct. gold-plated, long-life design |
Schirmung | Ja |
Anschluss 1 | HDMI Type A plug (19pin) incl. SLS™ |
Anschluss 2 | HDMI Type A plug (19pin) incl. SLS™ |
Kontakte | 24 ct. gold-plated, long-life design |
Elektrische Signale | |
HDCP | Ja |
CEC | Ja |
EDID | Ja |
Kabel | |
Typ | Round Cable |
Länge | 3.0m |
Material Innenleiter | High-purity, oxygen-free OFC copper |
AWG | AWG28 / 30 |
Anzahl Schirmungen | 4 |
Schirmung 1 | Aluminium foil |
Schirmung 3 | Braid (85%) |
Material Außenmantel | Highly elastic PVC |
Durchmesser Außenmantel | 6.8mm |
Signalübertagung | |
Unterstützte Standards | High Speed HDMI mit Ethernet, SLS |
Übertragungsarten | Digital audio and video signals |
Unterstützte Farbräume | 16/24 bit RGB/YUV, Deep Color, x.v.Color™ |
Unterstützte Audiostandards | ARC, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, etc. |
weitere Standards | HDMI Ethernet Channel (HEC), ARC, 3D, HDCP, CEC, EDID, SLS |
Weiteres | |
Sicherheit | RoHS, CE |
Farbe | black |
Garantie | 3 Years Manufacturer's Warranty |
Lieferumfang |
1x PS3000-030 Premium High Speed HDMI Kabel with 18Gbps, 3.0m |
Dokumente "Certified 4K Premium High Speed HDMI Cable – 3.00m"
