Certified Active 2K DisplayPort / DVI Cable – 7.50m
Certified Active 2K DisplayPort / DVI Cable – 7.50m
- Artikel-Nr. PI5200-075
- EAN 4260134127097
- For yderligere oplysninger log ind..
- Din pris *
Alle priser er plus moms.

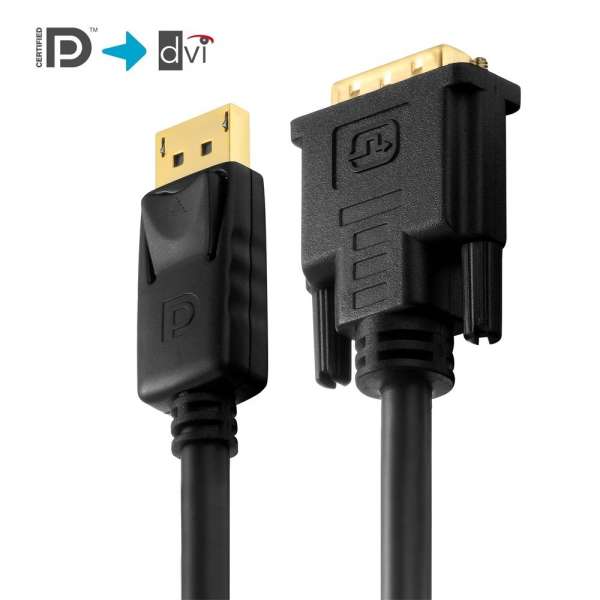

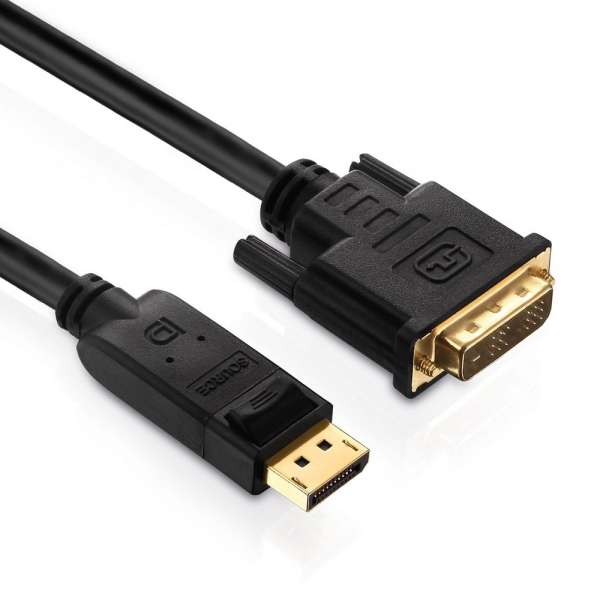

PI5200 - DisplayPort/Single Link DVI Cable
With this cable, DisplayPort sources can be connected to DVI monitors!The PI5200 DisplayPort to DVI cable included in the PureInstall Series transmits the signal from a DisplayPort-ready source device to a DVI-ready monitor. It is equipped with a DisplayPort plug on the one side and a DVI Single Link plug on the other side. Thanks to its reliable, high-quality equipment, this cable can be perfectly used especially in professional surroundings. Please note, this cable is not bidirectional, therefore it cannot be used for connecting DVI sources to DisplayPort-ready sinks.
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.The Latest GenerationOur PureInstall DisplayPort to DVI cables comply with the DisplayPort standard as well as DVI standard. They support resolutions up to WUXGA (1920x1200) and are downward compatible with all former DP and DVI specifications.Triple ShieldingOur unique triple-shielding technology consists of a 100% closed aluminum foil, a thick netting and an additonal inner shielding. Due to this, our cable are immune from interferences and crosstalk. The ultra-pure inner conductor made of OFC copper can therefore unfold its full potential.Custom-fit, Durable and Without LossesThe highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.For Professional Purposes and InstallationsAll PureInstall cables are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the cables undergo over ten quality tests, making them the most reliable choice on the market.
| Features |
| DisplayPort / DVI for resolutions up to WUXGA / 1920x1200 |
| Gold plated precision contacts with locking mechanism |
| DisplayPort male to DVI-D Single Link (18+1) male |
| High purity, tinned OFC copper conductors and triple shielding, AWG28 |
| 100% tested for professional AV applications |
| Logistik Informationen | |
| Produkt 1. Gewicht (Netto Kg) | 0,49 |
| Produkt 1. Gewicht (Brutto Kg) | 0,53 |
| Produkt 1. Größe (Länge cm) | 19 |
| Produkt 1. Größe (Breite cm) | 19 |
| Produkt 1. Größe (Höhe cm) | 1,8 |
| Verpackungsgröße 1. (Länge cm) | 39,8 |
| Verpackungsgröße 1. (Breite cm) | 32,6 |
| Verpackungsgröße 1. (Höhe cm) | 0,1 |
| VPE 1. Größe (Länge cm) | 41 |
| VPE 1. Größe (Breite cm) | 30 |
| VPE 1. Größe (Höhe cm) | 30 |
| Produkt Informationen | |
| Europeans Customs Tariff Nr. | 85444290900 |
| Ursprungsland | China |
| Verpackungsmaterial | Plastic |
| VPE Informationen | |
| Verpackungseinheit (VPE) | 20 |
| Anschlüsse | |
| Steckermaterial | PVC |
| Kontaktmaterial | 24 ct. gold plated, long-life design |
| Schirmung | Ja |
| Anschluss 1 | DisplayPort male (20pin) |
| Anschluss 2 | DVI-D male (18+1pin) |
| Abmessungen A.1 | 53.0 x 20.0 x 11.0 (mm) |
| Abmessungen A.2 | 47.7 x 37.7 x 15.8 (mm) |
| Kontakte | 24 ct. gold plated, long-life design |
| Elektrische Signale | |
| Max. Bandbreite | WUXGA (1920x1200) |
| HDCP | Ja |
| EDID | Ja |
| Kabel | |
| Typ | Round cable |
| Länge | 7.5 meters |
| Material Innenleiter | Tinned OFC copper |
| AWG | AWG28 |
| Anzahl Schirmungen | 3 |
| Schirmung 1 | Aluminium foil (100% density) |
| Schirmung 3 | Mesh (100% density) |
| Material Außenmantel | Elastic PVC |
| Durchmesser Außenmantel | 7,3mm |
| Signalübertagung | |
| Unterstützte Standards | DisplayPort, DVI |
| Übertragungsarten | Digital video signals |
| Unterstützte Farbräume | RGB/YUV, Deep Color, x.v.Color™ |
| Unterstützte Audiostandards | Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD |
| weitere Standards | HDCP, CEC, FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p) |
| Weiteres | |
| Sicherheit | CE (incl. RoHS), FCC |
| Farbe | black |
| Garantie | 3 Years Manufacturer's Warranty |
| Lieferumfang |
| 1x PI5200-075 DisplayPort-DVI cable, black, 7.5m |
Dokumente "Certified Active 2K DisplayPort / DVI Cable – 7.50m"
