Certified 4K DisplayPort Cable – 1.00m

Certified 4K DisplayPort Cable – 1.00m

  • Artikel-Nr. PI5000-010
  • EAN 4260134118750
  • Din pris *

Alle priser er plus moms.

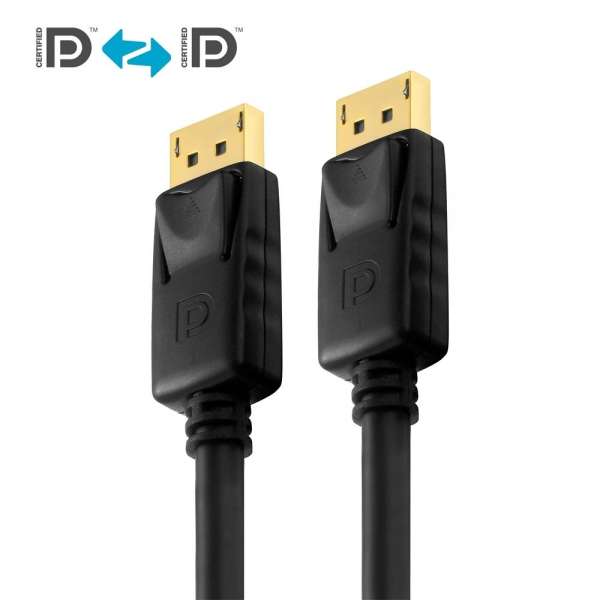

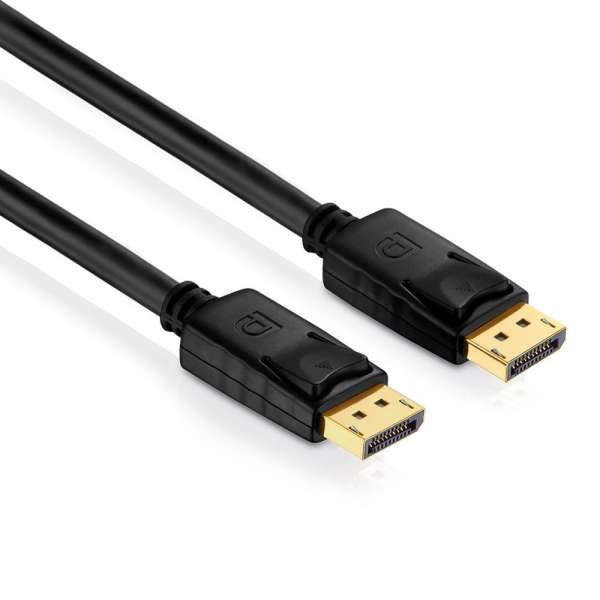

PureInstall PI5000 - DisplayPort Cable
The reliable connection of two DisplayPort devices!
The PI5000 DisplayPort cable offers the connection of two DisplayPort-ready devices with a resolution of up to 4K@60Hz / UltraHD @60Hz. This cable is the right choice for perfect signal transmission of this modern transmission standard. Both ends are equipped with the known PureInstall Series custom-fit and gold-plated plugs, which guarantee for a durable and undisturbed connection.
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.

The Latest Generation
Our PureInstall DisplayPort cables comply with the DisplayPort standard. They support resolutions up to 4K/UltraHD@60Hz (3840x2160) for cable lengths up to 5m and are backwards compatible with all former DP specifications.

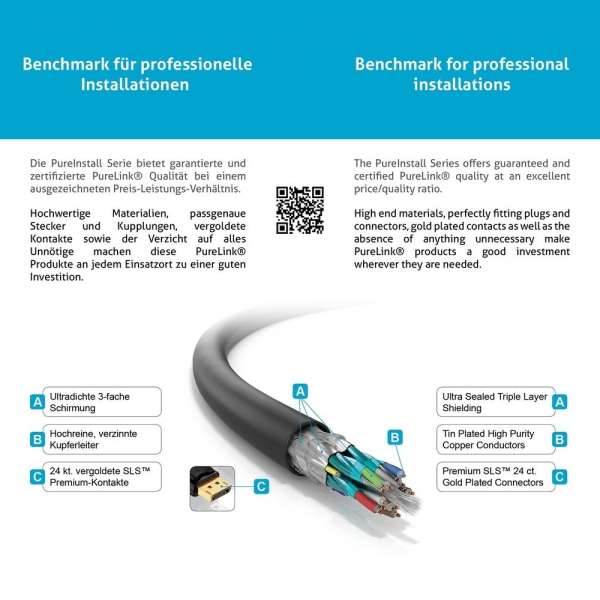

Triple Shielding
Our unique triple-shielding technology consists of a 100% closed aluminum foil, a thick netting and an additonal inner shielding. Due to this, our cable are immune from interferences and crosstalk. The ultra-pure inner conductor made of OFC copper can therefore unfold its full potential.

Custom-fit, Durable and Without Losses
The highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality. Our DVI cables have been tested for professional use and extreme bending.

For Professional Purposes and Installations
All PureInstall cables are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the cables undergo over ten quality tests, making them the most reliable choice on the market.
Features
DP version 1.2 – 21.6Gbps for resolutions up to 4K UltraHD 60Hz
Gold plated precision contacts with locking mechanism
DisplayPort male to DisplayPort male
High purity, tinned OFC copper conductors and triple shielding, AWG28
100% tested for professional AV applications
Logistik Informationen
Produkt 1. Gewicht (Netto Kg) 0,08
Produkt 1. Gewicht (Brutto Kg) 0,09
Produkt 1. Größe (Länge cm) 14
Produkt 1. Größe (Breite cm) 14
Produkt 1. Größe (Höhe cm) 2
Verpackungsgröße 1. (Länge cm) 24,3
Verpackungsgröße 1. (Breite cm) 16,6
Verpackungsgröße 1. (Höhe cm) 0,1
VPE 1. Größe (Länge cm) 41
VPE 1. Größe (Breite cm) 30
VPE 1. Größe (Höhe cm) 30
Produkt Informationen
Europeans Customs Tariff Nr. 85444290900
Ursprungsland China
Verpackungsmaterial Plastic
VPE Informationen
Verpackungseinheit (VPE) 80
Umverpackungseinheit 1. 10
Anschlüsse
Steckermaterial PVC
Kontaktmaterial 24 ct. gold plated, long-life design
Schirmung Ja
Anschluss 1 DisplayPort male (20pin)
Anschluss 2 DisplayPort male (20pin)
Abmessungen A.1 53.0 x 20.0 x 11.0 (mm)
Abmessungen A.2 53.0 x 20.0 x 11.0 (mm)
Kontakte 24 ct. gold plated, long-life design
Elektrische Signale
Max. Bandbreite 4K / UltraHD / 2160p @60Hz, 8bit, 4:4:4 bzw. HDR
HDCP Ja
EDID Ja
Kabel
Typ Round cable
Länge 1.0 meters
Material Innenleiter Tinned OFC copper
AWG AWG28
Anzahl Schirmungen 3
Schirmung 1 Aluminium foil (100% density)
Schirmung 3 Mesh (100% density)
Material Außenmantel Elastic PVC
Durchmesser Außenmantel 7.3mm
Signalübertagung
Unterstützte Standards DisplayPort
Übertragungsarten Digital audio and video signals
Unterstützte Farbräume 16/24 bit RGB/YUV, Deep Color, x.v.Color™
Unterstützte Audiostandards Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD
weitere Standards 3D, FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Weiteres
Sicherheit CE (incl. RoHS), FCC
Farbe black
Garantie Optional 15 Years Manufacturer's Warranty
Lieferumfang
1x PI5000-010 DisplayPort cable, black, 1.0m
