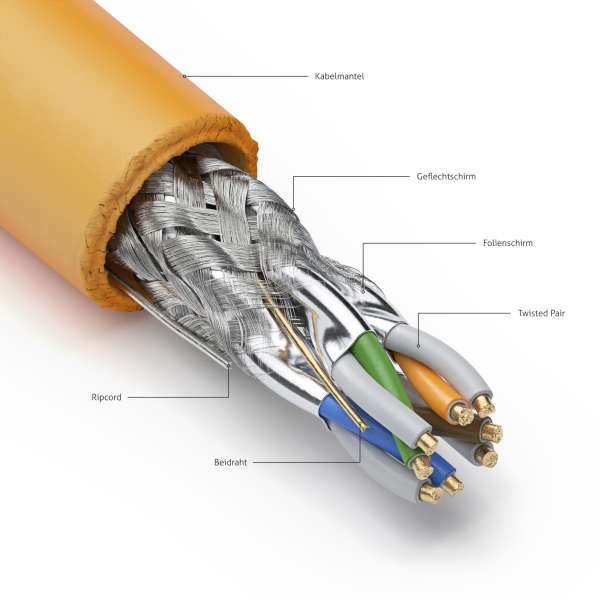

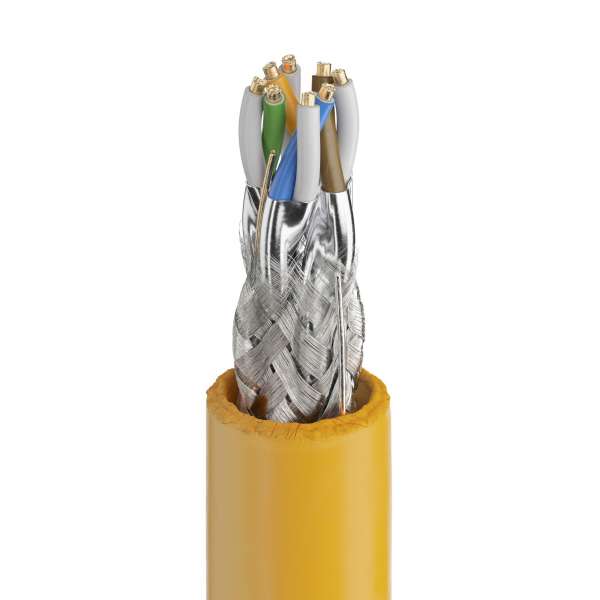

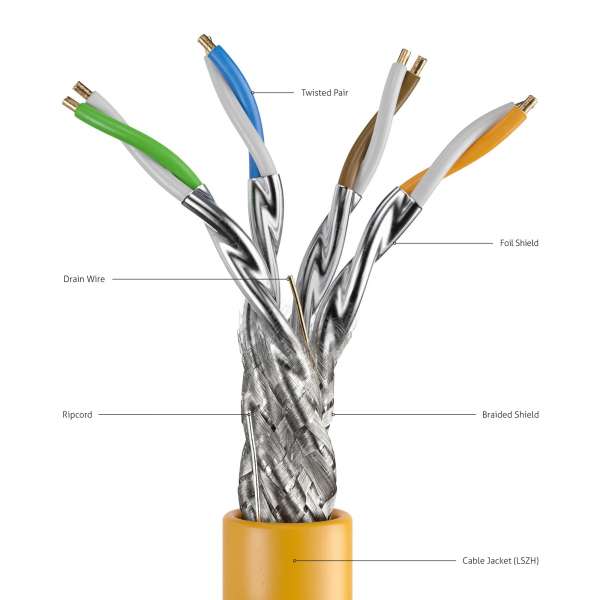

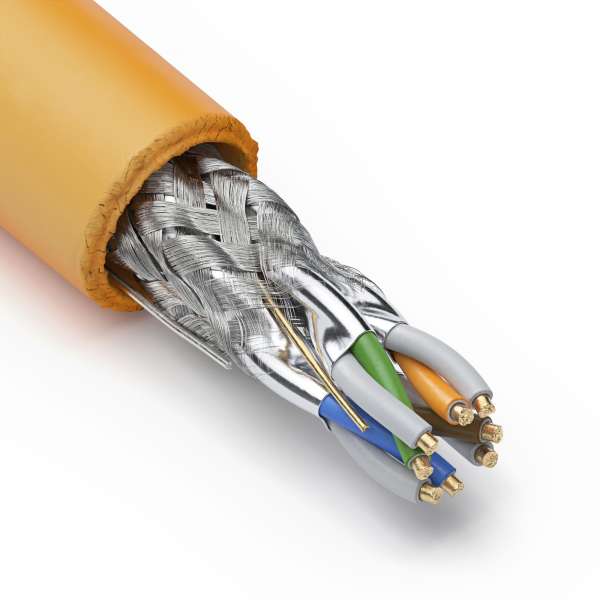

The IQ-CAT7 Ethernet installation cables of the IQ series are designed for the distribution of network signals with up to 10 Gigabit or a maximum frequency of 600MHz and thus enable IPAV (AV over IP) as well as HDBaseT infrastructures in addition to the conventional TCP/IP distribution. The network cables comply with the Cat.7 standard and feature S/FTP shielding as well as high purity solid core SBC inner conductors. Their outer diameter measures 7.6mm at AWG23.
The installation cables are unassembled on both sides, i.e. they are supplied without connectors. Thanks to the halogen-free cable sheathing (LSZH), various fire protection requirements can also be met. The cable complies with the "CPR Eca+" standard and therefore develops significantly less smoke in the event of fire than cable sheaths manufactured with halogens.
The cables are therefore perfect for installations or laying in buildings / confined spaces where fire safety requirements must be met.
With meter markings on the outer sheath it is very easy to determine the desired cable length. The cable interior is equipped with "Ripcord" filler material which allows for stripping without tools.
The cables are compliant with ISO/IEC 11801, EN50173-1, ANSI/TIA-568-C.2 & IEC60332-1-2.

The installation cables are available in lengths between 20.00 and 100.00 meters and can therefore also be used for long distances such as for AV over IP or HDBaseT transmission.

IQ Series - Installation Quality for Intelligent Quotations
No frills installation-level products at a fair price - this concept defines perhaps the smartest product line from PureLink.
IQ can be taken quite literally: A "Smart Buy" for every planner and installer, featuring products and intelligent little helpers for the integrators everyday needs.
We thought it through so that you can focus on the job at hand.
This applies to professional purchasing staff, but also to the single installation and everyday use of PureLink IQ products.
